This means the product was tested and repaired as required to meet the standards of the refurbisher, which may or may not be the original manufacturer. Any exceptions to the condition of the item outside the manufacturer’s information should be provided in the listing, up to and including warranty details.

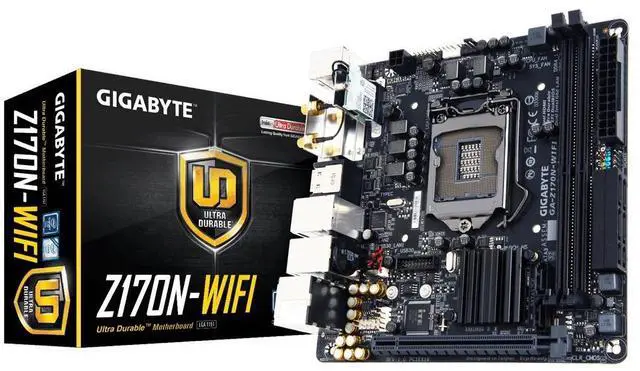

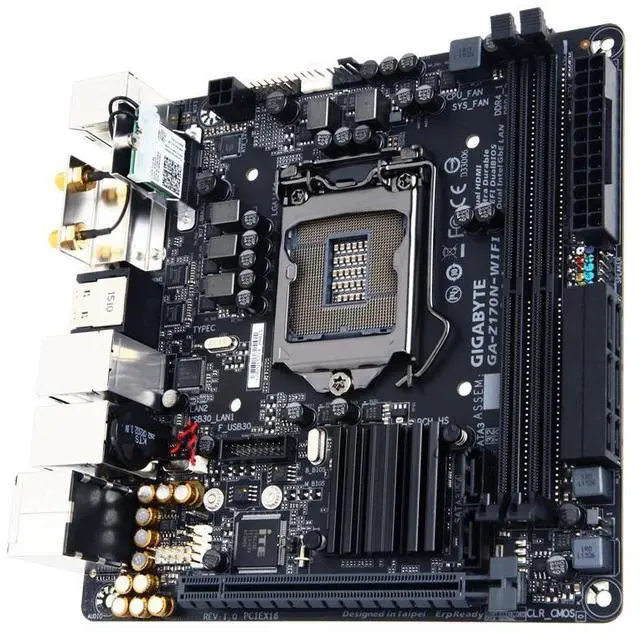

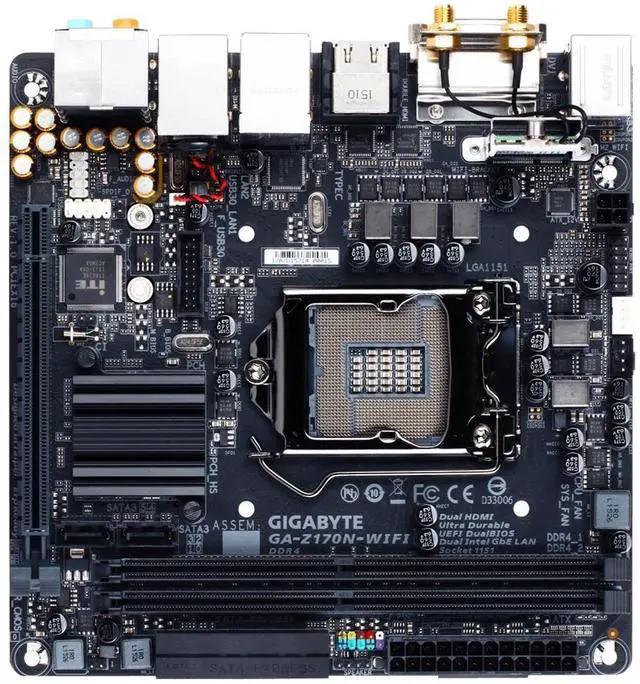

GIGABYTE GA-Z170N-WIFI (rev. 1.0) LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.0 Mini ITX Intel Motherboard
Learn more about the GIGABYTE GA-Z170N-WIFI (rev. 1.0)
Model
Brand
GIGABYTE
Model
GA-Z170N-WIFI (rev. 1.0)
Supported CPU
CPU Socket Type
LGA 1151
CPU Type
Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Chipsets
Chipset
Intel Z170
Onboard Video
Onboard Video Chipset

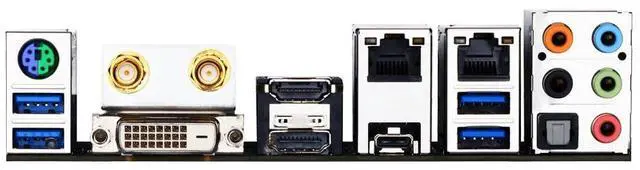

Integrated Graphics Processor - Intel HD Graphics support- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.- 2 x HDMI ports, supporting a maximum resolution of 4096x2160@24 Hz* Support for HDMI 1.4 version.- Support for up to 3 displays at the same time- Maximum shared memory of 512 MB
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Antenna Connectors
2 x SMA antenna connectors (2T2R)
Internal I/O Connectors
Onboard USB
1 x USB 3.0/2.0 header1 x USB 2.0/1.1 header
Other Connectors
1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x speaker header1 x Clear CMOS jumper1 x chassis intrusion header
Physical Spec
Form Factor
Mini ITX
Dimensions (W x L)
6.7" x 6.7"
Power Pin
24 Pin
Features
Features
I/O Controller: - iTE I/O Controller ChipH/W Monitoring: - System voltage detection- CPU/System temperature detection- CPU/System fan speed detection- CPU/System overheating warning- CPU/System fan fail warning- CPU/System fan speed control- * Whether the fan speed control function is supported will depend on the cooler you install.BIOS: - 2 x 64 Mbit flash- Use of licensed AMI UEFI BIOS- Support for DualBIOS- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features: - Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAutoGreenCloud StationEasyTuneEasy RAIDFast BootSmart TimeLockSmart KeyboardSmart BackupSystem Information ViewerUSB Blocker- Support for Q-Flash- Support for Smart Switch- Support for Xpress InstallBundle Software: - Norton Internet Security (OEM version)- Intel Smart Response Technology- Intel Wireless Display- cFosSpeedOperating System: - Support for Windows 10/8.1/7** Please download “Windows USB Installation Tool” to install Windows 7.
Packaging
Package Contents
GA-Z170N-WIFI motherboardMotherboard driver diskTwo SATA cablesUser's ManualQuick Installation GuideOne antennaI/O ShieldWireless module driver disk
Additional Information
First Listed on Newegg
May 15, 2026
