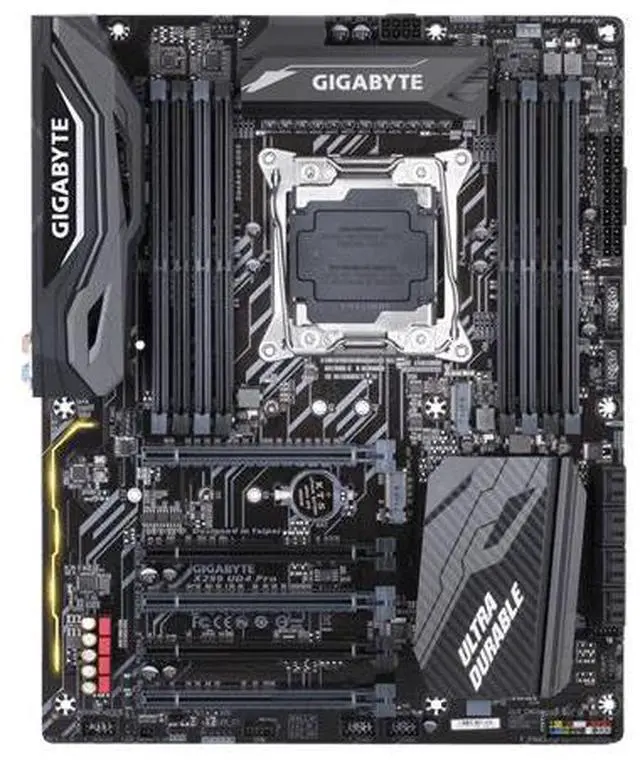

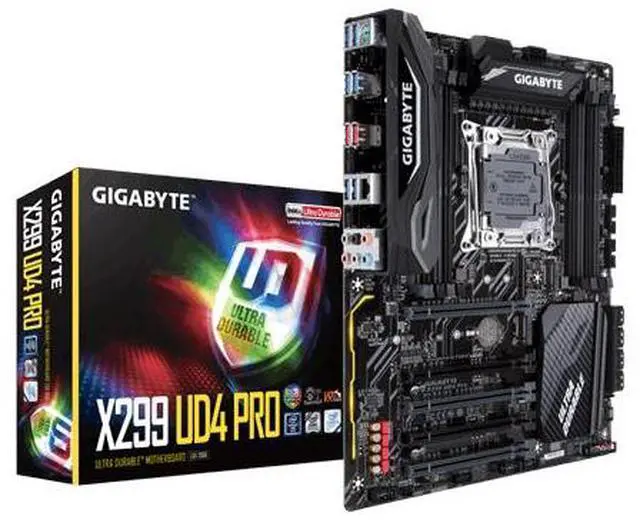

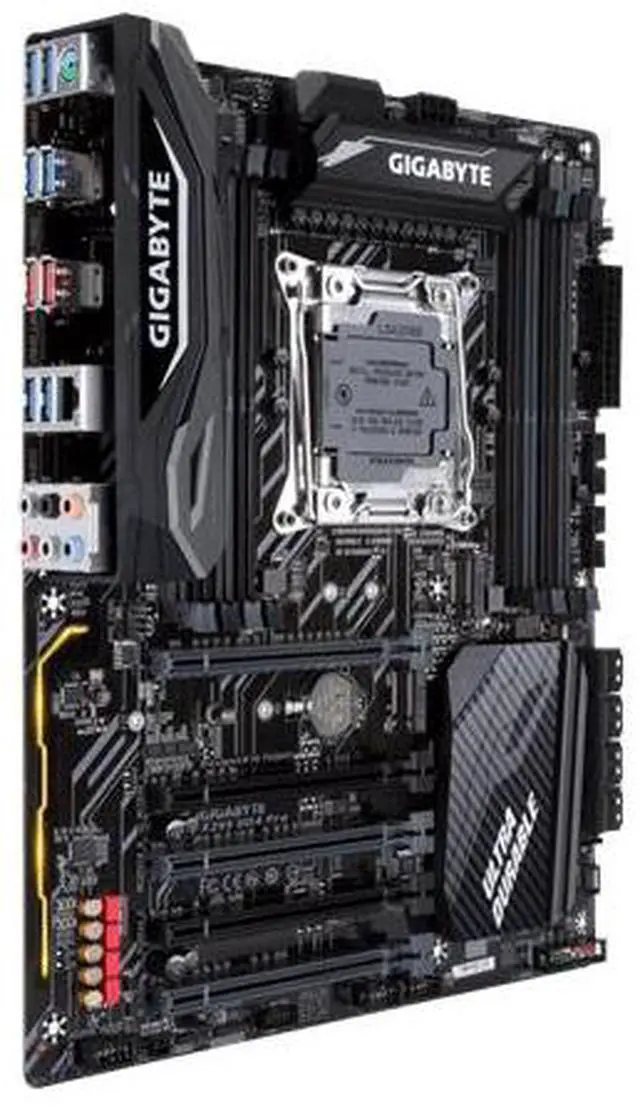

Gigabyte X299 UD4 Pro LGA2066 Motherboard PCI Express 3.0 X16 ATX DDR4 DIMM

CPU
Support for Intel® Core X series processors in the LGA2066 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information. )
Chipset
Intel® X299 Express Chipset
Memory
8 x DDR4 DIMM sockets supporting up to 256 GB of system memory.
* Supported when using a 44-lane or 28-lane CPU (6-core or above).
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.
* Supported when using a 16-lane CPU (4-core).
4 channel memory architecture.
* Supported when using a 44-lane or 28-lane CPU (6-core or above).
Dual channel memory architecture.
Supported when using a 16-lane CPU (4-core).
Support for DDR4 4400(O. C. ) / 4333(O. C. ) / 4266(O. C. ) / 4133(O. C. ) / 4000(O. C. ) / 3866(O. C. ) / 3800(O. C. ) / 3733(O. C. ) / 3666(O. C. ) / 3600(O. C. ) / 3466(O. C. ) / 3400(O. C. ) / 3333(O. C. ) / 3300(O. C. ) / 3200(O. C. ) / 3000(O. C. ) / 2800(O.

C. ) / 2666 / 2400 / 2133 MHz memory modules
Support for non-ECC Un-buffered DIMM memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information. )
Audio
Realtek® ALC1220 codec
High Definition Audio
2/4/ 5.1 / 7.1 -channel
Support for S/PDIF Out
LAN
Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard. )
* Refer to "1-6 Setting up AMD CrossFire/NVIDIA® SLI Configuration, " for the installation notices for the PCI Express x16 slots.
X299 PCIE OPTIMAL PERFORMANCE TOOL
See your optimal configuration by checking all boxes below


When using a 44 lane CPU (10-core or above):
1-Way 2-Way 3-Way
PCIEX16_1 (x16) (x16) (x16)
PCIEX16_2 (x16) (x16)
PCIEX8 (x8)
: Installed,: Not Installed.

When using a 28 lane CPU (6-core or above):
1-Way 2-Way
PCIEX16_1 (x16) (x16)
PCIEX16_2 (x8)
PCIEX8
: Installed,: Not Installed.

When using a 16 lane CPU (4-core):
1-Way 2-Way*
PCIEX16_1 (x8) (x8)
PCIEX16_2 (x4)
PCIEX8
: Installed,: Not Installed.
* Supports the CrossFire technology only.

Multi-Graphics Technology
Support for NVIDIA® Quad-GPU SLI and 3-Way (with 44-lane CPU) / 2-Way (with 44 & 28-lane CPU) NVIDIA® SLI technologies
Support for AMD Quad-GPU CrossFire and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire technologies
Storage Interface
Chipset:
1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
1 x M. 2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-9 Internal Connectors, " for the installation notices for the M. 2 and SATA connectors.
Intel® Optane Memory Ready
Intel® VROC Ready
USB
Chipset+ASMedia® USB 3.1 Gen 2 Controller:
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
Chipset:
10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
4 x USB 2.0 / 1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x 3 Amp fan/water cooling pump header
1 x digital LED strip header
1 x digital LED strip power select jumper
2 x RGB (RGBW) LED strip extension cable headers
2 x M. 2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x Intel® VROC Upgrade Key header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x USB 3.1 Gen 1 headers
2 x USB 2.0 / 1.1 headers
1 x Thunderbolt add-in card connector
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM 2.0 _S module only)
1 x temperature sensor header
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port
2 x USB 3.1 Gen 2 Type-A ports (red)
6 x USB 3.1 Gen 1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0 a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
cFosSpeed
Operating System
Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5 cm x 24.4 cm
