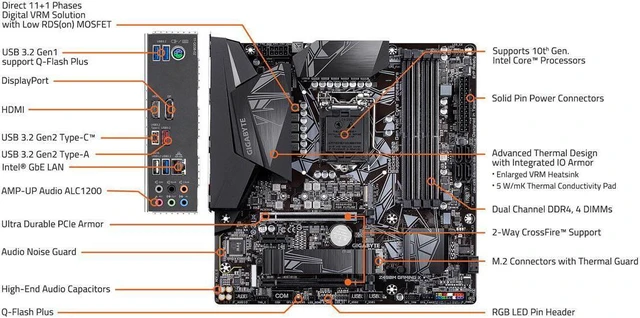

Main image of GIGABYTE Z490M GAMING X LGA 1200 Intel Z490 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 2

Alt view image 2 of 5 - GIGABYTE Z490M GAMING X LGA 1200 Intel Z490 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 2

Alt view image 3 of 5 - GIGABYTE Z490M GAMING X LGA 1200 Intel Z490 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 2

Alt view image 4 of 5 - GIGABYTE Z490M GAMING X LGA 1200 Intel Z490 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 2

Alt view image 5 of 5 - GIGABYTE Z490M GAMING X LGA 1200 Intel Z490 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 2

Shop All GIGABYTE Products | Visit C.N.E Technology Store

GIGABYTE Z490M GAMING X LGA 1200 Intel Z490 Micro-ATX Motherboard with M.2, SATA 6Gb/s, USB 3.2 Gen 2

Item #: 9SIVMRNKWT9107
Mfr. Part #: Z490M GAMING X
UNSPSC: 43201513

REFURBISHED

Be the first to review this product...

Supports 10th Gen Intel Core Series Processors
Direct 11+1 Phase Digital VRMs with DrMOS Stages
Extended MOS Heatsink VRM Cooling
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel GbE LAN
1 x M.2 Thermal Guard
AMP UP Audio ALC1200 AUDIO DAC
RGB Fusion 2.0
Smart Fan 5 Hybrid Fan Headers with smart fan functions (Fan Stop, PWM Controls, Noise Detection)
Rear - 1 x USB 3.2 Gen2 (A), 1 x USB 3.2 Gen2 (C), 4 x USB 3.2 Gen1
Front - 2 x USB 3.2 Gen1, 4 x USB 2.0
Integrated I/O Shield
Q-Flash Plus Update BIOS Without Installing CPU, Memory or GPU
Hi-Res Audio Certified, PCIe 4.0 Grade Design

Overview

Specs

Reviews

Supports 10th Gen Intel Core Series Processors
Direct 11+1 Phase Digital VRMs with DrMOS Stages
Extended MOS Heatsink VRM Cooling
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel GbE LAN
1 x M. 2 Thermal Guard
AMP UP Audio ALC1200 AUDIO DAC
RGB Fusion 2.0
Smart Fan 5 Hybrid Fan Headers with smart fan functions (Fan Stop, PWM Controls, Noise Detection)
Rear - 1 x USB 3.2 Gen2 (A), 1 x USB 3.2 Gen2 (C), 4 x USB 3.2 Gen1
Front - 2 x USB 3.2 Gen1, 4 x USB 2.0
Integrated I/O Shield
Q-Flash Plus Update BIOS Without Installing CPU, Memory or GPU
Hi-Res Audio Certified, PCIe 4.0 Grade Design

Model
Brand	GIGABYTE
Model	Z490M GAMING X

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package

Chipsets
Chipset	Intel Z490

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Support for up to 3 displays at the same time Maximum shared memory of 512MB

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	Support for DDR4 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz memory modules
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x1	1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1200
Audio Channels	2/4/5.1/7.1-channel Support for S/PDIF Out

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

Rear Panel Ports

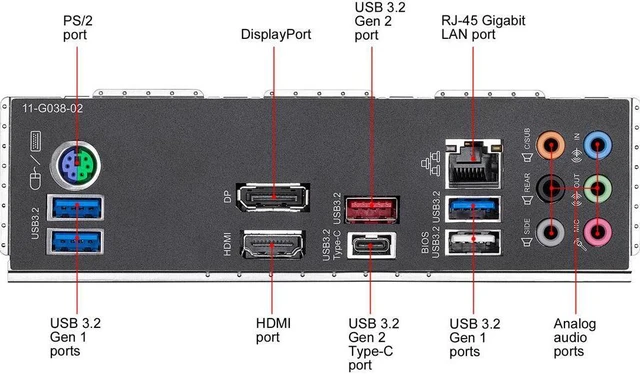

Back I/O Ports	1 x PS/2 keyboard/mouse port 4 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x RJ-45 port 6 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button

Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector

Features
Features	Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit
