HUANANZHI X99 P4T LGA 2011-3 X99 Motherboard support E5 2696 2678 2676 2673 2666 V3 DDR3 RECC Memory NVME SATA
- Item #: 9SIVFW9K4G2035
- Mfr. Part #: HNZ X99 P4T
- UNSPSC: 43201513

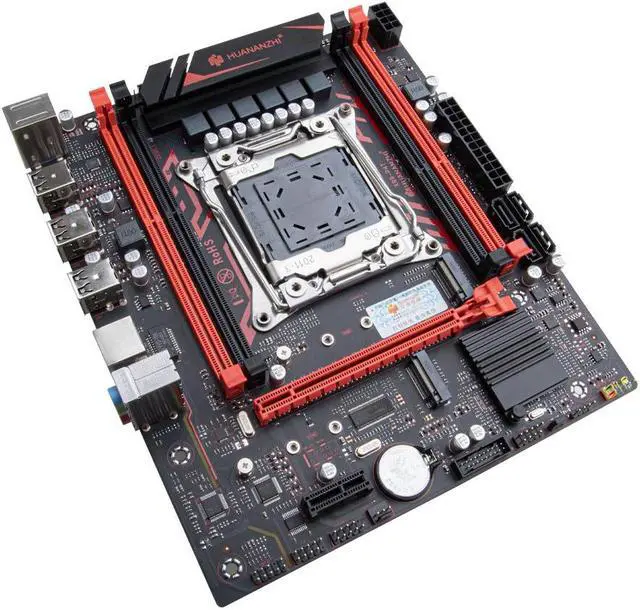

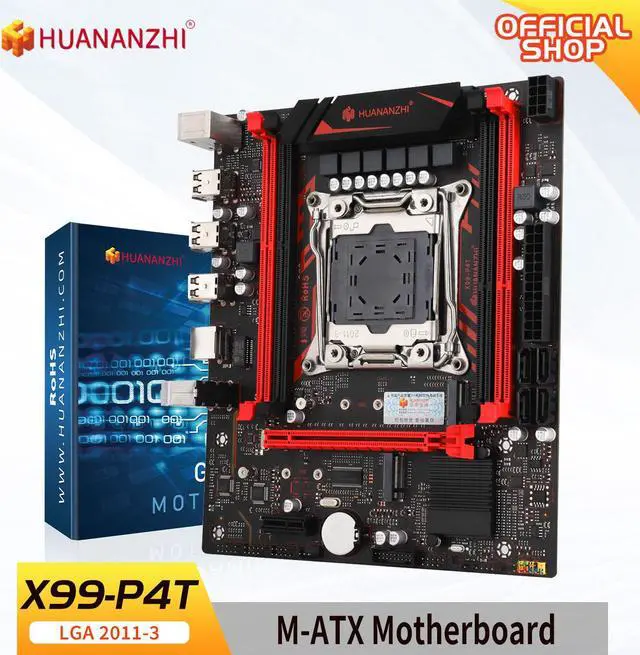

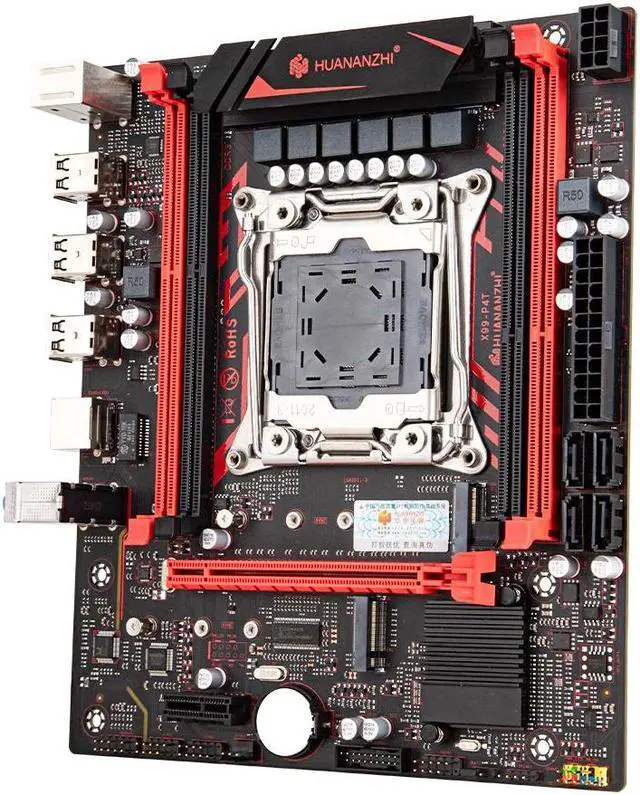

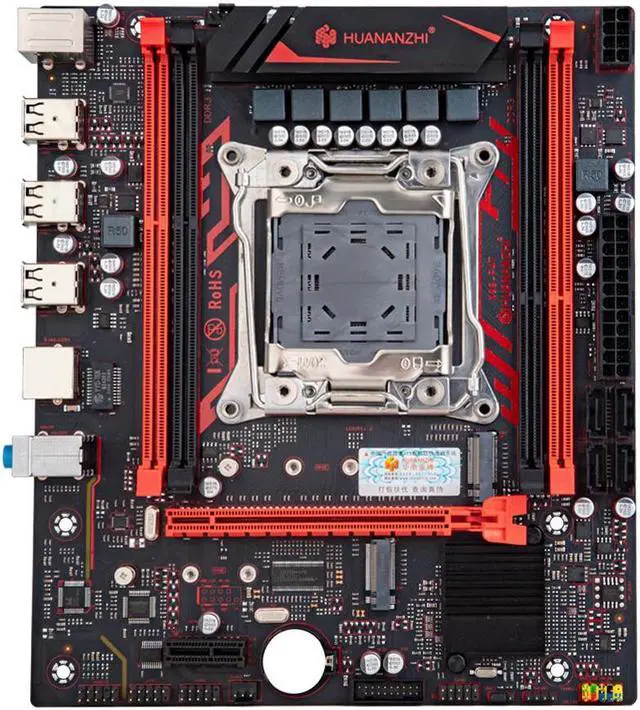

- HUANANZHI X99-P4T motherboard
- ·Support LGA2011-3 platform processor
- ·Supports dual-channel DDR3 1866/1600/1333MHz memory (depending on CPU), up to 128GB
- · 4 SATA2.0 3Gbps hard drive interfaces
- · 1 PCI Express3.0 x16 slot 1 PCI Express2.0 x1 slot
- · 2x M.2 2280 NVME PCIE X4 3.0 32GbPs
- · 6 USB2.0 480Mbps interfaces, 1 set of USB2.0 480Mbps pins
+
+
Overview
Specs
Reviews
Model: HUANANZHI P4T Motherboard
CPU Socket: Supports Intel LGA2011-3 platform processors
CPU Type: LGA 2011-3, X99-T8D / T8 / AD3 / BD3 / 8MD3 / 8M-T / QD3/ 8D3/ PD3, "T" stands for "THREE", which means the motherboard USES DDR3 memory and only supports E5 2629V3/2649V3/2669V3/2696V3/2673V3/2676V3/2678V3/2696V4, other type does not support or untested
Main chipset: P55/H55... Etc chipset shipped randomly
Main chipset: shipped randomly
Memory Socket: 4*DDR3 memory socket, Maximum Memory Capacity 128G
Memory Standard: Support Daul channel DDR3 1866/1600/1333MHz
SATA Inderface: 4 *SATA 2.0 3Gb/s interface
Extended Inderface: 2*M. 2 2280 NVME PCIE X4 3.0 32Gb/s; 6*USB 2.0 (480Mbps); 1 PS/2 keyboard and mouse universal interface, 1*network interface; 1*3-hole audio interface
Front panel interface: 1 set of USB 2.0 480Mbps pins, 1 set of USB 3.0 pins for USB 2.0 speed 480Mbps, 1 set of COM pins, 1 set of front audio pins, 1 set of CMOS jumper, 1 set of Debug pins, 1 set of buzzer pins, 1 set of power-on/restart pins
Expansion Slots: 1*PCI Express 3.0 x16; 1*PCI Express 2.0 x1
Soud Track: Realtek High Definition Audio
Network interface: Gigabit Ethernet
Power interface: 24pin+8pin
Fan interface: 1 *CPU_FAN + 1* SYS_FAN
PCB layer: 4 layer PCB, 6Phases power supply
Dimension: 215*185MM M-ATX
CPU Socket: Supports Intel LGA2011-3 platform processors
CPU Type: LGA 2011-3, X99-T8D / T8 / AD3 / BD3 / 8MD3 / 8M-T / QD3/ 8D3/ PD3, "T" stands for "THREE", which means the motherboard USES DDR3 memory and only supports E5 2629V3/2649V3/2669V3/2696V3/2673V3/2676V3/2678V3/2696V4, other type does not support or untested
Main chipset: P55/H55... Etc chipset shipped randomly
Main chipset: shipped randomly
Memory Socket: 4*DDR3 memory socket, Maximum Memory Capacity 128G
Memory Standard: Support Daul channel DDR3 1866/1600/1333MHz
SATA Inderface: 4 *SATA 2.0 3Gb/s interface
Extended Inderface: 2*M. 2 2280 NVME PCIE X4 3.0 32Gb/s; 6*USB 2.0 (480Mbps); 1 PS/2 keyboard and mouse universal interface, 1*network interface; 1*3-hole audio interface
Front panel interface: 1 set of USB 2.0 480Mbps pins, 1 set of USB 3.0 pins for USB 2.0 speed 480Mbps, 1 set of COM pins, 1 set of front audio pins, 1 set of CMOS jumper, 1 set of Debug pins, 1 set of buzzer pins, 1 set of power-on/restart pins
Expansion Slots: 1*PCI Express 3.0 x16; 1*PCI Express 2.0 x1
Soud Track: Realtek High Definition Audio
Network interface: Gigabit Ethernet
Power interface: 24pin+8pin
Fan interface: 1 *CPU_FAN + 1* SYS_FAN
PCB layer: 4 layer PCB, 6Phases power supply
Dimension: 215*185MM M-ATX
