16MP USB Camera Module Wide Angle Fisheye PC Camera for Computer & Rasp Pi | Mini UVC USB2.0 Webcam, IMX298 USB Security Camera,Ultra HD Lightburn Camera for Laser Medical Imaging, Scientific Research
- Item #: 9SIVV5XM931351

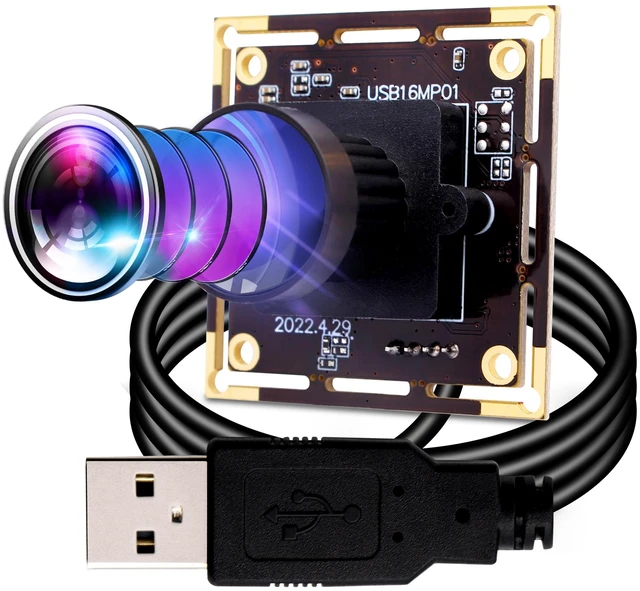

- High Quality Imaging: Model:IE-USB16MP01-L170 IEights 16mp usb camera module adopts 16MP IMX298 sensor for sharp image and accurate color reproduction,still picture resolution: 4656x3496 Max.

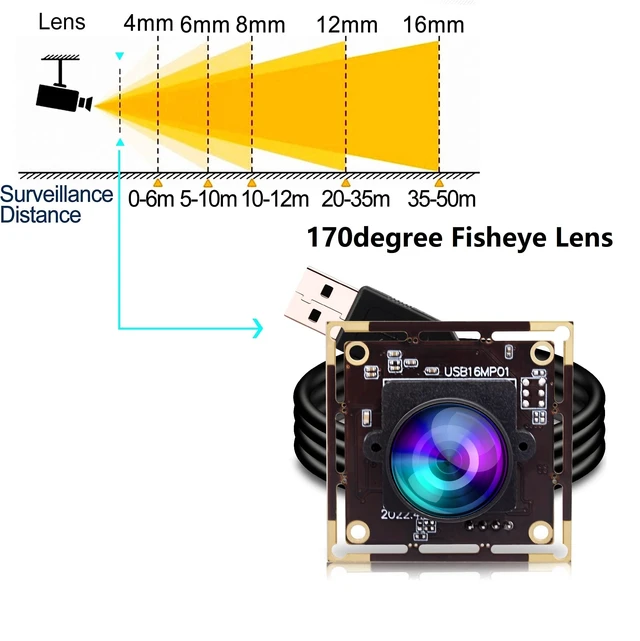

- Wide Viewing Angle: Mounted a High quality 1.95mm lens, provides a wilder Field of View. Horizontal Angle:139°
- Super small and Mini Size, compact lightburn camera for all kinds of machine vision.
- Plug&Play: UVC compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed.
- Applications: 16mp usb camera is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, Bar code QR code identification scan, or other machine vision applications which demand high resolution.

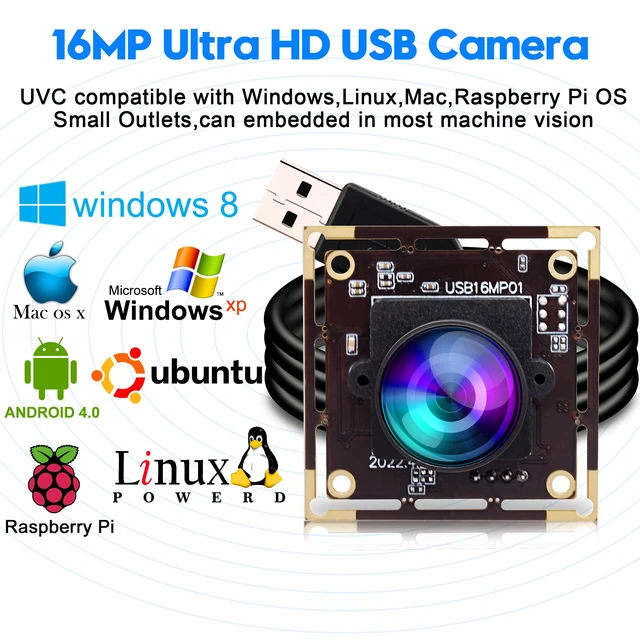

- Support OS"WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above"
- Picture format MJPEG or YUY2 optional, USB powered Low power consumption, small outline for embedded application
- Frame Rates: MJPG 10fps@4656x3496/4160x3120/3264x2448/2592x1944; 30fps@2320x1744/1080P/720; YUY2 10fps@960P/720P/800x600
+
+
Overview
Specs
Reviews
Model IE-USB16MP01-L170
Sensor IMX298
Sensor Size 1/2.8inch
Pixel Size 1.12um
Image Area 6.4mm x 5.3mm
Max. Resolution 4656(H) X 3496(V) 16 Megapixel
Compression Format MJPEG / YUY2 (YUYV)
Resolution & Frame Rate
4656 x 3496 MJPEG@10fps YUY2 @ 1fps 4208 x 3120MJPEG@10fps YUY2 @ 1fps
4160 x 3120 MJPEG@10fps YUY2 @ 1fps 4000 x 3000MJPEG@10fps YUY2 @ 1fps
3840 x 2160 MJPEG@10fps YUY2 @ 1fps 3264 x 2448MJPEG@10fps YUY2 @ 1fps
2592 x 1944 MJPEG@10fps YUY2 @ 1fps
2048 x 1536 MJPEG@30fps YUY2 @ 1fps
1600 x 1200 MJPEG@30fps YUY2 @ 5fps
1280 x 720 MJPEG@30fps YUY2 @ 10fps
800 x 600 MJPEG@30fps YUY2 @ 15fps
2320 x 1744MJPEG@30fps YUY2 @ 1fps
1920 x 1080MJPEG@30fps YUY2 @ 5fps
1280 x 960MJPEG@30fps YUY2 @ 10fps
1024 x 768MJPEG@30fps YUY2 @ 10fps
640 x 480MJPEG@30fps YUY2 @ 30fps
Min Illumination 0.5 Lux
Shutter Type Electronic Rolling Shutter / Frame Exposure
Connecting Port Type USB2.0 High Speed
Free Drive Protocol USB Video Class (UVC)
AEC Support/AWB Support /AGC Support
Adjustable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance,
Backlight Contrast, Exposure
Lens ParameterStandard No Distortion L75 Lens, FOV about 76 degree.
Power Supply USB BUS POWER 4P-2.0mm Socket
Operating Voltage DC5V
Working Current 150mA~240mA
Working Temperature -10~70
Storage Temperature -20~85
Board Size /Weight 38X38mm (Compatible 32X32mm) / about 30g
Cable Standard 1m
Operating System Request
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above Linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
