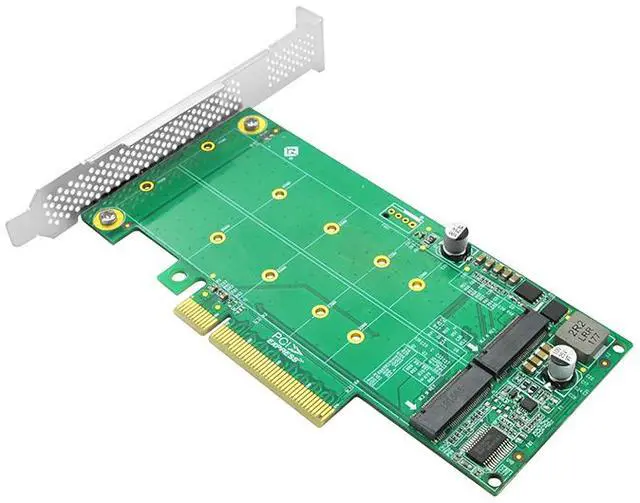

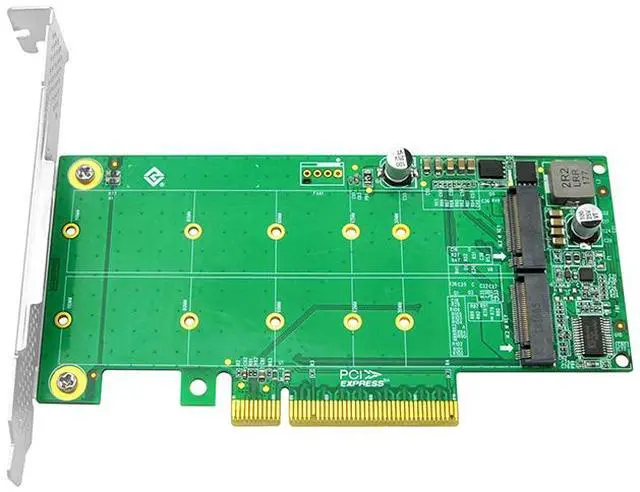

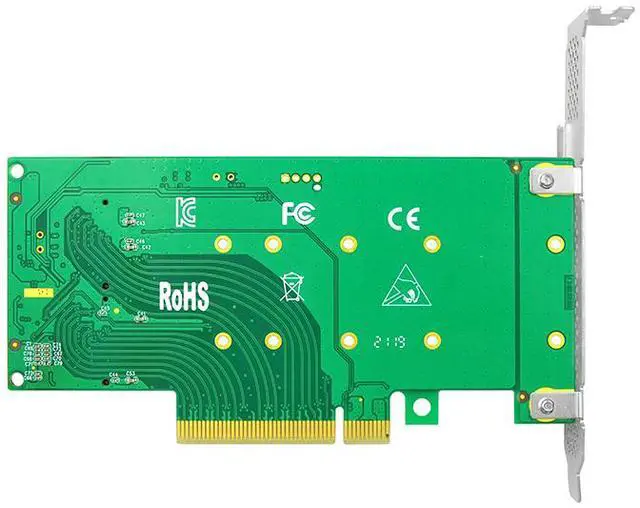

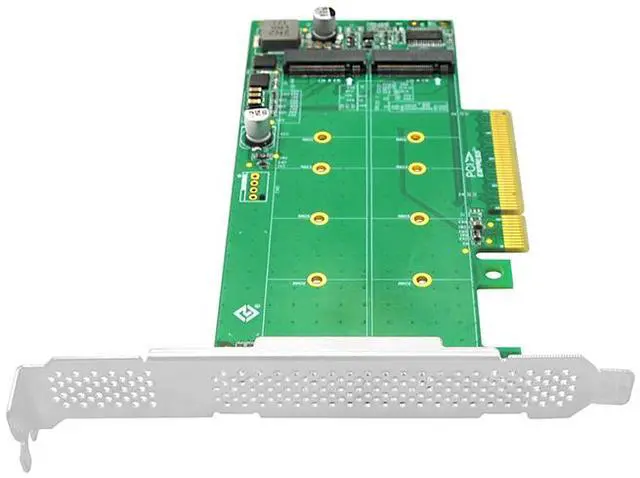

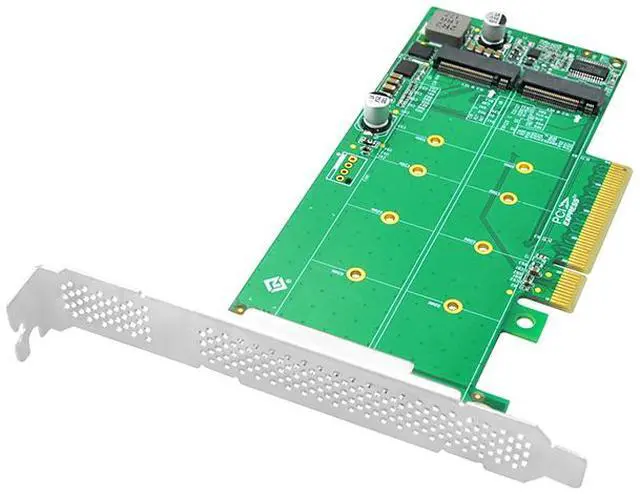

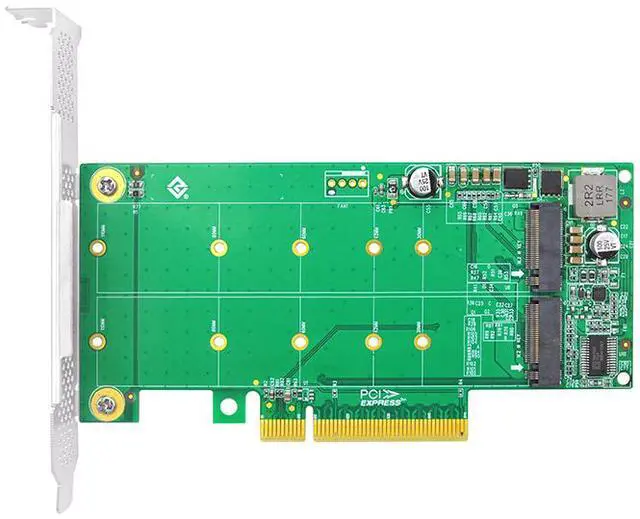

Linkreal Dual PCI Express 3.0 x8 M.2 M Key NVMe SSD Adapter Expansion Card Supports PCIe M.2 NVMe SSD in size 2230 2242 2260 2280 and 22110mm with Heat Sink for Servers
- Item #: 9SIV35BBDE3333
- Mfr. Part #: LRNV95N8
- Product Model:LRNV95N8
- Product Name: 2 Port PCIe 3.0 x8 to M.2 NVMe Adapter
- Interface Type:2*M.2 Connectors
- Support Equipment:2*M.2 NVMe SSD for 2230, 2242, 2260,2280 and 22110mm
- Host Bus Type:PCIe 3.0 x8
- Ps. Motherboards and BIOS without bifurcation support can only recognize one module.
+
+
Overview
Specs
Reviews
LRNV95N8 connects PCIe 3.0 to M. 2 M key connector. This card requires SPLIT PCIE on the motherboard to support two M. 2 NVMe hard drives, and BIOS supports PCIe Slot bifurcation.
Parameter Model: LRNV95N8 Number of
Drives: 2 internal
Bus Type: PCI Express
Drive Connector: 2- M. 2 (PCIe, M-Key, NGFF)
Host Connector: PCI Express x8
Dimension: 69mm*105mm
Product Weight: 28g
Humidity: 15% ~ 90%
Operating Temperature: 5°C to 50°C (41°F to 122°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Warranty: 2 Years WHAT'S IN THE BOX 1 - M. 2 PCIe SSD Adapter 1 - low-profile bracket 1 - full-height bracket (installed) 2 - Screws&Nuts for ssd 1 -
Warranty Card After-sale Service: Supported by a Linkreal 2-year warranty, this PCIe to M. 2 NVMe SSD adapter has free lifetime technical support
Parameter Model: LRNV95N8 Number of
Drives: 2 internal
Bus Type: PCI Express
Drive Connector: 2- M. 2 (PCIe, M-Key, NGFF)
Host Connector: PCI Express x8
Dimension: 69mm*105mm
Product Weight: 28g
Humidity: 15% ~ 90%
Operating Temperature: 5°C to 50°C (41°F to 122°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Warranty: 2 Years WHAT'S IN THE BOX 1 - M. 2 PCIe SSD Adapter 1 - low-profile bracket 1 - full-height bracket (installed) 2 - Screws&Nuts for ssd 1 -
Warranty Card After-sale Service: Supported by a Linkreal 2-year warranty, this PCIe to M. 2 NVMe SSD adapter has free lifetime technical support
