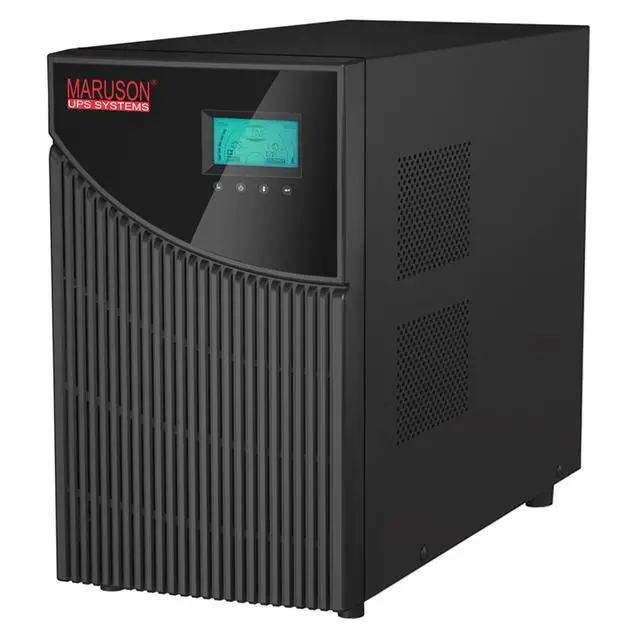

MARUSON TAC-LV3K 3000VA 2700W Online UPS System, Sine Wave, 6 Outlets + Terminal, 120V, L5-30P, cTUVus

Specifications & Features:


• Capacity: 3000VA / 2700W
• Topology: Online double-conversion
• Automatic Voltage Regulation (AVR): Maintains constant voltage by actively correcting minor voltage and power fluctuations


INPUT

• Voltage: 120Vac
• Voltage Range: 55 - 150Vac
• Frequency: 60 / 50Hz +/- 4Hz
• THDv for Linear-Load: 4%
• THDv for Non-Linear Load: 8%
• Plug: NEMA L5-30P


OUTPUT

• Voltage:100 / 110 / 115 / 120 / 127Vac (user set)
• Frequency: 60 / 50Hz
• Waveform (on Battery Mode): Pure sine wave

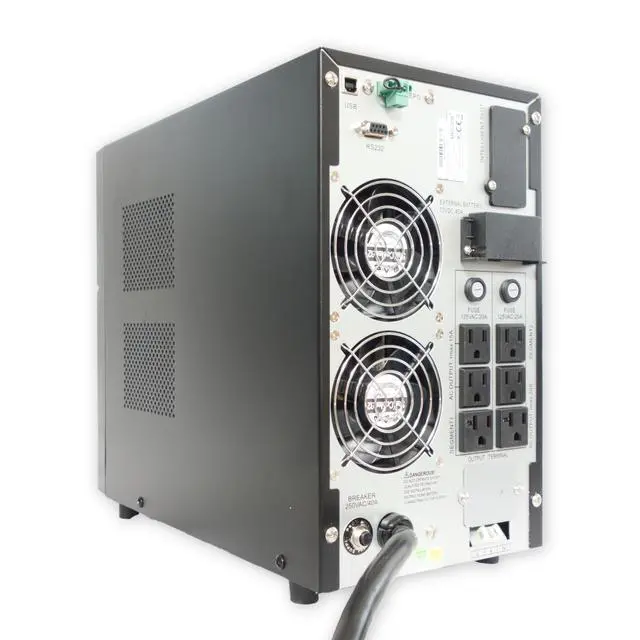

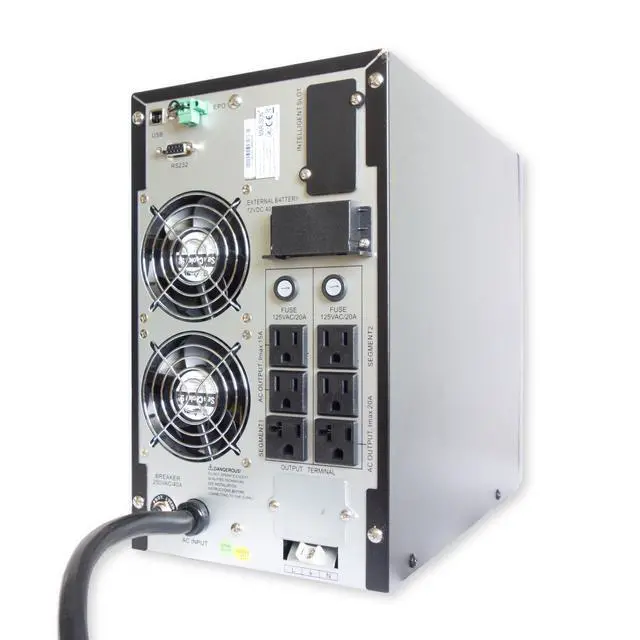

• OUTLETS:(4) NEMA 5-15R; (2) NEMA 5-15/20R; (1) terminal block


EFFICIENCY
• Line Mode: >89%
• BAT Mode: >89%
• ECO Mode: >95% at fully load with battery fully charged


BATTERY

• Battery: (6) 12V / 7Ah SLA
• Expandable Backup Time: Yes with add-on TAC-LV1KBB
• Charger: 1A (max.)


TRANSFER TIME

• Battery < Line: 0ms
• Inverter < Bypass: <4ms
• Eco Bypass: <10ms (only if ECO Mode is enabled)


ADDITIONAL FEATURES

• Emergency Power Off (EPO): Yes
• Advanced Battery Management (ABM): Prolongs the lifespan of your battery and monitors battery performance to provide a more reliable battery system
• RJ11/45 (1-in/1-out): Suppresses lines surges for network and phone lines
• LCD Screen:Offers real-time status information
• Power Management Software: Monitors your computer via USB connection with option to automatically shut down during a power disruption when you are not in front of your computer to do so
• Voltage Regulation: Boost & buck
• Protection: Discharge, overcharge, overload, surge suppression
• EMI / RFI Protection: Yes
• Auto Restart During AC Recovery: Yes
• Audible Alarm: Yes (option to enable or disable)


COMMUNICATION

• Softare: Via USB or RS232
• Intelligent Slot: Yes, for optional SNMP or AS400 relay card (not included)


PHYSICAL

• Form Factor: Tower
• Dimensions: 14.9 x 7.4 x 12.4 in / 383 x 190 x 318 mm
• Product Weight:59.5 lb / 27.0 kg
• Operating Temperature: 32°F up to 104°F (0°C up to 40°C)
• Humidity: 20% - 80% (non-condensing)
• cTUVus certified for indoor use in USA and Canada


LIMITED WARRANTIES
• Equipment: 2-year equipment and $25,000 connected equipment
• Battery: 2-year battery

Typical Applications:

• Servers & high performance computers
• ATMs & kiosks
• Office electronics
• Networking & telecommunication equipment
• Alarm systems
• Surveillance equipment

The Tacoma series UPS delivers online power quality and scalable battery runtimes for servers, voice and data networks, storage systems and other IT equipment. Featuring online double-conversion design and zero transfer time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP remote management capability enables remote management and control of the system through standard web browser. This UPS series cuts energy costs while significantly extending battery service life with ABM technology and it also has a bright LCD user interface to simplify monitoring.
