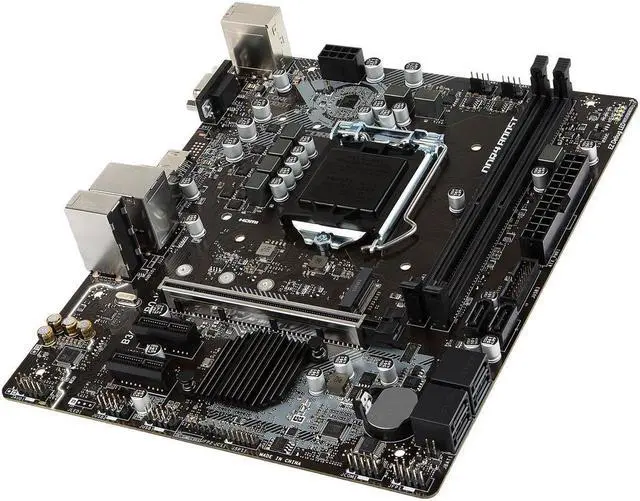

Main image of MSI PRO B360M PRO-VH LGA 1151 (300 Series) Intel B360 SATA 6Gb/s Micro ATX Intel Motherboard

Alt view image 2 of 5 - MSI PRO B360M PRO-VH LGA 1151 (300 Series) Intel B360 SATA 6Gb/s Micro ATX Intel Motherboard

Alt view image 3 of 5 - MSI PRO B360M PRO-VH LGA 1151 (300 Series) Intel B360 SATA 6Gb/s Micro ATX Intel Motherboard

Alt view image 4 of 5 - MSI PRO B360M PRO-VH LGA 1151 (300 Series) Intel B360 SATA 6Gb/s Micro ATX Intel Motherboard

Alt view image 5 of 5 - MSI PRO B360M PRO-VH LGA 1151 (300 Series) Intel B360 SATA 6Gb/s Micro ATX Intel Motherboard

Shop All MSI Products | Visit C.N.E Technology Store

MSI PRO B360M PRO-VH LGA 1151 (300 Series) Intel B360 SATA 6Gb/s Micro ATX Intel Motherboard

Item #: 9SIVMRNKWT9106
Mfr. Part #: B360M PRO-VH
UNSPSC: 43201513

REFURBISHED

Be the first to review this product...

Intel B360
Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Supports DDR4 2666/ 2400/ 2133 MHz

Overview

Specs

Reviews

The item is in very good condition. The BIOS has been upgraded to the latest version. Tested, only the motherboard and I/O shield are included in the package. please leave a message if you need screws.

Model
Brand	MSI
Series	PRO
Model	B360M PRO-VH

Supported CPU
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket * Not backward compatible with older generation of LGA 1151 CPUs

Chipsets
Chipset	Intel B360

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1 x HDMI port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz * No Display support when using the Processor model with suffix "F"

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	Supports DDR4 2666/ 2400/ 2133 MHz
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x1	2 x PCIe 3.0 x1 slots

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s * The SATA2 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
M.2	1 x M.2 slot (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/2260/2280 storage devices
Intel Optane Ready	Yes * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x Clear CMOS jumper 2 x Front panel connectors 1 x Serial port connector 1 x Chassis Intrusion connector 1 x Front panel audio connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	8.9" x 7.3"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket. Supports DDR4 Memory, up to 2666 MHz. Audio Boost: Reward your ears with studio grade sound quality. Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. EZ Debug LED: Easiest way to troubleshoot. PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength. X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
