Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
Intel Core i7/i9
Supports up to DDR4 2933 MHz
Intel Core i5 and below
Supports up to DDR4 2666 MHz
+
+
Overview
Specs
Reviews
Intel B460 Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket Intel Core i7/i9 Supports up to DDR4 2933 MHz Intel Core i5 and below Supports up to DDR4 2666 MHz

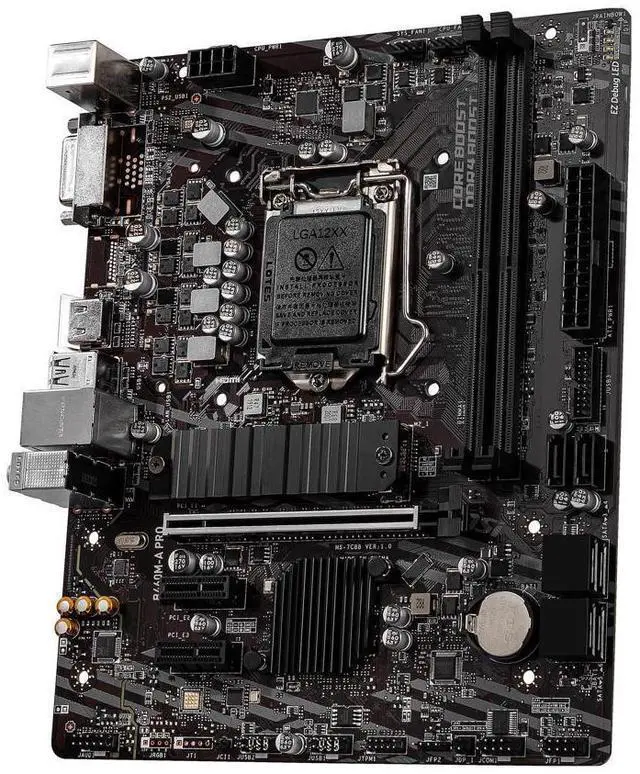

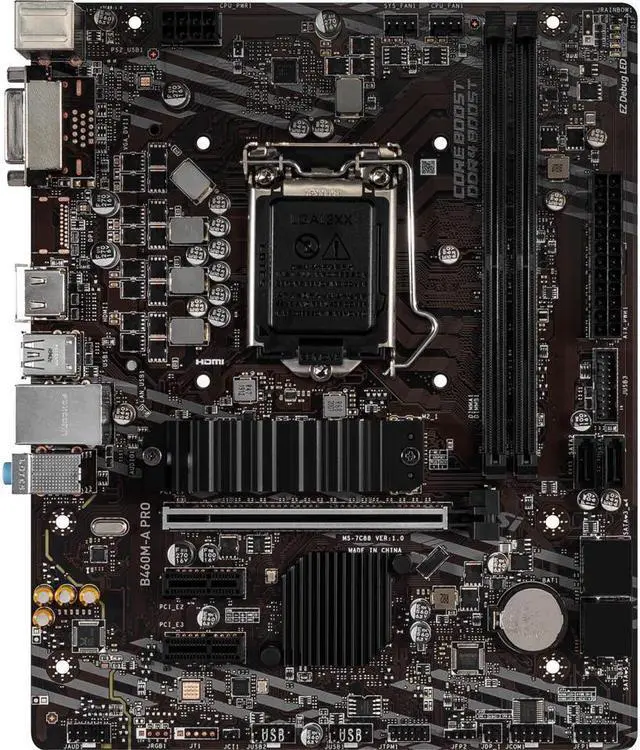

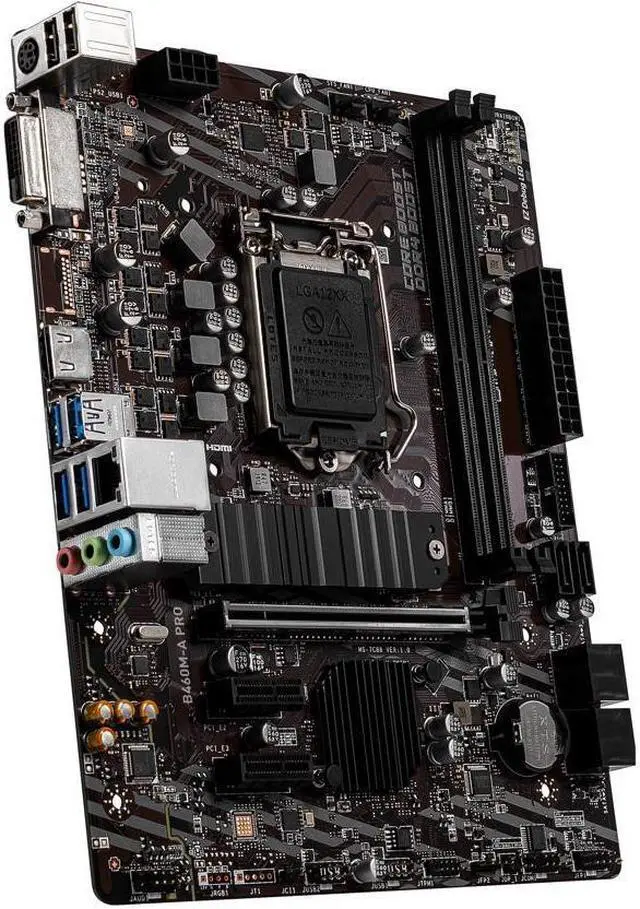

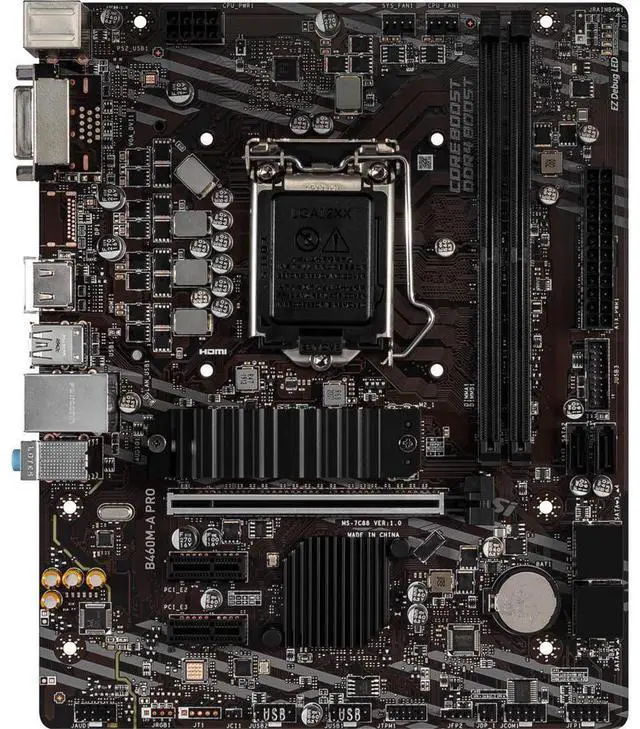

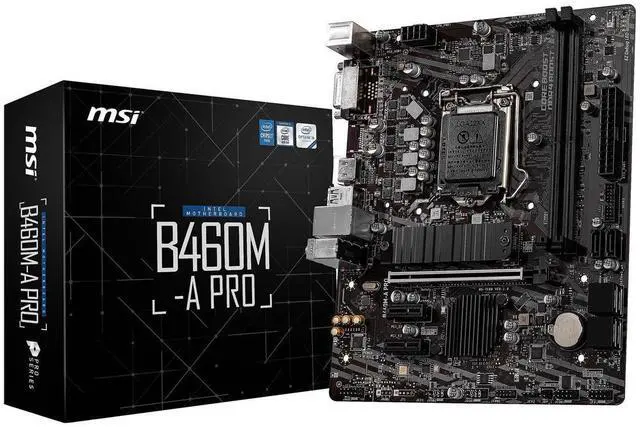

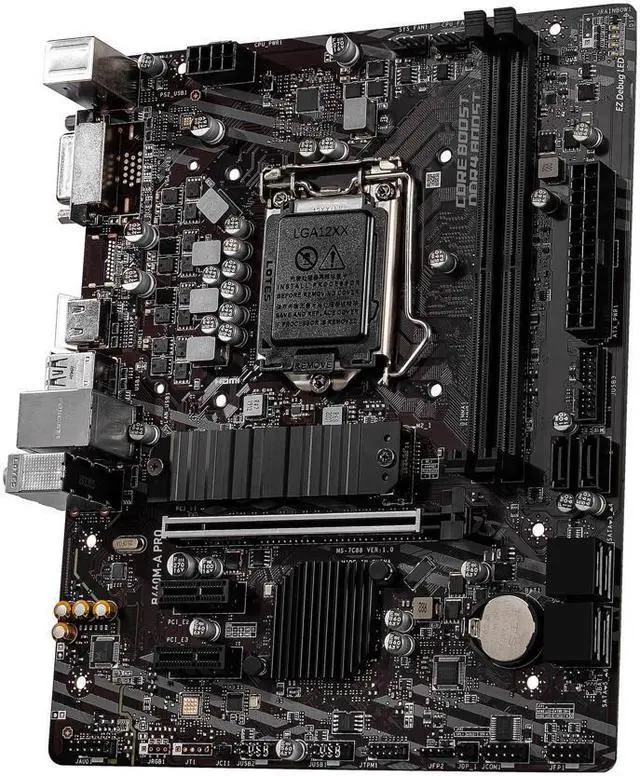

Learn more about the MSI B460M-A PRO
Model
Brand
MSI
Series
PRO
Model
B460M-A PRO
Supported CPU
CPU Socket Type

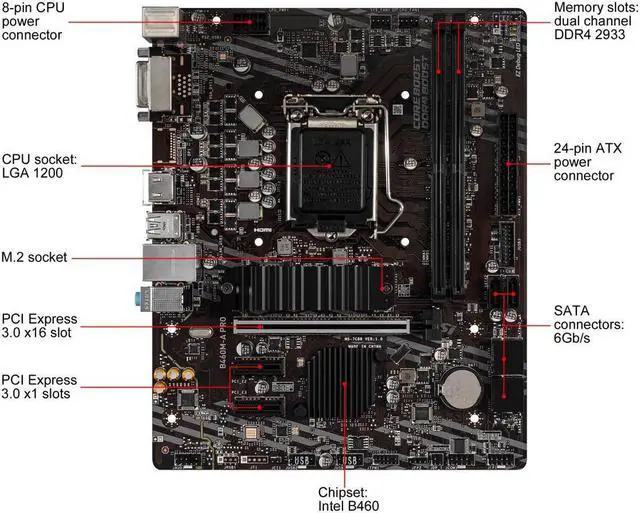

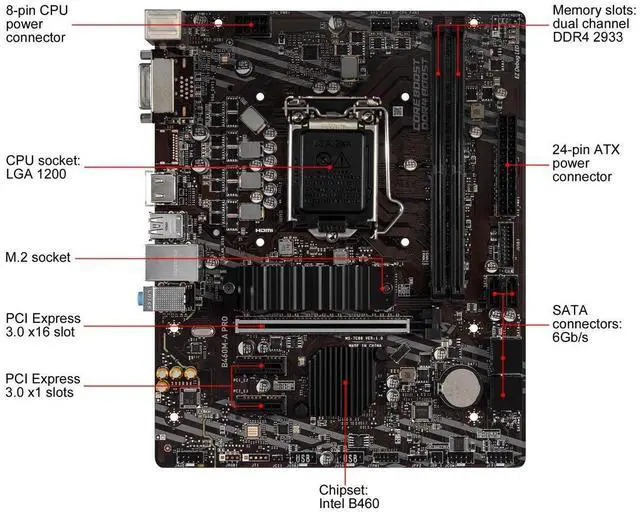

LGA 1200
CPU Type
Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket1 2
1 Please go to www.intel.com for more compatibility information. 2 Onboard graphics output are disabled when using F SKU processors.
Chipsets
Chipset
Intel B460
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic:

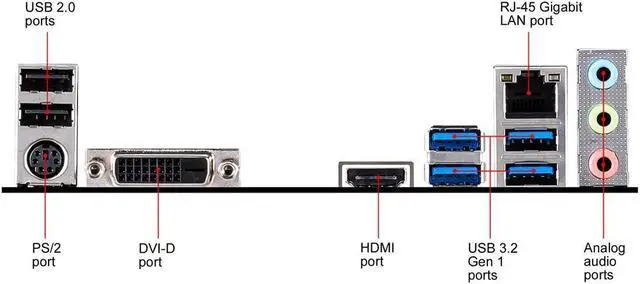

1 x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
* Maximum shared memory is 1GB
Memory
Number of Memory Slots
2x288pin (DDR4)
Memory Standard
Intel Core i7/i9 Supports up to DDR4 2933 MHz
Intel Core i5 and below Supports up to DDR4 2666 MHz
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCI Express 3.0 x16
PCI Express x1
2 x PCIe 3.0 x1 slots
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s
M.2
1 x M.2 slot (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices1 1 SATA2 will be unavailable when installing M.2 SATA SSD in the M.2 slot.
Intel Optane Ready
Intel Optane Memory Ready2 2 Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC892
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Realtek 8111H
Max LAN Speed
1Gbps

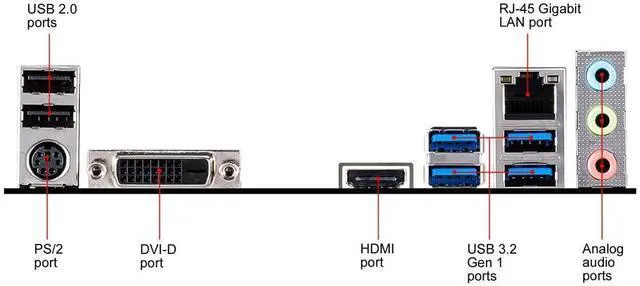

Internal I/O Connectors
Onboard USB
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
Other Connectors
1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Serial port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 4 x EZ Debug LED
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.3" x 7.6"
Power Pin
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Features
Features
Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 2933(Max) MHz
Core Boost: With premium layout and digital power design to support more cores and provide better performance
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Additional Information
First Listed on Newegg
May 14, 2026
