Supports 10th Gen Intel Core and Pentium Gold / Celeron processors
Supports 1R 2933/ 2666/ 2133 MHz
1DPC 1R Max speed up to 5000+ MHz
1DPC 2R Max speed up to 4600+ MHz
+
+
Overview
Specs
Reviews
Similar to brand new, complete accessories, quality guaranteed.

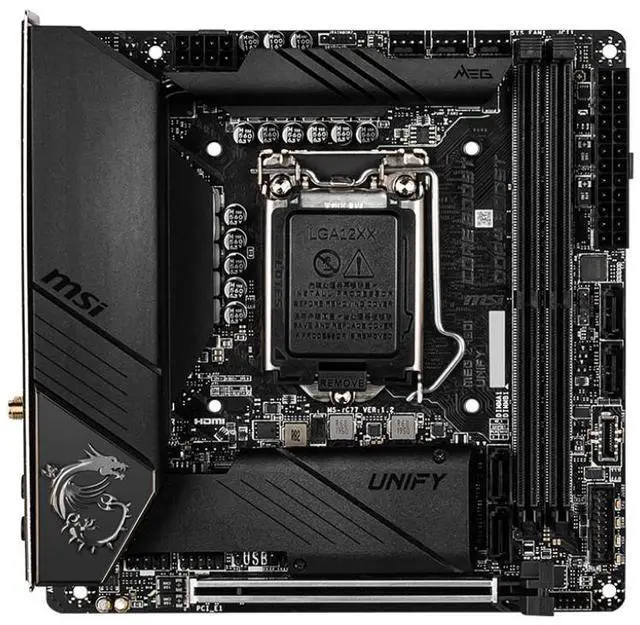

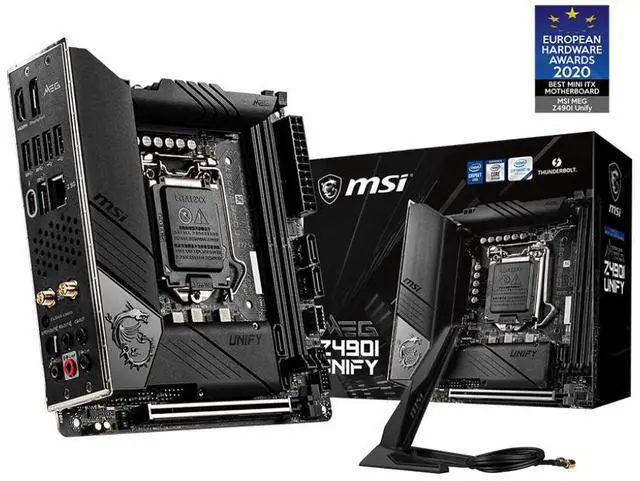

Learn more about the MSI MEG Z490I UNIFY
Model
Brand
MSI
Model
MEG Z490I UNIFY
Supported CPU
CPU Socket Type
LGA 1200
CPU Type
Supports 10th Gen Intel Core and Pentium Gold / Celeron processors
Chipsets
Chipset
Intel Z490
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic: 1 x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz 1 x HDMI port, supports a maximum resolution of 4096x2160 @30Hz Intel JHL7540 Thunderbolt 3 Controller 1 x Thunderbolt 3 [Type-C] port on the back panel Supports Thunderbolt 3 with a maximum resolution of 3840x2160 @60Hz or DisplayPort 1.4 with a maximum resolution of 4096x2304 @60Hz Maximum shared memory is 1GB
Memory
Number of Memory Slots
2x288pin (DDR4)
Memory Standard
Supports 1R 2933/ 2666/ 2133 MHz *
1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4600+ MHz
* Please refer www.msi.com for more information on compatible memory.
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCI Express 3.0 x16
Storage Devices
Serial ATA (SATA)
4 x SATA 6Gb/s ports 1 1. The SATA2 will be unavailable when installing M.2 SATA device into M2_1 slot.
M.2
2 x M.2 slots [Key M]: M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devices 1 M2_2 supports up to PCIe 3.0 x4, 2280 storage devices Intel Optane Memory Ready 2 Supports Intel Smart Response Technology for Intel Core processors
1. The SATA2 will be unavailable when installing M.2 SATA device into M2_1 slot. 2. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Intel Optane Ready
Yes
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC1220
Audio Channels
7.1-Channel High Definition Audio Supports S/PDIF output
Onboard LAN
LAN Chipset
Realtek RTL8125B
Max LAN Speed
2.5Gbps
Wireless LAN
Intel AX201 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz/5GHz [160MHz] up to 2.4Gbps Supports 802.11ac WiFi 6 pre-certified
Bluetooth
Supports Bluetooth 5.1, FIPS, FISMA
Internal I/O Connectors
Onboard USB
1 x USB 3.2 Gen2 10Gbps Type-C port 1 x USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports] 1 x USB 2.0 connector [supports additional 2 USB 2.0 ports]
Other Connectors
1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 2 x 3-pin RAINBOW LED connectors 1 x TPM module connector
Software Feature
Windows 11
Supported
Physical Spec
Form Factor
Mini ITX
LED Lighting
RGB
Dimensions (W x L)
6.7" x 6.7"
Power Pin
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Features
Features
Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 5000(OC) MHz
Ready 4 the Future: Support Lightning Gen 4 Solution for the future
Thunderbolt 3 ports: Experience Thunderbolt 3 with unprecedented interface bandwidth speeds up to 40Gbp and support for up to six daisy-chained devices
Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors
Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp
Latest Network Solution: Onboard 2.5G LAN and latest Wi-Fi 6 solution deliver the best online experience without lag
Twin Turbo M.2 with Shield Frozr: Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32Gb/s for the latest SSDs
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
