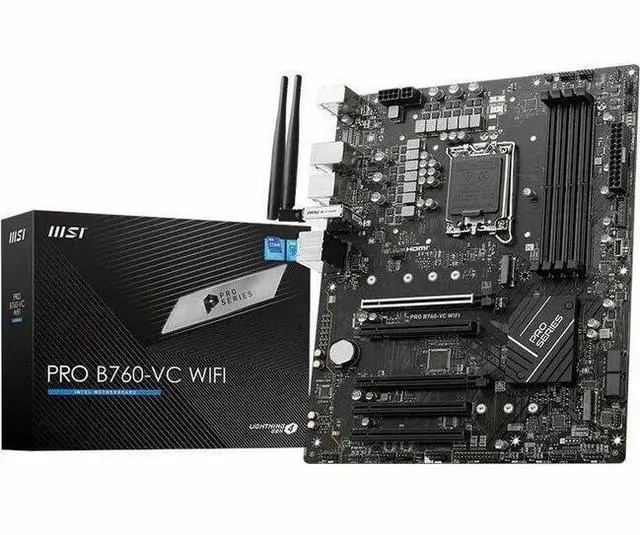

Main image of MSI PRO B760-VC WIFI GEN5 BULK LGA 1700 Intel B760 ATX Motherboard

Alt view image 2 of 2 - MSI PRO B760-VC WIFI GEN5 BULK LGA 1700 Intel B760 ATX Motherboard

Shop All MSI Products | Visit Antonline Store

MSI PRO B760-VC WIFI GEN5 BULK LGA 1700 Intel B760 ATX Motherboard

Be the first to review this product...

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Overview

Specs

Reviews

PRO B760 VC WIFI GEN5 BULK

Model
Brand	MSI
Model	PRO B760-VC WIFI GEN5 BULK

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Memory Support DDR5 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Max. overclocking frequency: - 1DPC 1R Max speed up to 7000+ MHz - 1DPC 2R Max speed up to 6400+ MHz - 2DPC 1R Max speed up to 6000+ MHz - 2DPC 2R Max speed up to 5600+ MHz
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory

Expansion Slots
PCI Express 5.0 x16	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI Express x4	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek RTL8125BG 2.5G LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth	Supports Bluetooth 5.3, FIPS, FISMA ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Rear Panel Ports
Back I/O Ports	1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 2.0/1.1 / 5 x Audio Jacks

Internal I/O Connectors
Onboard USB	4 x USB 2.0 ports 2 x USB 5Gbps Type A ports 1 x USB 5Gbps Type C ports
Other Connectors	1 x CPU Fan 1 x Pump Fan 5 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Printer Port (JLPT) 1 x Com Port (JCOM) 2 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0)

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR)
