Rugged Vehicle Mount Computer VMC 1100 Maximizes Mobile Workforce Efficiency

AIoT Software free downloadKEY_TAB https://www.aiotcloud.dev/en/community-version

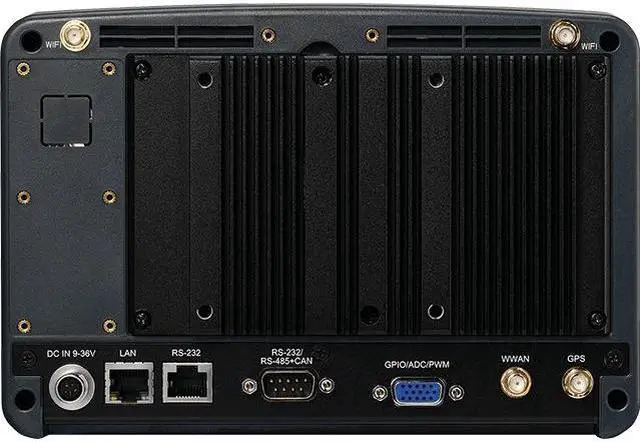

VMC 1100, a new generation 7-inch vehicle mount computer with dual core Intel Atom® processor, is designed for transportation and harbor applications requiring real-time vehicle tracking and job-dispatching. For real-time communication between driver and central control room, VMC 1100 provides the capability of wireless connection from GPS, WLAN to WWAN. To get more data from accessories, it offers RS-232, RS-485, USB 2.0, GPIO, and LAN connection. Dual CANBus 2.0B ( OBDII and J1939 protocol ), analog input and PWM are able to help to receive car status more quickly and correctly. Due to the unique features above, VMC 1100 is perfect to used in harbor application from container truck, forklift, container stacker.

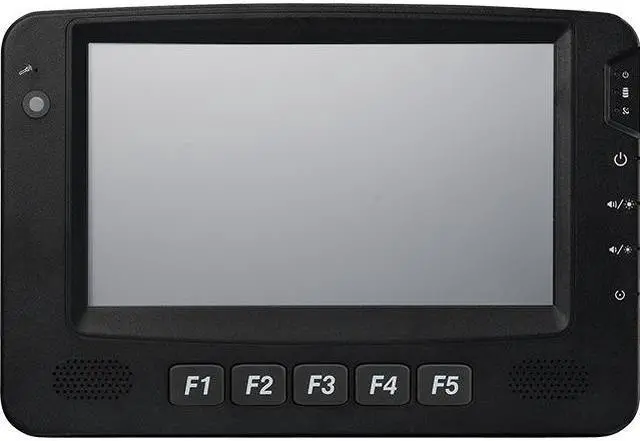

The VMC 1100 has an integrated Intel® HD Graphics and supports up to 4GB of DDR3L memory. The VMC 1100 can display work orders, route navigation, graphical data, and integrated information that are imperative for mobile workforces. For ease of use and to prevent distracted driving, the VMC 1100 has five function keys to offer single-step access to for instance, Hours-of-Service (HoS) records, print command, and other user-defined functions.

The VMC 1100 is built with a GPS and CAN bus interface to collect abundant vehicle data. From the regulatory perspective, the vehicle mount computer can maintain driver's record of duty status (RODS) by compiling vehicle geo-location, engine hours, and odometer readings. In the fleet manager's view, the VMC 1100 can monitor vehicles to ensure drivers follow designated paths and guidelines. Additionally, the VMC 1100 supports optional onboard diagnostics II (OBD II) interfaces with a variety of signaling protocols so to be used with different vehicles made by different automakers.

The VMC 1100 provides strengthened reliability with several design enhancements. For instance, the VMC 1100 follows SEA J1113, SAE J1455, and ISO 7637-2 standards to boost immunity to potential conducted interferences. Moreover, the VMC 1100 uses Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) for data encryption and decryption, protecting data from tampering.

The vehicle mount computer VMC 1100 has 16GB, 32GB, 64G, or 128G internal storage and supports external storage expansion with microSD and data transfer through USB as well as wireless communication. 3G/LTE and Wi-Fi/Bluetooth connectivity is available through mini-PCIe expansion. Peripherals such as printers and ID scanners can also be added via COM ports.

Specifications

Ordering P/N:10VC0110011X0

7" LCD WVGA display

Brightness:400 cd/m² (typical)

Contrast ratio:600:1 (typical)

Touch:4 wire resistive

CPU:Intel Atom Dual Core E3825 1.33GHz

Memory:4GB DDR3L 1600MHz 204-pin SO-DIMM (up to 8GB one slot)

Audio/Video:Front panel: Internal Mic-In
Right side: 1 x audio Line-Out, 1x MIC-In

Storage:1 x SATA DOM port
1 x Micro SD

Ethernet:1 x RJ45

Expansion:1 x Half Mini-PCIe socket (PCIe + USB2.0)
1 x Full Mini-PCIe socket (USB2.0 + UART)

GNSS:U-BLOX, NEO-M8N, build-in with antenna

IP Rating: Front panel IP54

Power Supply:5Pin circular type connector for 9~36VDC w/ ignition

Accessory:SATA-DOM POWER CABLE (#603POW0086X00)
GNSS ANTENNA (#603ANT0115X00)
Power in cable (#603POW0087X00)

Warranty:2 years global warranty
