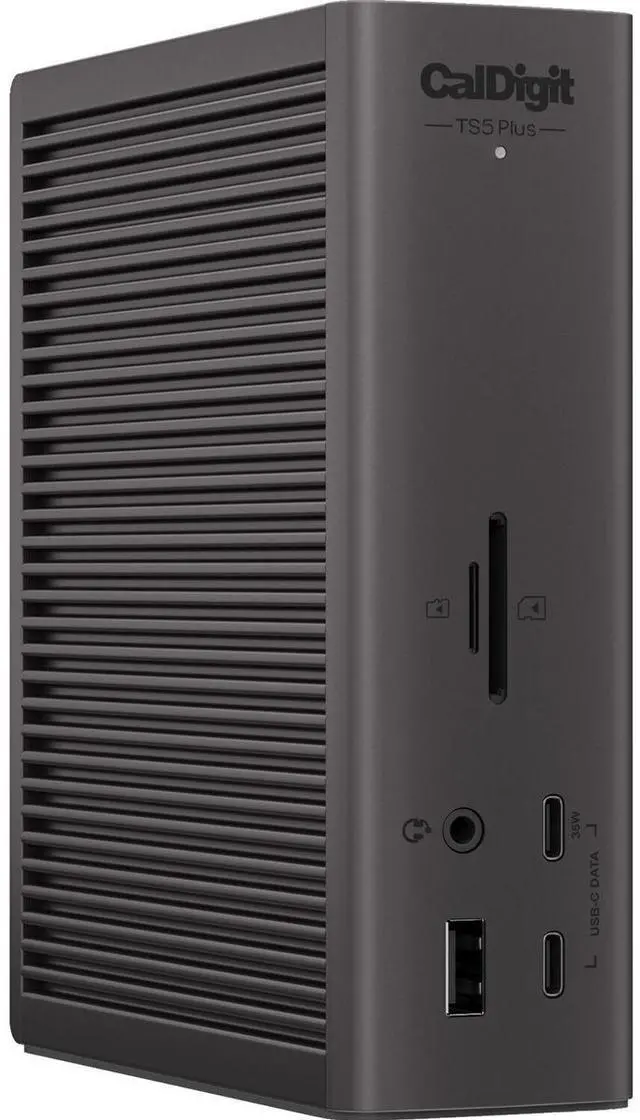

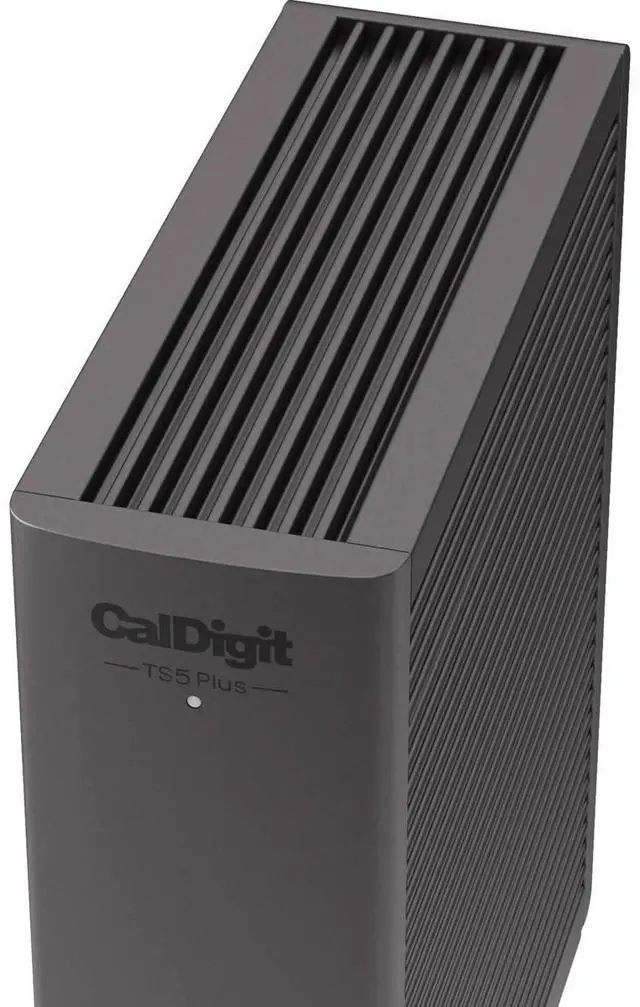

CalDigit TS5 Plus 20-in-1 Thunderbolt 5 Dock with Cable #TBT5-TS5PLUS-US-AMZ

Pushing the Limits of Connectivity
Over a decade after the original Thunderbolt Station redefined what was possible via a single connection, the TS5 Plus has built on previous generations to offer the ultimate docking station experience.

Powered by the latest Thunderbolt 5 technology, the TS5 Plus expands Mac and PC workflows with the most advanced port selection ever included on a Thunderbolt dock.

More Power. More Ports.
The Thunderbolt Station has always delivered plenty of ports, and the TS5 Plus is no exception. Delivering 20 ports, all of which can be used at the same time, the TS5 Plus is pushing the limits of connectivity.

It Just Works
The TS5 Plus is a powerful device, and to be used to its maximum it requires a Mac or PC with Thunderbolt or USB4 connectivity. This next-generation dock is compatible with Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, USB4 v2 or USB4 host devices.

M1/M2/M3/M4 Pro, M1/M2/M3/M4 Max & M1/M2/M3 Ultra Mac
M1/M2/M3/M4 Mac
Thunderbolt 5 PC
Thunderbolt 4 PC
Thunderbolt 3 Mac
USB4 & USB4 v2 PC
Intel Thunderbolt 3 Mac
Thunderbolt iPad

140W Power Delivery
The TS5 Plus provides up to 140W power delivery for even the most demanding laptops. This makes it ideal for laptops like the 16" MacBook Pro with M3/M4 Pro or Max chips that require 140W.

Whilst many other Thunderbolt 5 docks state that they can charge at up to a certain wattage, they actually include an insufficient power supply. These docks will allocate host power based on how many devices are connected to them. Some of the host power will move to newly attached devices, thereby reducing the power delivery.

Rest assured that the CalDigit TS5 Plus' power supply will always provide the full 140W power delivery, and will never drop that performance even when new devices are connected to the TS5 Plus.

For laptops or tablets that require less than 140W, the TS5 Plus will only supply the wattage required by your device.

10 Powerful USB Ports
With 10 USB ports on the TS5 Plus, a mixture of USB-A and USB-C, you have plenty of port connectivity to connect your USB accessories.

All of the USB ports on the TS5 Plus offer 10Gb/s performance, and 7.5W of power (excluding the front 36W USB-C port which offers 36W).

Dual USB Controllers
The TS5 Plus is a unique device, and this is ultimately demonstrated by being the only dock with dual USB controllers.

Traditional Thunderbolt docks feature a single USB controller that all of the USB, and Thunderbolt ports on the dock share. The TS5 Plus dual controllers allow the dock to provide two individual 10Gb/s controllers for increased bandwidth to connected devices. This is a great solution for anyone adding multiple high bandwidth USB devices to their dock.

36W of Power for Accessories
The TS5 Plus is a unique device, and with the inclusion of a 36W USB-C port, the TS5 Plus offers a convenient yet powerful front-facing USB-C port which is ideal even for the most power hungry USB-C device.

Not only does the front USB-C port feature 36W, but so do the two spare Thunderbolt 5 ports. Previous generations of Thunderbolt ports featured 15W downstream ports. The TS5 Plus has over doubled that wattage to provide even more power to your devices. 36W is more than enough power for even the iPad Pro, which charges at 20W.

Thunderbolt 5
The TS5 Plus features an 80Gb/s bi-directional Thunderbolt 5 ports, which is double the performance of Thunderbolt 4.

The PCIe performance of the Thunderbolt ports have been doubled from the previous generation to 64Gb/s PCIe 4.0. This is ideal if you are intending on connecting high performance SSDs or RAID devices to the TS5 Plus. This powerful dock will support transfer speeds up to 6,200MB/s.

Single, Dual, or Three Displays
