| Product Name |
8 in 1 Slim USB C Hub for iMac 24 inch (Model: BD183B) |
| Input |
USB-C to Host (up to 10 Gbps) |
| Output |
1 x USB-A 3.2 gen 2 data port (up to 10 Gbps); 1 x USB-C 3.2 gen 2 data port (up to 10 Gbps); 2 x USB-A 2.0 data port (up to 480Mbps); 1 x SD/TF 3.0 card reader slots (up to 104Mbps); 1 x M.2 NMVe SSDs or M.2 SATA SSDs enclosure (up to 10 Gbps) |
| Material |
Aluminum |
| Hub Dimension |
280 x 115 x 90mm |
| Weight |
300g |
| Compatible SSDs |
Support up to 2TB SATA M.2 SSD / PCIe NVMe M.2 SSD (size: 2242/2260/2280) that complies with M key and B+M Key, NOT support SSD with heat sinks |
| Recommended SSDs |
Samsung 980 PRO/970 EVO Plus/970 EVO/970 Pro/960EVO/950 PRO/860 EVO/850 EVO, WD Blue SN550/WD_Black SN750/WD_BlackSN850/WD Blue 3D NAND SATA SSD M.2 2280; KingSpec M.2 SATA SSDs 2242; and other M.2 2242/2260/2280 NVME SSDs |
| Compatible Devices |
Specially designed for 2021/2023/2024 24 inch iMac M1/M3/M4 |
| Cable Length |
40cm detachable TPE cable |
| NOTE 1 |
Please format your new SSD in exFat format before use; |
| NOTE 2 |
All USB-A ports ONLY support data transfer, DO NOT support charging, DO NOT support CD readers, Apple SuperDrive; |
| NOTE 3 |
As all the ports share the 10Gbps bandwidth, the transfer speed cannot reach the maximum value of each port when all data ports are used simultaneously. If you want to get the best transfer experience (with SSD card installed), it is recommended to use ONLY 1 external drive at a time. |
| NOTE 4 |
Data such as 5Gbps, 10Gbps, 4K@60Hz are all theoretical values. Depending on the connected devices, cables and use environment, Not all devices can achieve the theoretical values. |
| NOTE 5 |
In order to continually improve product functions, the product specifications may change without prior notice |
| NOTE 6 |
Disable the option to put hard disks to sleep when possible in the Energy Saver Settings to avoid SSD intermittent disconnection issue |

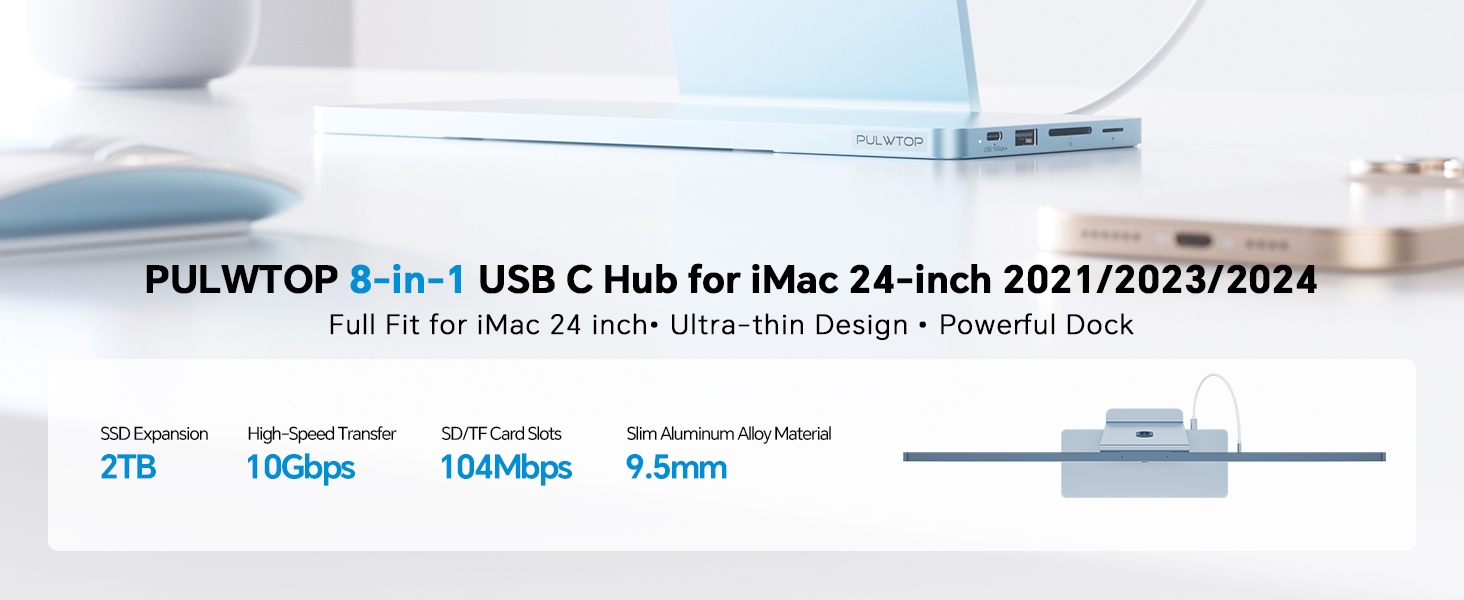

(1) 8-IN-1 USB C SLIM DOCK DESIGNED FOR IMAC 24 INCH - Exclusively-designed for iMac 24 inch 2021/2023/2024. As a functional imac 24 inch accessories, this imac hub features a USB-C port to connect iMac (up to 10 Gbps), M. 2 NMVe SSD enclosure to add extra memory up to 2TB (SSD card NOT included), USB C 3.2 Gen2 10Gbps, USB A 3.2 Gen2 10Gbps, 2 x USB A 2.0, SD/TF card reader slots to extend your USB ports for data transfer and easy access to peripherals
(2) SUPPORTS M. 2 NVME SSD EXPANSION - Equipped with an external hard drive slot at the bottom, this imac m4 docking station supports up to 2TB/10Gbps M. 2 NVMe PCIe or SATA SSD in size of 2242/ 2260/ 2280 (SSD NOT included). An ideal imac usb dock for the 2021 2023 2024 imac 24 inch users who needs additional storage.
NOTE: 1) DO NOT support SSDs with a heatsink. 2) Please initialize the new SSD because SSDs must be formatted to work with host in order for SSD to mount and show up
(3) UP TO 10GBPS SUPER SPEED - The imac multiport adapter features with 10Gbps USB-A/C 3.2 Gen2 data ports that support read and write speed up to 1000-1200MB/s, perfect for iMac users to transfer and backup data to external devices. 2 x USB A 2.0 ports for seamlessly access to mouse and keyboard at once, while the SD/Micro SD card readers support simultaneous reading and writing up to 104Mbps.
NOTE: All the USB ports do not support charging and CD readers, Apple SuperDrive.
(4) SLIM & COMPACT, ALL IN ONE DESIGN - Finished with sleek aluminium alloy material for good heat dissipation, slim and compact, all in one design with a just-right groove of size 130*110mm fits the iMac base perfectly, making the usb-c dock feel like a natural extension of your iMac. A perfect complement to your 2021, 2023, 2024 iMac, adding both functionality and neatness of the desktop
(5) COMPATIBLE WITH IMAC 2021/2023/2024 - The iMac 24 inch 2024 accessories supports iMac M1/M3/M4 with a Type C port. Easy to use, no software, drivers, or complicated installation required, just plug and play. As normal type-c hub, the iMac hub also supports all devices with Type C port such as laptops, tablets, phones.
NOTE: 1) NOT compatible with iMac 2020 and earlier models; 2) Disable the option to put hard disks to sleep when possible in the Energy Saver Settings to avoid SSD intermittent disconnection issue
