1U Rackmount Firewall, OPNsense, Firewall Hardware, Network Security Appliance, Router PC, Intel Atom D525, R4, 6 Intel Gigabit LAN, 2 x USB, COM, VGA, Fan, 4G RAM 32G SSD
- Item #: 9SIVU86M8J6438
- Mfr. Part #: TONYB0D3HD6KRG
- UNSPSC: 43222612
- Powerful yet Compact Design: Featuring an Intel Atom Processor D525 and up to 4GB of DDR3 RAM, this 1U rack-mountable firewall appliance provides ample power for your network security needs while maintaining a compact size of 430 x 250 x 50mm. Perfect for space-constrained environments.
- High-Speed Connectivity: Equipped with six Intel 82583v/82574l/I211 Gigabit Ethernet controllers, this firewall appliance ensures smooth and reliable data transmission with actual test traffic exceeding 1Gbps. Ideal for high-traffic networks requiring seamless connectivity.
- Flexible Storage Options: The appliance offers both mSATA SSD and 2.5/3.5-inch HDD storage options, providing ample space for your operating system, applications, and data. This flexibility ensures you can customize your storage needs based on your specific requirements.
- Versatile Compatibility: Compatible with a wide range of operating systems, including FreeBSD-based router systems, Linux distros, and Windows OS, this firewall
+
+
Overview
Specs
Reviews
Model Number: Partaker R4
Type: D525 6 Ethenet (Cabinet Type), With Fan Version
CPU: Intel Atom Processor D525 (1M Cache, 1.80 GHz)
AES-NI Supported: NO
Chipeset: Intel 82801JIR and Intel ICH8M single chipset
Memory: 1 x sodimm ddr3, 1333mhz, max 4g ram
HDD/SSD: 1 x mSata SSD and 1 x 2.5 / 3.5 inch HDD

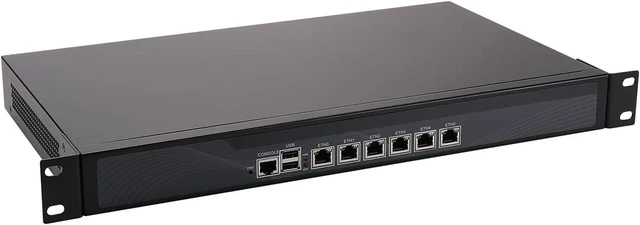

Interface: Console, 2 x USB, 6 x LAN, VGA, Power Switch
COM: YES
Chassis: 1u cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Network Card: 6 x intel 82583v/82574l/I211 10/100/1000m ethernet controller, the actual test traffic exceeds 1000m/s
WAN-LAN Throughput: Throughput through 1 gigabit nic from lan to wan forwarding speed is 200mbps to 250mbps
Cooling System: With fan
Size: 430 x 250 x 50mm
Weight: 6.5kgs
Power: 50w 12v 4.2a, 110-240v 50/60hz
Packing List: Partaker R4 firewall appliance, rackable ears, power cord, warranty card
System Compatibility: Any freebsd based router systems, linux distros, or win.os supported
Compatibility: Firewalls for pfsense, untangle, opnsense and other popular open-source software solutions
Tips: Other OS demand, Do need to leave us message on the order, thank you. 4 LAN, 6 LAN, 8 LAN, 10 Ports, Different CPU, 1U/2U RACK Mount, Desktop Type, all are available in our shop.
Type: D525 6 Ethenet (Cabinet Type), With Fan Version
CPU: Intel Atom Processor D525 (1M Cache, 1.80 GHz)
AES-NI Supported: NO
Chipeset: Intel 82801JIR and Intel ICH8M single chipset
Memory: 1 x sodimm ddr3, 1333mhz, max 4g ram
HDD/SSD: 1 x mSata SSD and 1 x 2.5 / 3.5 inch HDD
Interface: Console, 2 x USB, 6 x LAN, VGA, Power Switch
COM: YES
Chassis: 1u cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Network Card: 6 x intel 82583v/82574l/I211 10/100/1000m ethernet controller, the actual test traffic exceeds 1000m/s
WAN-LAN Throughput: Throughput through 1 gigabit nic from lan to wan forwarding speed is 200mbps to 250mbps
Cooling System: With fan
Size: 430 x 250 x 50mm
Weight: 6.5kgs
Power: 50w 12v 4.2a, 110-240v 50/60hz
Packing List: Partaker R4 firewall appliance, rackable ears, power cord, warranty card
System Compatibility: Any freebsd based router systems, linux distros, or win.os supported
Compatibility: Firewalls for pfsense, untangle, opnsense and other popular open-source software solutions
Tips: Other OS demand, Do need to leave us message on the order, thank you. 4 LAN, 6 LAN, 8 LAN, 10 Ports, Different CPU, 1U/2U RACK Mount, Desktop Type, all are available in our shop.
