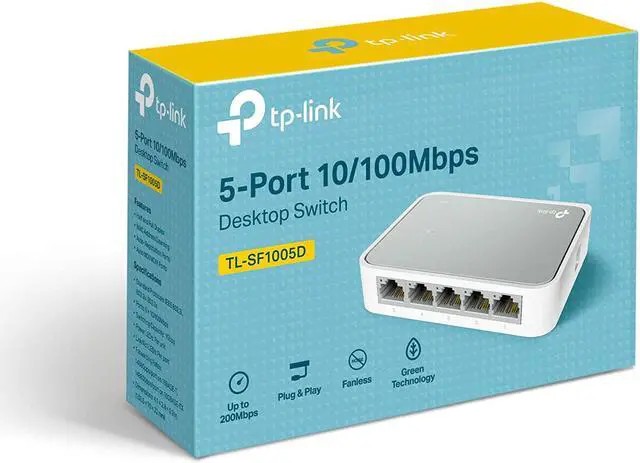

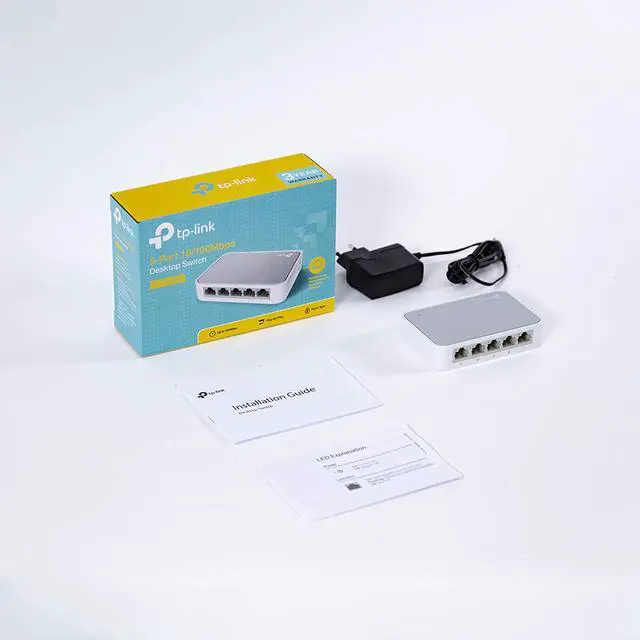

5 Port 10/100 Mbps Fast Ethernet Switch | Desktop Ethernet Splitter | Ethernet Hub | Plug & Play | Fanless Quiet | Desktop Design | Green Technology | Unmanaged (TL-SF1005D),White
- Item #: 9SIV36AKE32570
- Mfr. Part #: ID-XR60
- UNSPSC: 43222612
- PLUG-AND-PLAY - Easy setup with no configuration or no software needed
- ETHERNET SPLITTER Connectivity to your router or modem router for additional wired connections (laptop, gaming console, printer, etc.)
- 5 Port FAST ETHERNET - 5 10/100 Mbps auto-negotiation RJ45 ports greatly expand network capacity
- COST EFFECTIVE - Fanless Quiet Design, Desktop design
- RELIABLE - IEEE 802.3x flow control provides reliable data transfer
- UP to 68% Power Saving - Automatically adjusts power consumption according to the link status and cable length
- AUTO-NEGOTIATION - Supports Auto-MDI/MDIX, eliminating the need for crossover cables
- Unlimited 24/7 technical support for FREE
+
+
Overview
Specs
Reviews
Features
Plug and Play
The auto features of this Fast Ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network
Go Green with Your Ethernet
Have the choice to go green when expanding your wired network. The TL-SF1005D switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power.
High Performance and Reliability
The non-blocking switching architecture adopted in the 5-Port Fast Ethernet Switch improves network response times and significantly speeds up the traffic between subnets by forwarding and filtering packets at full wire speed for maximum throughput.
TP-Link TL-SF1005D 5-Port Unmanaged 10/100M Desktop SwitchSupports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode Supports MAC address auto-learning and auto-aging Standards and Protocols: IEEE802.3, 802.3u, 802.3x, CSMA/CD,
TCP/IP Ports: 5x 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) Basic Function: Wire-speed Performance MAC Address Auto-Learningand Auto-aging IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode Backbound Bandwidth: 1Gbps MAC Address Table: 1kForwarding Rate: 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100??
STP (maximum 100m) LED Indicator: Power, Link/Act (1, 2, 3, 4, 5) Safety & Emission: FCC, CE Power: External Power Adapter Transmission Method: Store-and-Forward Network Media: 10Base-T: UTP category3, 4, 5 cable (maximum 100m) EIA/TIA-568 100? STP(maximum 100m) Interface : 5 × 10/100Mbps RJ45 Ports , AUTO Negotiation/AUTO MDI/MDIX; Protocols Supported: IEEE 802.3i/802.3u/ 802.3ab/802.3x. External Power Supply: External Power Adapter (Output: 9.0VDC / 0.6A), Max Power Consumption: 1.9W, Max Heat Dissipation: 6.4 BTU/h.
Plug and Play
The auto features of this Fast Ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network
Go Green with Your Ethernet
Have the choice to go green when expanding your wired network. The TL-SF1005D switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power.
High Performance and Reliability
The non-blocking switching architecture adopted in the 5-Port Fast Ethernet Switch improves network response times and significantly speeds up the traffic between subnets by forwarding and filtering packets at full wire speed for maximum throughput.
TP-Link TL-SF1005D 5-Port Unmanaged 10/100M Desktop SwitchSupports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode Supports MAC address auto-learning and auto-aging Standards and Protocols: IEEE802.3, 802.3u, 802.3x, CSMA/CD,
TCP/IP Ports: 5x 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) Basic Function: Wire-speed Performance MAC Address Auto-Learningand Auto-aging IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode Backbound Bandwidth: 1Gbps MAC Address Table: 1kForwarding Rate: 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100??
STP (maximum 100m) LED Indicator: Power, Link/Act (1, 2, 3, 4, 5) Safety & Emission: FCC, CE Power: External Power Adapter Transmission Method: Store-and-Forward Network Media: 10Base-T: UTP category3, 4, 5 cable (maximum 100m) EIA/TIA-568 100? STP(maximum 100m) Interface : 5 × 10/100Mbps RJ45 Ports , AUTO Negotiation/AUTO MDI/MDIX; Protocols Supported: IEEE 802.3i/802.3u/ 802.3ab/802.3x. External Power Supply: External Power Adapter (Output: 9.0VDC / 0.6A), Max Power Consumption: 1.9W, Max Heat Dissipation: 6.4 BTU/h.
