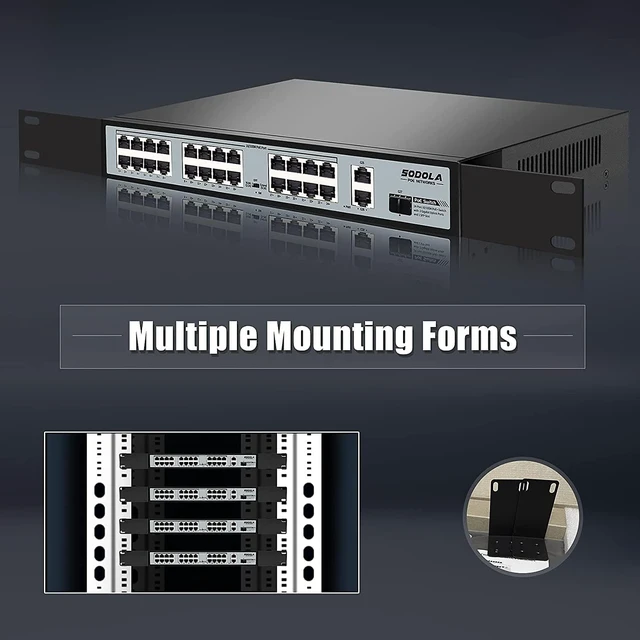

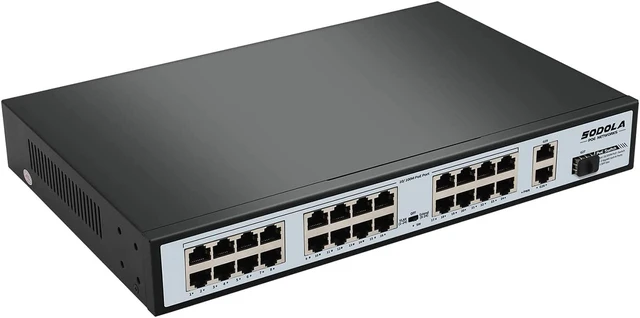

24 Port PoE Switch/24 10/100Mbps PoE+ Port, 2 Gigabit Ethernet Uplink&1 Gigabit SFP slot,300W Built in Power Supply,802.3af/at Compliant, 19-inch Rackmount, Plug & Play Unmanaged Network Switch

Power: Input: AC 100-240V, 50/60Hz

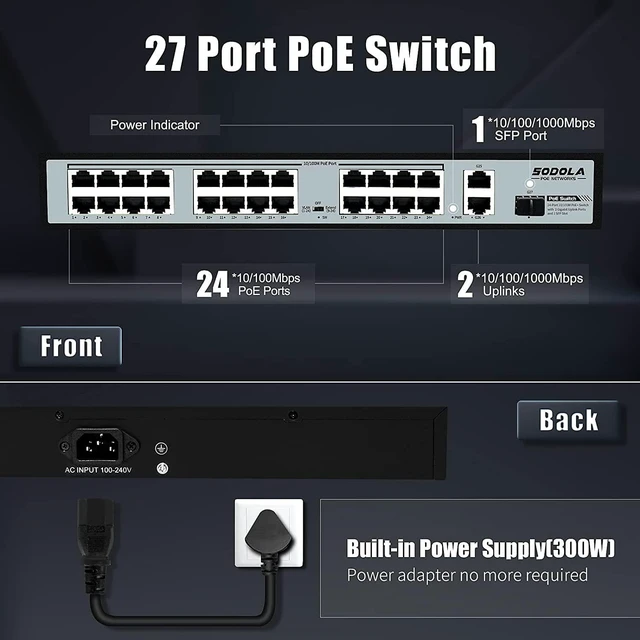

Ethernet: 24 *10/100M PoE Port; 2* 10/100/1000M Ethernet Uplink ports; 1* Gigabit SFP Uplink Port

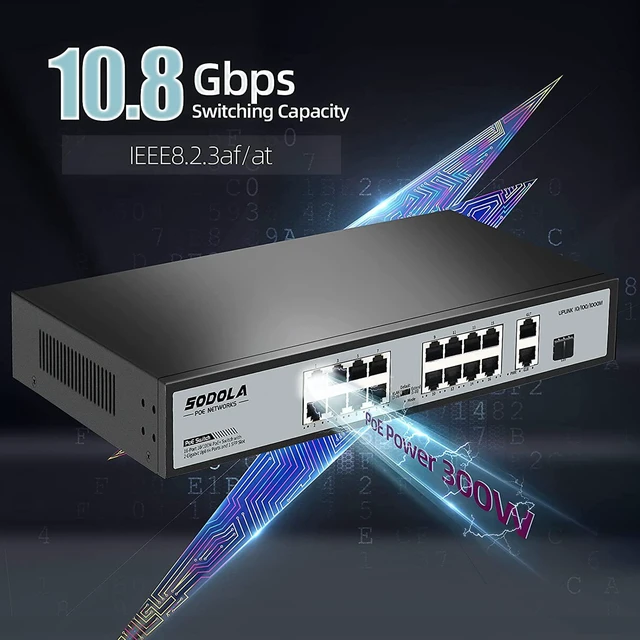

Switching Capacity: 10.8G bps
Throughput: 8.035M pps Packet Buffer: 2K
Jumbo Frame: 9216bytes Transfer Mode: Store and forward
Network protocol: IEE 802.3 (10Base-T); IEE 802.3 u(100Base-TX); IEE 802.3 ab(1000Base-TX); IEE 802.3 z(1000Base-FX); IEEE 802.3 x (Flow control);
PoE Protocol: IEEE 802.3 af( 15.4W ); IEE 802.3 at (30W)
Industry Standard:
EMI: FCC Part 15 CISPR (ENS55032) class A;
EMS: EN61000-4-2 (ESD); EN61000-4-4 (EFT); EN61000-4-5 (Surge)
Network Medium:
10Base-T: Cat345 or above
UTP (100m); 100Base-TX: Cat5 or above
UTP (100m); 1000Base-TX: Cat5 or above UTP (100m)
Optical Media: Multimode
fiber: 50/125, 62.5 /125, 100/140um; Single mode fiber8/125, 8.7 /125, 9/125, 10/125m
Working Environment: Working
Temperature: -20~50°C;
Storage Temperature: -40~85°C;
Working Humidity: 10%~90%, non-condensing;
Storage Temperature: 5%~90%, non-condensing;
Working Height: Maximum10, 000 feet;
Storage Height: Maximum 10, 000 feet
LED Indicators: PWR (power supply); W (DIP); 1-27 Green(Link&Data)

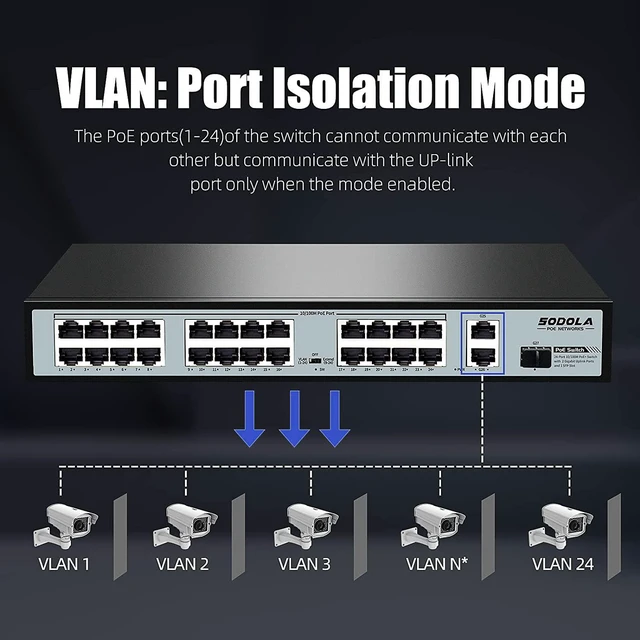

VLAN: Port isolation mode. In this mode, the PoE ports(1-24) of the switch cannot communicate with each other, and can only communicate with the UP-link port.
OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M/ 100M adaptive
Extend Link extension mode, 9-24 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
Package List: Switch *1; Power cord*1; User manual*1; Brackets*1 pair; several screws
