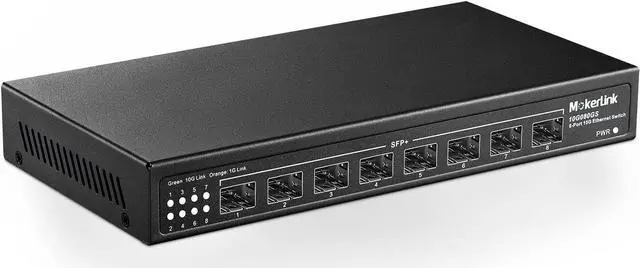

8 Port 10Gbps SFP+ Switch, Support 1G SFP and 10G SFP+, 160Gbps Bandwidth, Fanless Unmanaged Plug and Play Ethernet Switch
- Item #: 9SIVB0EJ8R7024
- Mfr. Part #: BEHQ097XCI
- UNSPSC: 43222612

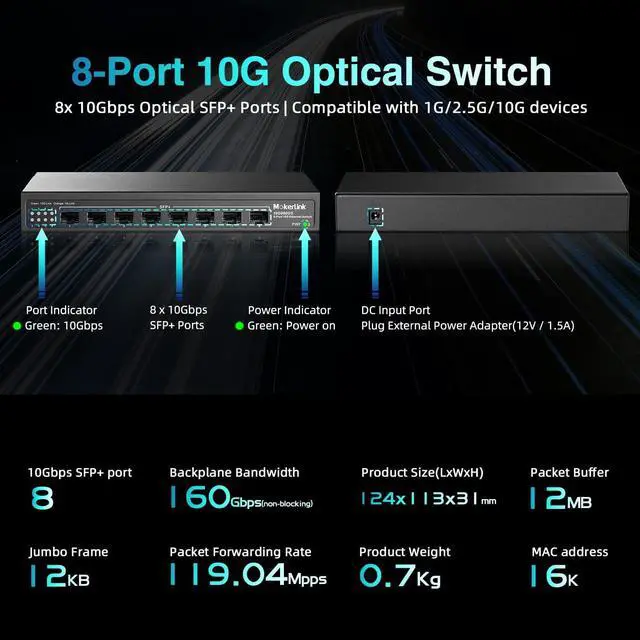

- 10 Gigabit SFP+: 8 x 10Gbps SFP+ ports, enable high-bandwidth connected, auto-adaptive 1G/2.5G/10G optical fiber module, wider rate range
- 160Gbps Bandwidth: switching capacity is 160Gbps, all ports can achieve non-blocking 10G line speed forwarding
- Open SFP: Support standard SFP interface optical module, no encryption, such as multi mode, single mode, SFP to RJ45 Modules.***No include SFP module***
- Plug and Play: Unmanaged simple setup, with no software to install or configuration needed. LED indicators can clearly show the status and rate of the port
- Widely Used: Metal case, fanless design, quiet and stable operation, suitable for high-speed and long-distance fiber transmission
+
+
Overview
Specs
Reviews
Key Features:
MokerLink 8 port 10G ehternet switch upgrading networks by providing a more reliable, stable, seamless network and easily multiplying the network speed by 10 times. It provides 8* 1G/10Gbps SFP+ ports with line speed forwarding capability per port.

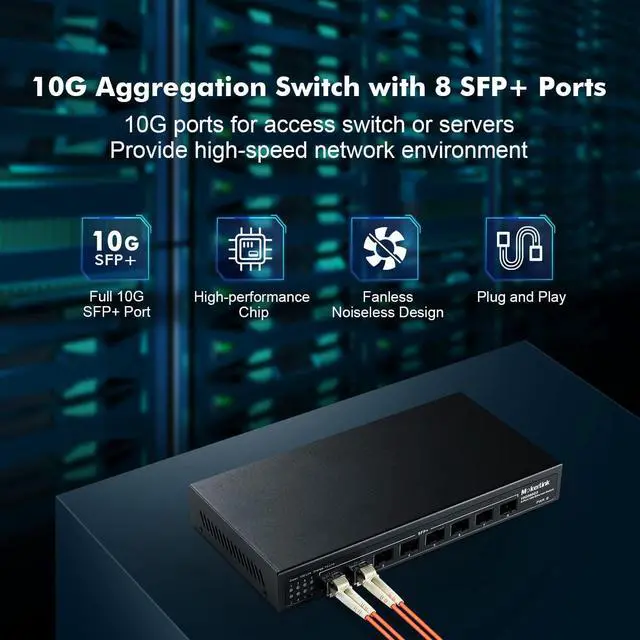

8*10 Gigabit SFP + optical ports are provided to realize line speed forwarding.
Each port supports MDI/MDIX automatic flip and duplex / rate self negotiation.
10000Mbase-t (x) automatic detection, full / half duplex MDI / mdi-x adaptive.
With 10 Gigabit speed, the 10G080GS brings high-flexibility and high-bandwidth connectivity to WIFI6 AP, router, servers, workstations and other attached devices. It enables you to save time when transferring large files. 12K jumbo frames are also supported to improve network utilization in large files transfer.
8 port 10G ethernet Switch
8 port 10G ethernet Switch
8 port 10G ethernet Switch

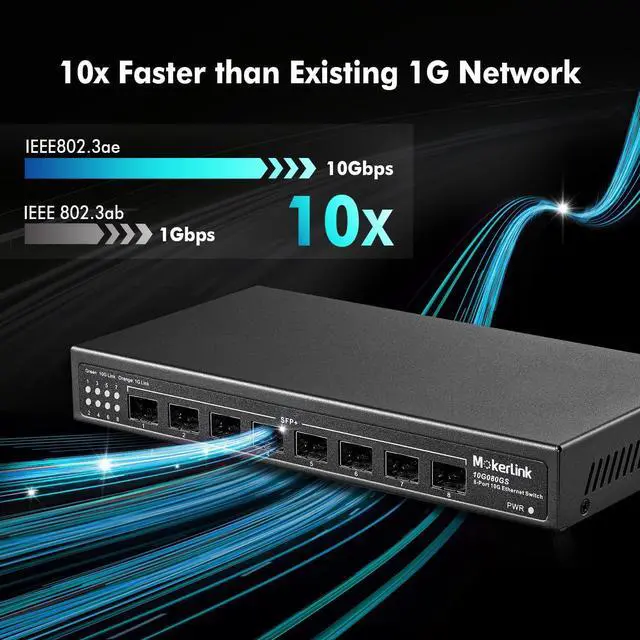

Full 10G Port
The 10G080GS features non-blocking wire-speed architecture with 160Gbps switching capacity for maximum data throughput. It supports IEEE 802.3 x flow control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. An 16K MAC address table provides scalability for even the largest networks.
Plug and Play
This 8 port 10G switch support installation plug and play. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 1G/10Gbps) and intelligently adjusts for compatibility and optimal performance.

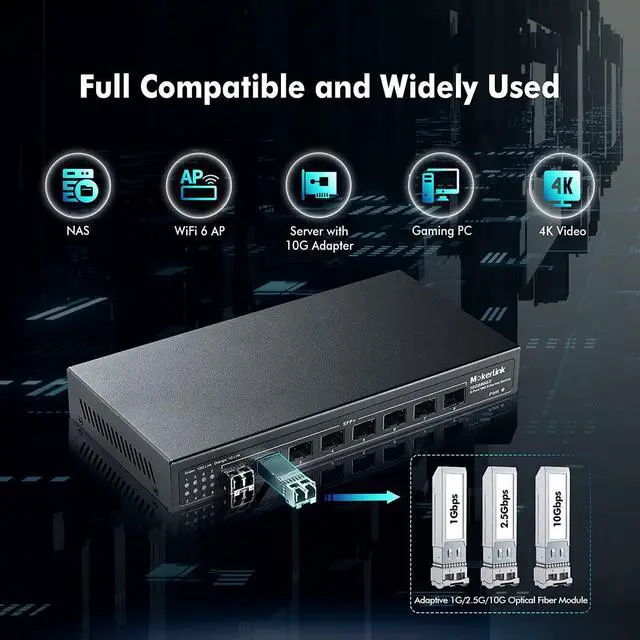

Open SFP Slot
This 10G fiber optic switch is equipped with 8 open SFP Port, lets you customize your connection mode or distance using most MSA-Compliant transceivers.
8 port 10G ethernet Switch
8 port 10G ethernet Switch
8 port 10G ethernet Switch

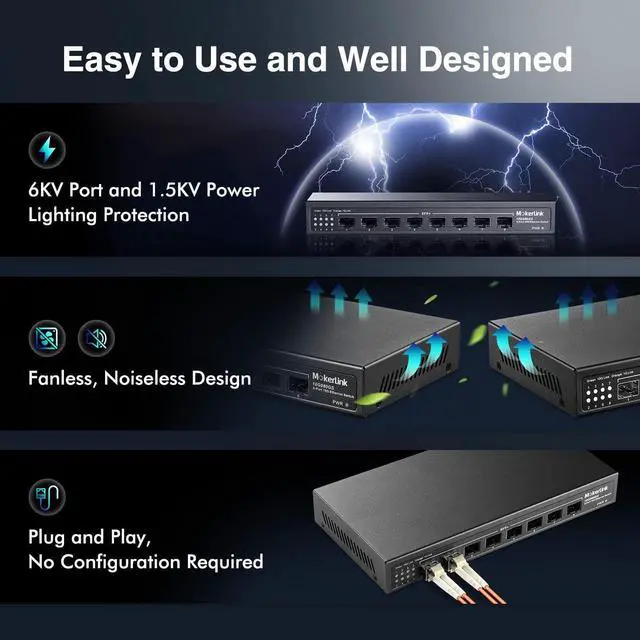

Lighting Protection
The 8 port 10g switch fetures with 6KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Fanless Quiet Design
Fanless design improve energy efficiency and lower financial cost. Passive cooling achieves high levels of natural convection and heat dissipation by utilizing a heat spreader or a heat sink to maximize the radiation and convection heat transfer modes, It is a solution for switches to maintain optimal operating temperatures without causing much noise.
Compact Size
The compact design makes these sensors interesting for room critical applications.
MokerLink 8 port 10G ehternet switch upgrading networks by providing a more reliable, stable, seamless network and easily multiplying the network speed by 10 times. It provides 8* 1G/10Gbps SFP+ ports with line speed forwarding capability per port.
8*10 Gigabit SFP + optical ports are provided to realize line speed forwarding.
Each port supports MDI/MDIX automatic flip and duplex / rate self negotiation.
10000Mbase-t (x) automatic detection, full / half duplex MDI / mdi-x adaptive.
With 10 Gigabit speed, the 10G080GS brings high-flexibility and high-bandwidth connectivity to WIFI6 AP, router, servers, workstations and other attached devices. It enables you to save time when transferring large files. 12K jumbo frames are also supported to improve network utilization in large files transfer.
8 port 10G ethernet Switch
8 port 10G ethernet Switch
8 port 10G ethernet Switch
Full 10G Port
The 10G080GS features non-blocking wire-speed architecture with 160Gbps switching capacity for maximum data throughput. It supports IEEE 802.3 x flow control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. An 16K MAC address table provides scalability for even the largest networks.
Plug and Play
This 8 port 10G switch support installation plug and play. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 1G/10Gbps) and intelligently adjusts for compatibility and optimal performance.
Open SFP Slot
This 10G fiber optic switch is equipped with 8 open SFP Port, lets you customize your connection mode or distance using most MSA-Compliant transceivers.
8 port 10G ethernet Switch
8 port 10G ethernet Switch
8 port 10G ethernet Switch
Lighting Protection
The 8 port 10g switch fetures with 6KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Fanless Quiet Design
Fanless design improve energy efficiency and lower financial cost. Passive cooling achieves high levels of natural convection and heat dissipation by utilizing a heat spreader or a heat sink to maximize the radiation and convection heat transfer modes, It is a solution for switches to maintain optimal operating temperatures without causing much noise.
Compact Size
The compact design makes these sensors interesting for room critical applications.
