8 Port Mini Gigabit PoE+ Industrial Switch, 100/1000Mbps Ethernet, IEEE802.3AF/AT POE+, Din Rail & Wall Mount, Unmanaged IP30 (-40~185°F) Hardened YuLinca Industrial PoE Switch
- Item #: 9SIVU86M8G7030
- Mfr. Part #: TONYB0FZRH1PHG
- UNSPSC: 43222612
- 8 Port PoE+ Industrial Switch: This network switch includes 8 Ports PoE+ IEEE802.3af/at/HiPoE, 10/100Mbps Fast Ethernet, DIN-Rail & Wall Mount Included.
- NOTE: The poe port 1 supports HiPoE 60W, the poe port 2-8 support IEEE802.3af/at standard, max 30W per port, can connect multiple poe devices, such as POE camera, poe ap, etc. Please note that passive 24v poe is not supported. His POE input DC voltage is 48-55V, so please use a input voltage above 48V to provide POE, if it is 12V, it cannot provide POE.
- Industrial Grade Quality: The switch is made of industrial-grade aluminum alloy, which is more sturdy, compact design and small size, integrated DIN-rail and wall mount kit, installation and disassembly are very simple.
- Redundant Power: 1 DC Power and 2 Industrial power(4 pin terminal), total of 3-way power supply is more flexible. Automatic fault switching, anti-reverse connection does not damage the equipment, higher reliability. ***Please note that the power adapter is not includ
+
+
Overview
Specs
Reviews

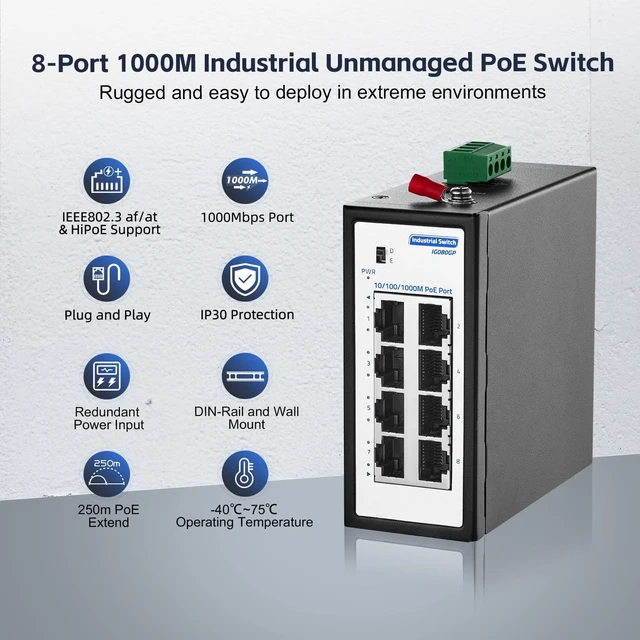

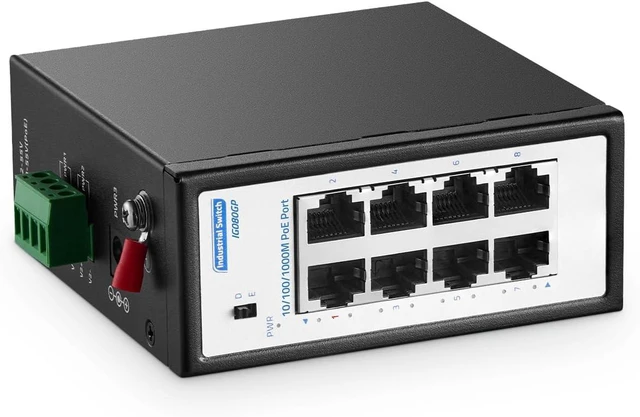

The IG080GP is a dependable IP30-rated unmanaged DIN-rail PoE switch equipped with ruggedized components, engineered to deliver stable performance in harsh industrial environments. It features 8×10/100/1000 Mbps PoE ports and with each port offering a maximum output of 30W.
Equipped with 8×1000 Mbps ports and a 1.6 Gbps switching capacity, it supports the connection of devices with varying bandwidth requirements.

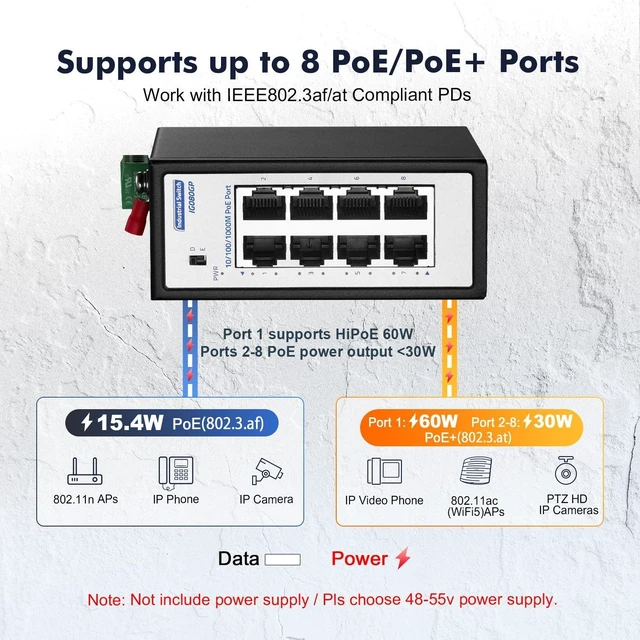

Ports 18 support the IEEE 802.3af/at PoE standards, with each port offering a maximum output of 30W. It automatically identifies PoE-enabled devices.
This is an unmanaged industrial switch that enables automatic connectivity to your Ethernet devices no IT expertise required.
Featuring no internal moving parts to minimize unplanned downtime, it supports an operating temperature range of -40 to 75 °C.

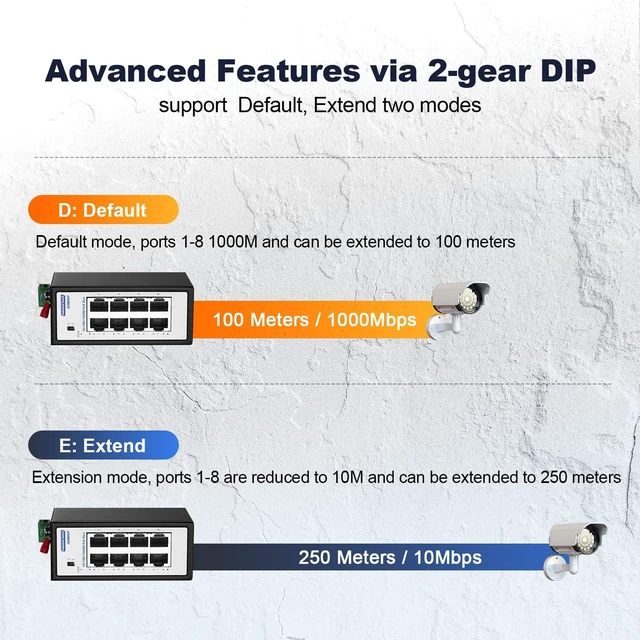

The long-range mode enables the ports to deliver data and power up to 250m at a 10 Mbps transmission rate.

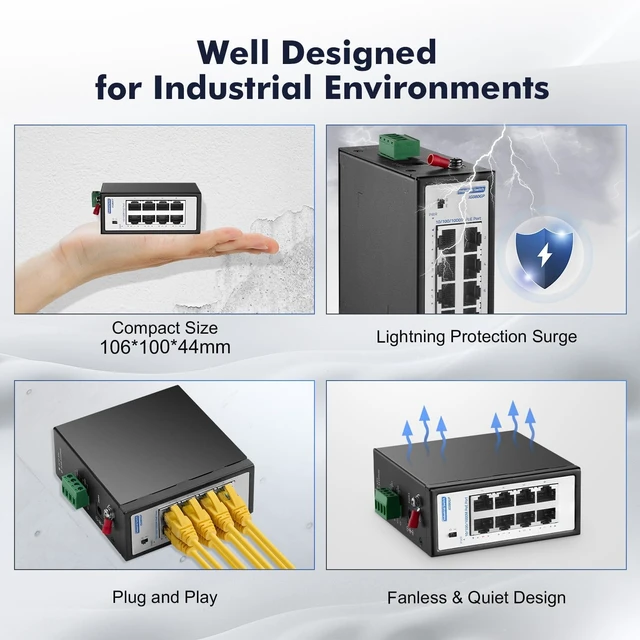

IP30-rated metal enclosure, complete with included DIN-rail and wall-mounting hardware.

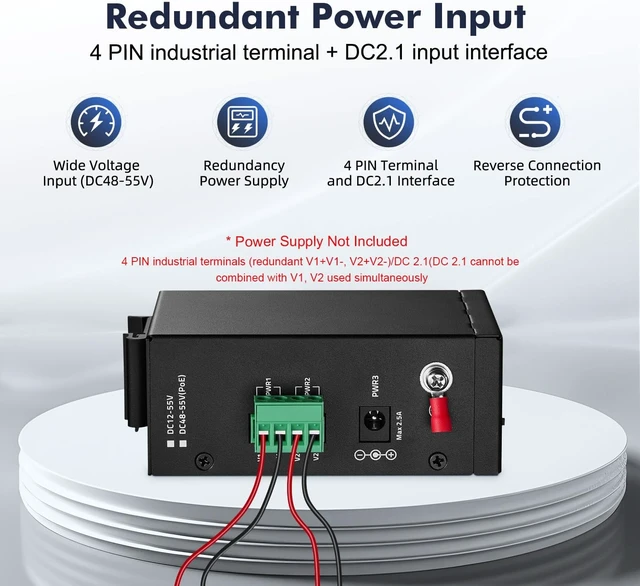

Equipped with redundant power inputs a 4-pin industrial terminal block and a DC 2.1 port. ensures exceptional stability for system operation.
The ports and the DC power port, feature power backfeed protection to prevent device damage.
Model IG080GP Ethernet 8*10/100/1000Mbps PoE ports Bandwidth 16 Gbps Pack forward rat 11.9Mpps MAC address 8K Network protocol IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet Fiber Standard) IEEE802.3x (Flow Control) Network medium 10Base-T : Cat 3, 4, 5 or above UTP/STP(100m) 100Base-TX : Cat 5 or above UTP/STP(100m) 1000Base-TX : Cat 5 or above UTP/STP(100m) PoE PoE Standard: IEEE802.3af (15.4W), IEEE802.3at (30W); PoE Port Output Voltage: DC 48-55V; PoE Ports: Port 1 supports HiPoE 60W Ports 2-8 PoE power output <30W, PoE Power Budget According to the adapter; Working environment Working Temperature: -40~75°C Storage Temperature: -40~85°C Working Humidity 10%~90%non-condensing Storage Temperature5%~90%non-condensing Working Height: Maximum10,000 feet Storage Height: Maximum 10,000 feet Indicator PWR Green LED On: Powered on, Off: Powered off; Ports 1-8 Green LED On: 10/100/1000Mbps Link normal, Off: Link blocked Fast Flashing: Data transmitting DIP function D: Normal mode, all ports can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100/1000Mbps adaptive E: Extend mode, ports 1-8 force 10Mbps to extend the transmission distance to 250meters Structure size Product Dimensions: 100*106*44mm Packaging Dimensions: 175*140*60mm Product Net Weight: 0.53KG Product Gross Weight: 0.6KG Power voltage DC12~55V (Non-PoE) DC48~55V (PoE) Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-)/DC 2.1(DC 2.1 cannot be combined with V1, V2 used simultaneously) Packaging list Industrial Switch: 1 PC .User Manual: 1 PC Pull-arm: 1 PC Installation Desktop, Wall mounting installation, Rail installation High Performance Connection Power Over Ethernet Unmanaged, Plug and Play Extreme Temperatures Further Network Connection DIN-Rail/Wall Mounts Redundant DC Power Input Safe Guard Your Devices Technical Parameter
Equipped with 8×1000 Mbps ports and a 1.6 Gbps switching capacity, it supports the connection of devices with varying bandwidth requirements.
Ports 18 support the IEEE 802.3af/at PoE standards, with each port offering a maximum output of 30W. It automatically identifies PoE-enabled devices.
This is an unmanaged industrial switch that enables automatic connectivity to your Ethernet devices no IT expertise required.
Featuring no internal moving parts to minimize unplanned downtime, it supports an operating temperature range of -40 to 75 °C.
The long-range mode enables the ports to deliver data and power up to 250m at a 10 Mbps transmission rate.
IP30-rated metal enclosure, complete with included DIN-rail and wall-mounting hardware.
Equipped with redundant power inputs a 4-pin industrial terminal block and a DC 2.1 port. ensures exceptional stability for system operation.
The ports and the DC power port, feature power backfeed protection to prevent device damage.
Model IG080GP Ethernet 8*10/100/1000Mbps PoE ports Bandwidth 16 Gbps Pack forward rat 11.9Mpps MAC address 8K Network protocol IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet Fiber Standard) IEEE802.3x (Flow Control) Network medium 10Base-T : Cat 3, 4, 5 or above UTP/STP(100m) 100Base-TX : Cat 5 or above UTP/STP(100m) 1000Base-TX : Cat 5 or above UTP/STP(100m) PoE PoE Standard: IEEE802.3af (15.4W), IEEE802.3at (30W); PoE Port Output Voltage: DC 48-55V; PoE Ports: Port 1 supports HiPoE 60W Ports 2-8 PoE power output <30W, PoE Power Budget According to the adapter; Working environment Working Temperature: -40~75°C Storage Temperature: -40~85°C Working Humidity 10%~90%non-condensing Storage Temperature5%~90%non-condensing Working Height: Maximum10,000 feet Storage Height: Maximum 10,000 feet Indicator PWR Green LED On: Powered on, Off: Powered off; Ports 1-8 Green LED On: 10/100/1000Mbps Link normal, Off: Link blocked Fast Flashing: Data transmitting DIP function D: Normal mode, all ports can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100/1000Mbps adaptive E: Extend mode, ports 1-8 force 10Mbps to extend the transmission distance to 250meters Structure size Product Dimensions: 100*106*44mm Packaging Dimensions: 175*140*60mm Product Net Weight: 0.53KG Product Gross Weight: 0.6KG Power voltage DC12~55V (Non-PoE) DC48~55V (PoE) Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-)/DC 2.1(DC 2.1 cannot be combined with V1, V2 used simultaneously) Packaging list Industrial Switch: 1 PC .User Manual: 1 PC Pull-arm: 1 PC Installation Desktop, Wall mounting installation, Rail installation High Performance Connection Power Over Ethernet Unmanaged, Plug and Play Extreme Temperatures Further Network Connection DIN-Rail/Wall Mounts Redundant DC Power Input Safe Guard Your Devices Technical Parameter
