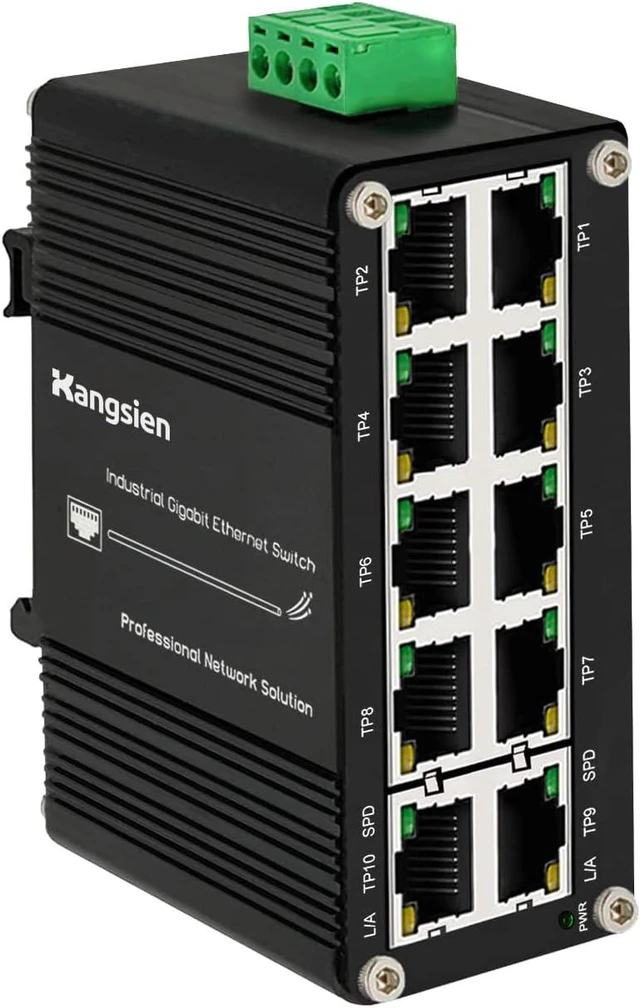

8X1000M RJ45-2XRJ45 Uplink Industrial Ethernet Switch

Overview:
This Mini Industrial 10 Port 10/100/1000Mbps Gigabit Ethernet Switch supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode.
This industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
The switch also complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications.
Features:
10-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
Supports 802.3x Flow control

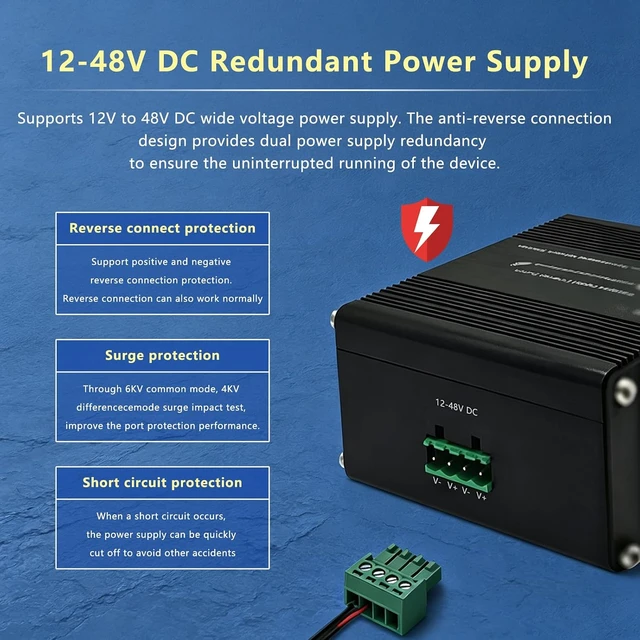

12~48V DC wide range power input
Industry standard design, dust proof and close design IP40, rugged high-strength metal case

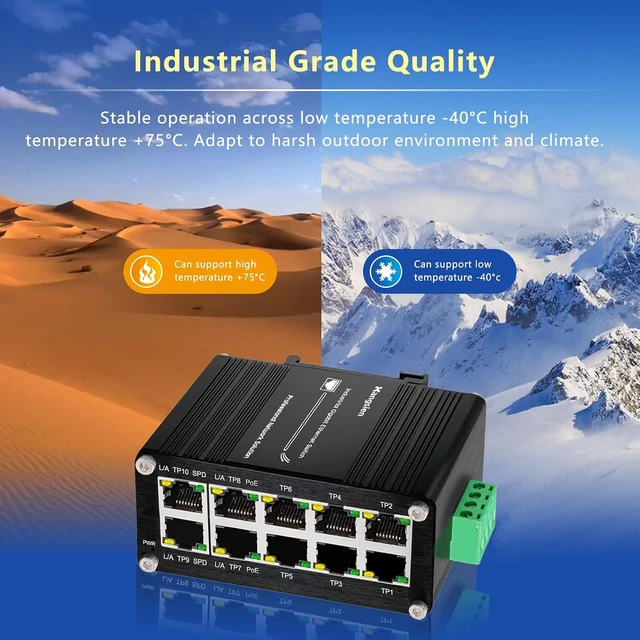

-40°C to 75°C (-40°F to 167°F) operating temperature
Specifications:
Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE 802.3x flow control
Packet Buffer: 2Mbit
Max Packet Length: 9K Bytes.
Address Table Size: 4K MAC Address
Switch Capacity: 20Gbps/non-blocking
Ethernet Port: RJ45 10/100/1000Mbps
Ethernet Transmission distance: 100m (328ft)
Power consumption: <6W

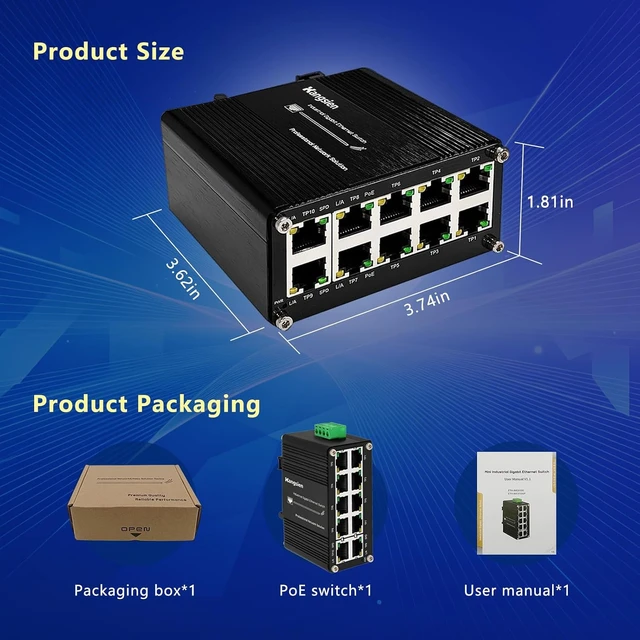

Mini Size (WxDxH): 3.74x2.76x2.3in (95 x 70 x 58 mm)
Note: If you have any questions or find the Ethernet switch dont work, please contact us. Our professional technical staff will teach you how to use or help you find the problem and solve it.
