MW54-HP0
Motherboard - Intel® Xeon® 600 Processors for Workstations - ATX UP
Intel® Xeon® 600 Processors for Workstations
New Expert 1S and Mainstream Workstation Solutions
Modern workstation workloads are evolving rapidly, driven by AI, higher core density, and the need for faster data movement across the system. Intel® Xeon® 600 processors for workstations are built on the new Redwood Cove+ P-core architecture and the Intel 3 process, delivering a significant leap in compute capability, AI acceleration, and platform bandwidth. With expanded PCIe 5.0 connectivity, faster DDR5 memory, and the new W890 workstation chipset, this platform provides a future-ready foundation for professionals tackling demanding workloads in engineering, AI development, data science, and media creation.
| Intel® Xeon® 690 Processors | Intel® Xeon® 670 Processors | Intel® Xeon® 650 Processors | Intel® Xeon® 630 Processors | |||||
| Chipset | Intel® W890 Chipset | Intel® W890 Chipset | Intel® W890 Chipset | Intel® W890 Chipset | Intel® W890 Chipset | |||
| Core Count | 64 to 86 cores | 28 to 48 cores | 18 to 24 cores | 12 to 16 cores | ||||
| Memory Channel | 8 channels | 8 channels | 8 channels | 8 channels | 4 channels | |||
| DDR5 RDIMM/3DS-RDIMM | 1DPC @ 6400 MT/s or 2DPC @ 5200 MT/s | 1DPC @ 6400 MT/s or 2DPC @ 5200 MT/s | 1DPC @ 6400 MT/s or 2DPC @ 5200 MT/s | 1DPC @ 6400 MT/s or 2DPC @ 5200 MT/s | 1DPC @ 6400 MT/s or 2DPC @ 5200 MT/s | |||
| MRDIMM Support | 1DPC @ 8000 MT/s | 1DPC @ 8000 MT/s | 1DPC @ 8000 MT/s | N/A | N/A | N/A | ||
| Memory Capacity | Up to 4 TB | Up to 4 TB | Up to 4 TB | Up to 2 TB (4 channels) Up to 4 TB (8 channels) |
Up to 2 TB | |||
| PCIe 5.0 Lanes | Up to 128 lanes | Up to 128 lanes | Up to 128 lanes | Up to 128 lanes | Up to 80 lanes | |||
| TDP | Up to 350W | Up to 300W | Up to 250W | Up to 180W | ||||
Designed for balanced performance, scalability, and platform flexibility
Higher Multi-Threaded Performance
Increased core counts and higher operating frequencies for compute-heavy workloads
Architected for Advanced AI Compute
AMX-FP16 support for improved CPU-based AI training and inferencing performance
Expanded I/O and Connectivity
Up to 128 CPU PCIe 5.0 lanes with VROC support, PCIe 4.0 chipset expansion, and USB 20Gbps support
Flexible and High-Capacity Memory
Up to 8 memory channels and 4 TB capacity with DDR5 support for memory-intensive applications
Enhanced Storage Capabilities
Native CPU NVMe support with VROC, VMD, RAID, and up to 8 chipset SATA ports
Updated Security Technologies
Intel® VT-rp and Intel® Total Memory Encryption with multi-key support
Modern Connectivity Options
Integrated Wi-Fi 6E with optional discrete Wi-Fi 7 support
* Feature availability may vary depending on the selected CPU SKU.
MW54-HP0 Block Diagram
MW54-HP0 Product Overview
High Performance

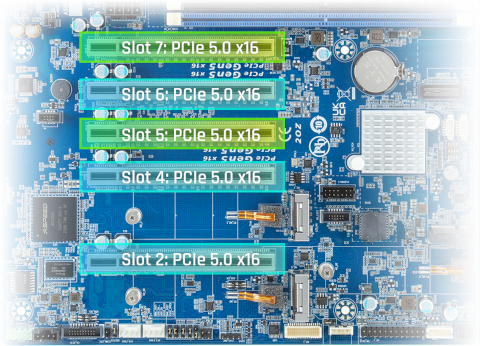

Supports up to 2 x Dual-slot Accelerators
Intel® Xeon® 630 processor with up to 80 PCIe 5.0 lanes for multi-GPU support gives creators more configuration flexibility to equip the variety combination of hardware accelerators.

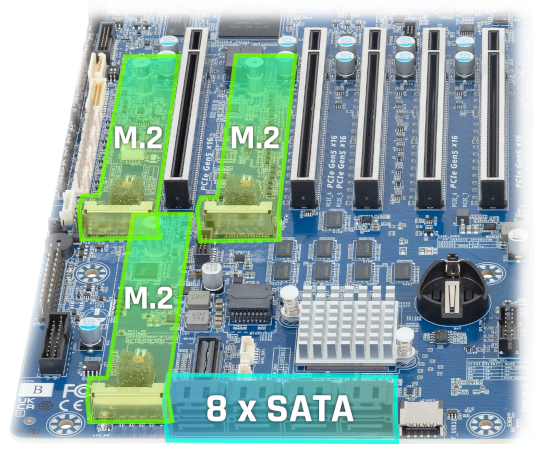

Multiple Storage Interface
3 x NVMe M.2 and 8 x SATA
Plentiful NVMe and SATA Storage interface can fulfill your hot and cold data processing requirement at once.
- 3 x M.2 2280 SSD slots (PCIe Gen4.0 x4)
- 8 x SATA III 6Gb/s ports
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data.
GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Notes:
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
