Pyhodi TL611 Pro Multipurpose Mainboard Debug Card, Laptop EC DEBUG Adapter Card Compatible with Asus, HP, MSI, Gigabyte, Support PCI E,Mini PCI E,LPC, Easy to Use, Reliable Performance
- Item #: 9SIVU6VM1H7228
- Mfr. Part #: TOLDB0CV7BHX7V
- UNSPSC: 43201404

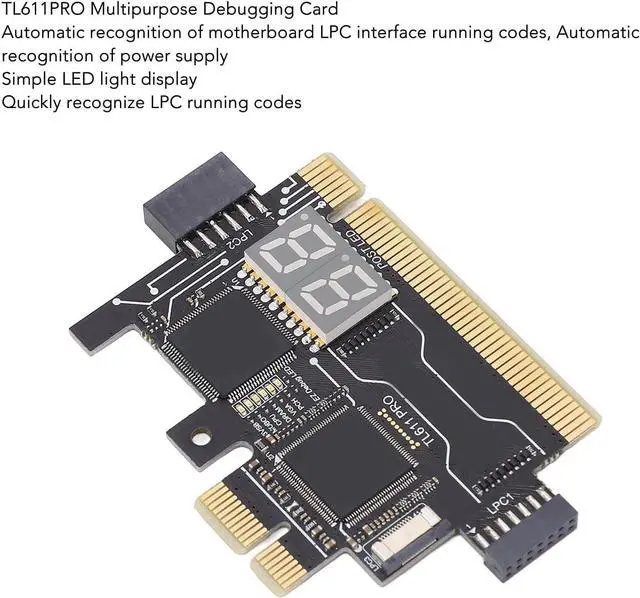

- High CompatibilityThe TL611 Pro motherboard diagnostic card supports PCI E, mini PCI E, and LPC, and is compatible with all PCI slots. It is versatile and can be used with a variety of computer .
- User-Friendly DesignWith a high recognition rate and automatic identification of power modules, this motherboard diagnostic card is easy to use and extremely user-friendly. It simplifies the debugging process for users.
- Multi-functionalThe motherboard analyzer diagnostic card can detect multiple channels and LED indicator lights, providing status information on power, motherboard, CPU, memory, video card, and hard drive. It is a versatile tool for computer diagnostics.
- Reliable PerformanceDesigned to provide accurate and reliable diagnostic information, the TL611 Pro motherboard diagnostic card helps efficiently troubleshoot and diagnose computer system issues. It ensures reliable performance in various scenarios.
- Wide ApplicationThe motherboard debug card kit is compatible with
+
+
Overview
Specs
Reviews
High Compatibility The TL611 Pro motherboard diagnostic card supports PCI E, mini PCI E, and LPC, and is compatible with all PCI slots. It is versatile and can be used with a variety of computer.
Multi-functional The motherboard analyzer diagnostic card can detect multiple channels and LED indicator lights, providing status information on power, motherboard, CPU, memory, video card, and hard drive. It is a versatile tool for computer diagnostics.
Reliable Performance Designed to provide accurate and reliable diagnostic information, the TL611 Pro motherboard diagnostic card helps efficiently troubleshoot and diagnose computer system issues. It ensures reliable performance in various scenarios.
Spec:
Item Type: Multipurpose Debug Card
Material: PCB
Product Color: Black
Product Interface: PCI E, LPC

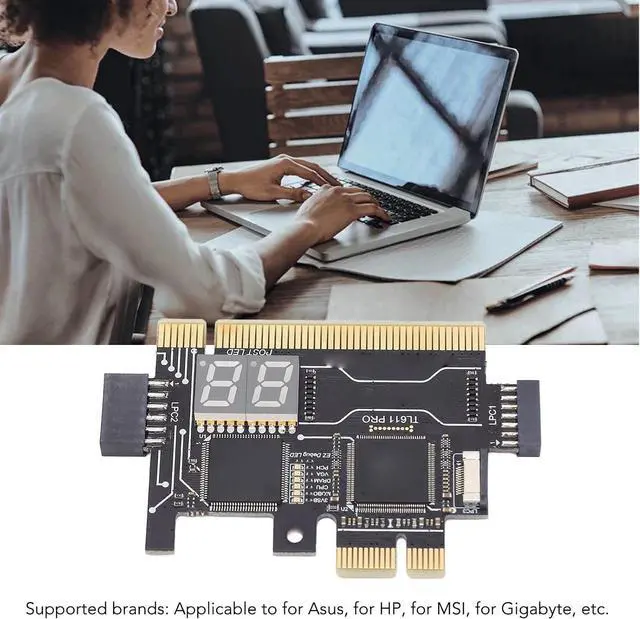

Supported Brands: Applicable to for Asus, for HP, for MSI, for Gigabyte, etc.
Product Size: Approx. 84 x 56mm / 3.31 x 2.2in

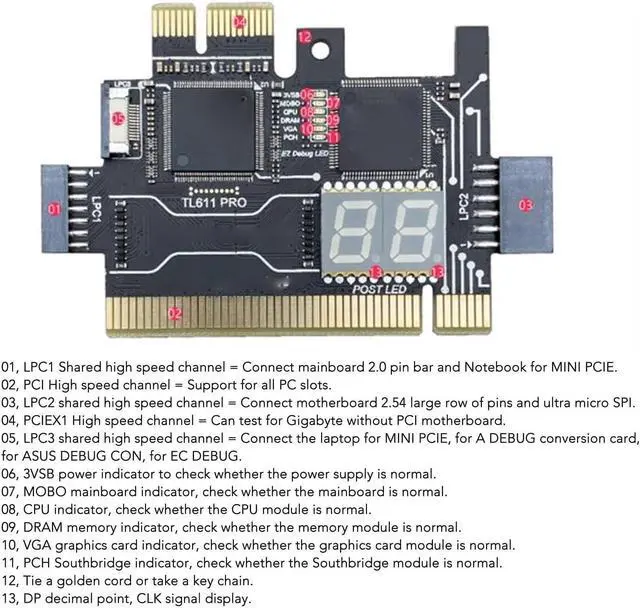

The diagnostic card has the following Settings:
01, LPC1 Shared high speed channel = Connect mainboard 2.0 pin bar and Notebook for MINI PCIE.
02, PCI High speed channel = Support for all PC slots.
03, LPC2 shared high speed channel = Connect motherboard 2.54 large row of pins and ultra micro SPI.
04, PCIEX1 High speed channel = Can test for Gigabyte without PCI motherboard.

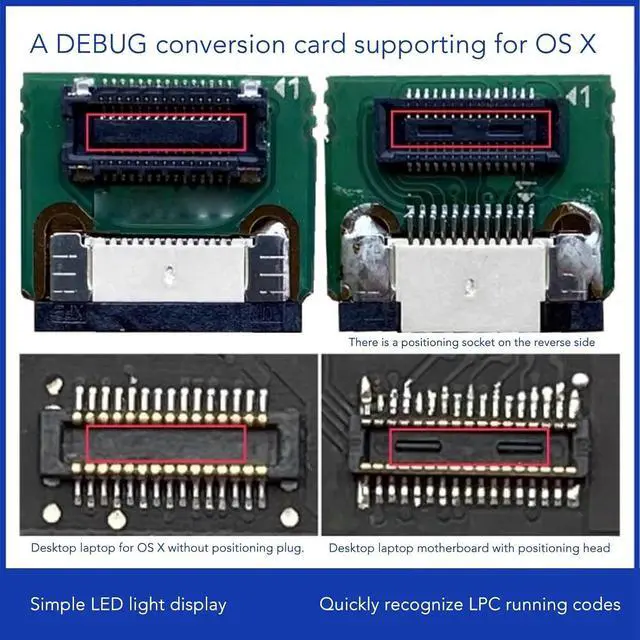

05, LPC3 shared high speed channel = Connect the laptop for MINI PCIE, for A DEBUG conversion card, for ASUS DEBUG CON, for EC DEBUG.
06, 3VSB power indicator to check whether the power supply is normal.
07, MOBO mainboard indicator, check whether the mainboard is normal.
08, CPU indicator, check whether the CPU module is normal.
09, DRAM memory indicator, check whether the memory module is normal.
10, VGA graphics card indicator, check whether the graphics card module is normal.
11, PCH Southbridge indicator, check whether the Southbridge module is normal.
12, Tie a golden cord or take a key chain.
13, DP decimal point, CLK signaldisplay.

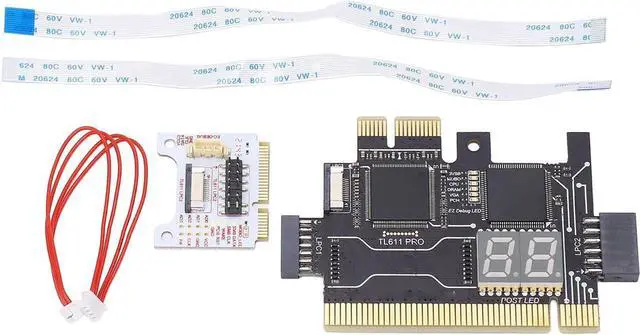

Package List:
1 x Diagnostic Card
1 x Connection Cable
1 x Adapter Card
2 x Flat Cable
TL611 Pro Multipurpose Mainboard Debug Card, Laptop EC DEBUG Adapter Card Compatible with Asus, HP, MSI, Gigabyte, Support PCI E,Mini PCI E,LPC, Easy to Use, Reliable Performance
