ME936 4 G LTE module NGFF WCDMA quad-band EDGE / GPRS / GSM Penta-band DC-HSPA + / HSP WWAN CARD,ME936 4G WCDMA/HSPA+ FDD LTE FDD-LTE NGFF M.2 WWAN network Card PK ME906 4G Module

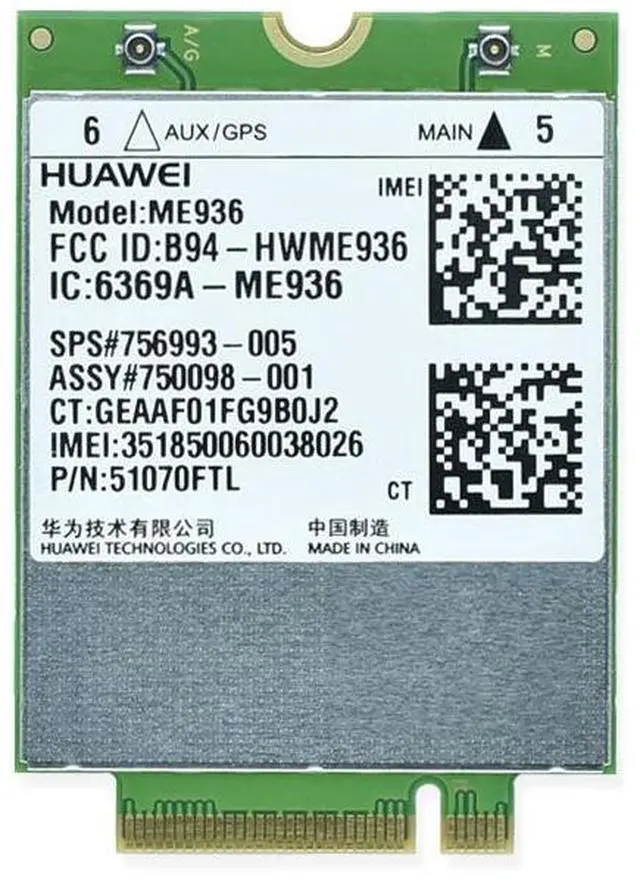

Hua Wei ME936 is an LTE module 4G NGFF interface, LTE support (FDD) B1 / B2 / B3 / B4 / B5 / B7 / B8 / B13 / B17 / B20, penta-band DC-HSPA + / HSPA + / HSPA / WCDMA for North American and European network covering low power consumption, global navigation satellite systems (GNSS), and North American and European carrier certifications, which makes it easier and more flexible, and integration into the terminals. In addition, the ME936 support NGFF characteristics to optimize performance, power consumption, and ease of use. ME936 is an ideal choice for the Ultrabook, laptop, tablet, and so on. D.

features
Brand: Huawei
Model: ME936

operating range
LTE: BI / B2 / B3 / B4 / B5 / B7 / B8 / B13 / B17 / B20
WCDMA / HSDPA / HSUPA / HSPA +: 850 MHz / 900 MHz / 1700 MHz
(AWS) / 1900 MHz / 2100 MHz
GPRS / EDGE: 850 MHz / 900 MHz / 1800 MHz / 1900 MHz
GPS / GLONASS: L1

Data transfer rate:
WCDMA PS: UL (384 kbps) / DL (384 kb)
DC-HSPA +: UL (11 Mbps) / DL (42 Mbps)
LTE FDD: UL (50 Mbps) / DL (100 Mbps) bandwidth @ 20 M (CAT3)
GPRS / EDGE multi-slot class 12
GPRS data services: 85.6 kbit / UL / DL 107 kbit / s
EDGE: 236.8 kbit / UL / DL 296 kbit / s
HSPA +: 5.76 Mbps UL / DL 21.6 Mbit / s


Interface: NGFF
: Supply voltage range: 3.135 V ~ 4.4 (3.3 recommended)

GPS / GLONASS
GNSS: Autonomous GPS, A-GPS, GPS XTRA, GLONASS

Features:
Hot-swappable SIM
IPV6
BodySAR
Ultrabook function support (LAW, wi-fi unloading, DPTF)
MIN USB (Link Power Management)
tunable Antenna
MO and MT support
PDU format support
point-to-point base station and

The interface antenna
Main and auxiliary (supporting Diversity and GPS at the same time)
MM4829-2702RA4 for MURATA or other equivalent parts
Sms-new signal message.
SMS Management: read SMS, write SMS, send SMS, delete
SMS and SMS list
MO and MT support
point-to-point

operating system
Windows 7/8 / 8.1 / Android 4.0 or later / Chrome OS

physical Features
Dimensions (L × W × H): 42 mm × 30 mm × 2.3 mm
Weight: about 6 grams


package:
1 * Huawei ME936 4 G LTE module
