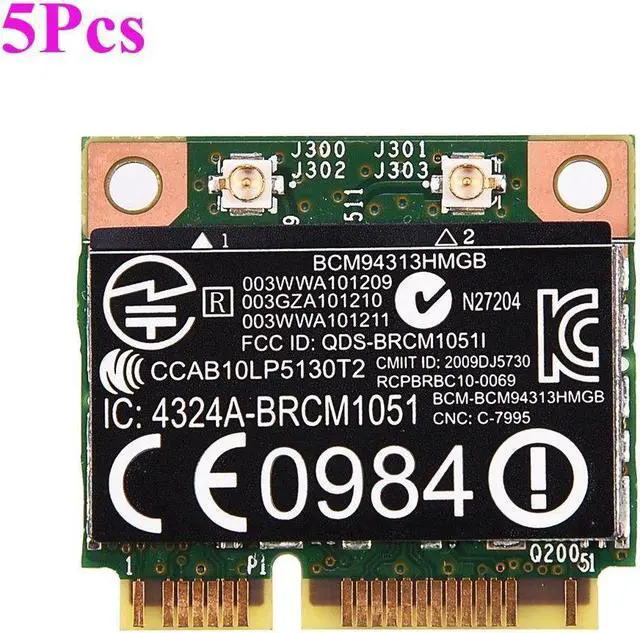

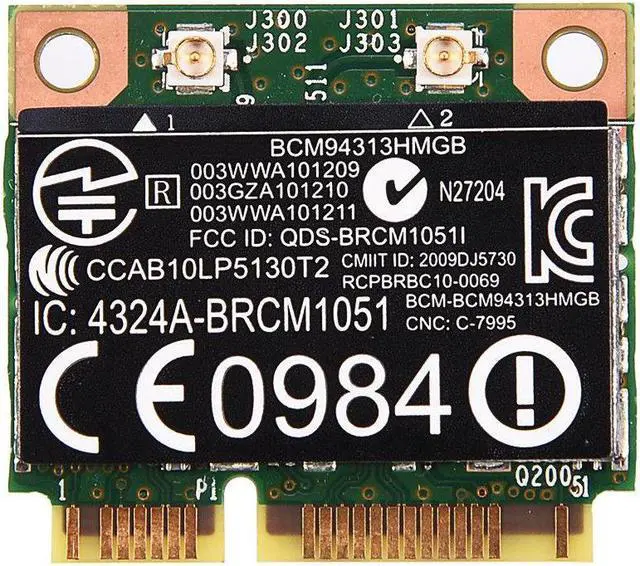

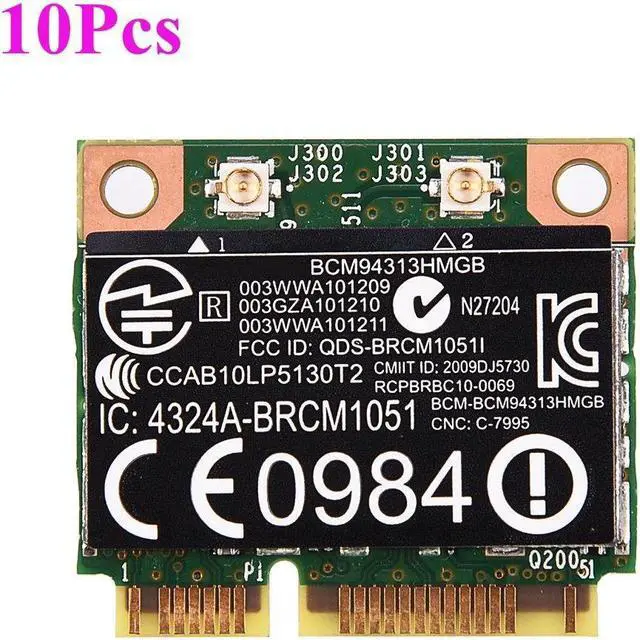

BCM94313HMGB Mini PCI-E Bluetooth4.0 WiFi Wireless Wlan Card For Intel HP Lot ES

BCM94313HMGB Mini PCI-E Bluetooth4.0 WiFi Wireless Wlan Card For Intel HP Lot ES
Details
Description:

The BCM20702 is a single-chip Bluetooth processor with a high performance integrated 2.4-GHz RF transceiver. It is fully compliant with Bluetooth 4.0 and prior standard features. The BCM20702 offers unmatched integration, including on-board memory for a very small footprint and low cost of implementing a Bluetooth system.



Features:

Designed to take advantage of the Bluetooth low energy (BLE) standard, enabling both modes in PCs and consumer electronics devices.
Superior integrated RF design enables much higher output power and lower input sensitivity, with the built-in Class 1 PA (capable of transmitting +10 dBm output power) able to support a 2.5V power supply.
Leading Packet Loss Concealment (PLC) technology, which reduces packet loss and bit error rates.
BCM20702 can effectively combat interference and reduce dropped connections that result from distance and physical obstructions.
Higher and more reliable throughput, greater link-range and superior audio performance.

Specifications:

Model: BCM4313 BCM2070 Bluetooth 4.0

Interface: Mini PCI-e

Frequency Band: 2.4GHz

WIFI: 4313b/g/n

BIOS: Standard

Compliant Standards: 802.11 A / B / G / N

Size: Approx. 26.8 * 30 mm / 1 * 1.2 in

Package Weight: About 5g

Compatible with:

For HP Pavilion dv3-4000 Notebook PC

For HP dv5-2000 Notebook PC

For HP dv6-3000 Notebook PC

For HP dv6-6000 Notebook PC

For HP dv7-6000 Notebook PC

For HP dm1-3000 Notebook PC

For HP dm3-2000 Notebook PC

For HP dm4-1000 Notebook PC

For HP dm4-2000 Notebook PC

For HP G4 Notebook PC

For HP G6 Notebook PC

For HP G7 Notebook PC

For minibook mini 110-3500

For minibook mini311-3000

For minibook mini5103

For minibook mini210

For HP Compaq Presario compaq CQ32 Notebook

For HP Compaq Presario CQ43/intel Notebook

For HP Compaq Presario CQ62/AMD Notebook

For HP Compaq Presario CQ72 Notebook

For HP Compaq Presario CQ56 Notebook

Package Included:

1/5/10 x BCM94313HMGB Wifi Card



Note:

Compatible for Intel / ATI / AMD MiniPCI-e computer.

Not for Lenovo / IBM / SIS / VIA computer.
