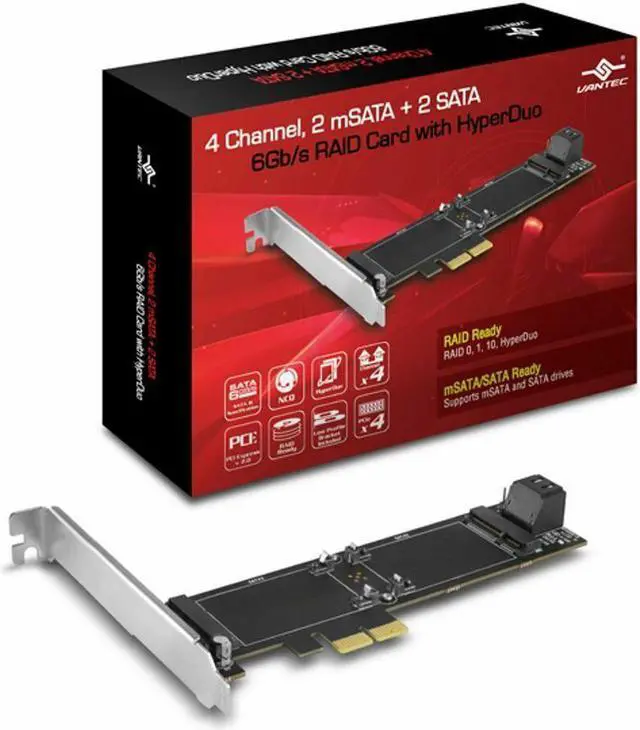

Vantec UGT-MST644R 4 Channel, 2 mSATA+2 SATA 6Gb/s PCIe RAID Card with HyperDuo

Vantec UGT-MST644R 4 Channel, 2 mSATA+2 SATA 6Gb/s PCIe RAID Card with
HyperDuo Condition: New
Manufacturer: Vantec
Part Number: UGT-MST644R The UGT-MST644R design encompasses great design and server technology into simple RAID Host controller. It uses the latest storage technology to bring Solid State Memory (mSATA) to cache data in the HDD drive to gain unparalleled access speed. This RAID Host controller enables the use of the industrys newest and fastest hard drives at 6Gb/s while providing backward compatibility to legacy SATA 3Gb/s. It uses the same cable and connectors as previous SATA generations to ease integration. Come standard for PCI Express 2.0 to double the bandwidth of the existing PCI Express bus for faster data throughput thus enhancing system performance for every type of computer user. Each PCI-Express 2.0 lane provides up to 500MB/s of throughput. It is also backward compatible with previous generation of PCI Express 1.0 technology. Using the onboard RAID firmware, the 2 mSATA port and 2 SATA port attached to this controller can be easily configured as 4 individual ports with no RAID or with RAID 0, RAID 1, RAID 10, and HyperDuo capabilities.
More Features: Two 7Pin SATA connectors and two mSATA (mini PCIe) socket on board Mounts two mSATA SSDs and two SATA HDDs/SSDs in PCIe slot Compliant with PCI-Express Specification v 2.0 and backward compatible with PCI-Express 1. x Compliant with Serial ATA Specification 3.0 PCI Express x2 interface, and compatible with PCI Express x4, x8 and x16 slots Supports communication speeds of 6.0G bps, 3.0G bps, and 1.5G bps HyperDuo technology to maximum SSD performance Support TRIM to extend SSD durability Hot Plug and Hot Swap on SATA connection Supports Port Multiplier FIS/CBS and Native Command Queuing (NCQ) Support ATA and ATAPI commands Compatible with SATA III/II/I Hard Drives
Support RAID function: RAID 0, RAID 1, RAID 10 and
HyperDuo Specifications:
Model: UGT-MST644R
Drive Capacity: 8TB*
Hard Drive Ports: 2 x mSATA 6Gb/s Ports 2 x SATA 6Gb/s Ports (backwards compatible with
SATA II/I) Dimension: 155 x 51 x 18mm
Interface: PCI Express x2, compatible with PCI Express x4, x8 and x16 slots
