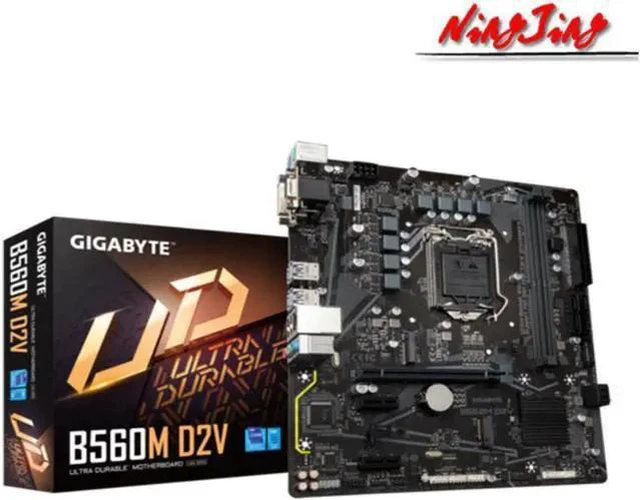

GA B560M D2V (rev. 1.0) Micro ATX Intel B560 DDR4 3200 64G PCI-E 4.0 SATA M.2 Support 10 / 11 gen LGA 1200 CPU Motherboard

GIGABYTE Model:GA B560M D2V (rev. 1.0)
Bundle:Motherboards
Quality Certification:ce
Chipset:Intel Others
Socket Type:LGA1200
Storage Interface Type:SATA
Item Condition:
Onboard LAN:1x RJ45
Package:Yes
Model Number:GA B560M D2V (rev. 1.0)
Application:Desktop
With CPU:No
Special Function:RGB
Maximum Ram Capacity:64 GB
Chipset Manufacturer:Intel
Back I/O Ports:1x RJ45
Support Memory Type:DDR4
Usage Scenario:others
Number of PCI:1
PCI - E standards:PCI - E 4.0
Origin:CN(Origin)
Number of PCIe x 16:1
Number Of Memory Slots:2
Memory channel:Double
Number of SATA Ports:4
Support USB Type:USB 2.0
Certification:FCC
Form Factor:Micro-ATX
Supports M.2 SSD:2242
Number of M.2:1
Warranty:Three years warranty
Dimension:24.4 X 22.5cm
Memory slot:Supports 2 X 32G memory at the most
Motherboard :None

Motherboard chip
Integrated chip sound card/nic
Main chipset Intel B560
Chipset Intel B560 chipset is used
Display chip CPU Built-in display chip (CPU support required)
Audio chip integrated Realtek 7.1 channel sound chip
Nic chip Onboard Realtek GE NIC
Processor specifications
CPU type Tenth generation/tenth generation Core/Pentium/Celeron
CPU slot LGA 1200
Memory size
Memory type 2 x DDR4 DIMMs
The maximum memory capacity is 64GB
The memory support dual channel DDR4 3200/3000/2933/2666/2400/2133 MHZ memory
ECC UN-Buffered DIMM 1Rx8/2RX8 memory is supported
Support non-ECC UN-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
Extreme Memory Profile Memory is supported
Storage extension
Pci-e Standard PCI-E 4.0
Pci-e slot 1 x PCI-E X16 graphics card slot, 2 x PCI-E X1 slot
Storage ports 2 x M.2 ports and 6 x SATA III ports
The I/O interface
USB port 6 x USB3.2 Gen1 port (4 built-in +2 backplane)
8 x USB2.0 ports (6 built-in +2 backplane)
Video interface 1 x VGA interface, 1 x DVI interface
Power interface one 8-pin, one 24-pin power interface
Other interfaces 1 x PS/2 mouse interface, 1 x PS/2 keyboard interface, 1 x RJ45 network interface, 3 x audio interface
The plate type
Board type Micro ATX board type
Overall size 24.4×22.5cm
Software management
BIOS performance one 256 Mbit Flash
Use authorized AMI UEFI BIOS
PnP 1.0A, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Other parameters
Power supply mode 6+2 phase
Hardware monitoring voltage detection
Temperature detection
Fan Speed Detection
Fan Fault Warning
Intelligent fan control
Other features Support APP Center
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support the Q - Flash Plus
Support the Q - Flash
Support Xpress Install
