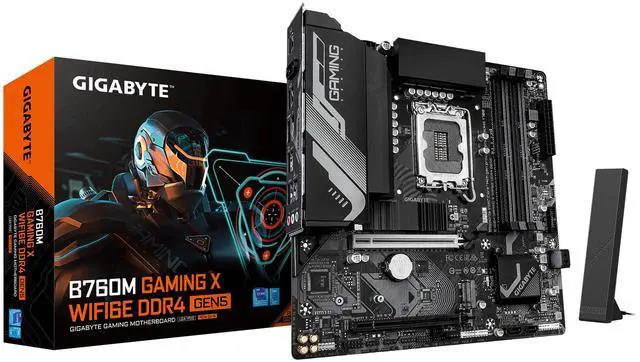

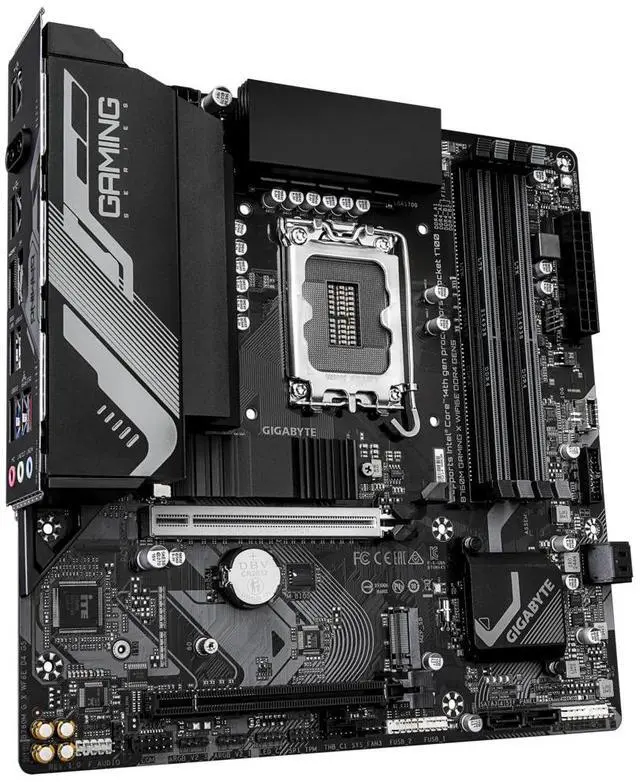

GIGABYTE B760M GAMING X WIFI6E DDR4 GEN5 LGA 1700 Intel B760 M-ATX Motherboard with DDR4, Dual M.2, PCIe 5.0, Front USB 3.2 Gen 2 Type-C, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch

CPU

LGA1700 Socket: Supports 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold, and Celeron® Processors

(Please refer to the GIGABYTE website for the list of supported processors)

L3 Cache varies with CPU

Chipset

Intel® B760 Express Chipset

Memory

Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s

4 x DDR DIMM sockets supporting up to 128 GB (a single socket supports up to 32 GB capacity)

Support for Dual Channel memory technology

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operating in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) (XMP) Memory

(CPU and memory configuration may affect supported memory types, speeds, and the number of DRAM modules. Please check the GIGABYTE website for a list of supported memory modules.) Display Capabilities

Based on processors with display capabilities - Supports Intel® HD Graphics:

- One HDMI port, supporting resolutions up to 4096x2160@60 Hz

* Supports HDMI 2.1 and HDCP 2.3.

**Only interfaces compatible with the native HDMI 2.1 TMDS specification are supported.

- One DisplayPort, supporting resolutions up to 4096x2304@60 Hz

* Supports DisplayPort 1.2 and HDCP 2.3.

(Display specifications may vary depending on the CPU used.)

Audio: Integrated Realtek® audio chip

Supports High Definition Audio

Supports 2/4/5.1/7.1 channels

* Audio jack functionality can be redefined via audio software. To enable 7.1 channel audio output, please access the audio software settings.

Supports S/PDIF output

Network: Integrated Realtek® 2.5GbE network chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module: Intel® Wi-Fi 6E AX210

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz wireless bands

- BLUETOOTH 5.3

- Supports 11ax 160MHz wireless communication standard

(Actual transmission speed will vary depending on the usage environment and equipment.)

Expansion Slots:

Based on CPU:

- 1 PCI-E x16 slot, supporting PCIe 5.0 and x16 operating specifications (PCIEX16)

* The PCIEX16 slot only supports graphics cards or NVMe SSDs. If only one graphics card is installed, it must be installed in the PCIEX16 slot.

Based on Chipset:

- 1 x PCI-E x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage Interface

Based on CPU:

- 1 x M.2 slot (Socket 3, M key, Type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Based on Chipset:

- 1 x M.2 slot (Socket 3, M key, Type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 x SATA 3.0 connectors

Support for building RAID 0, RAID 1, RAID 5, and RAID 10 configurations with SATA drives

USB

Based on Chipset:

- 1 x USB Type-C® port, supporting USB 3.2 Gen 2 (requires connection via an internal USB header on the motherboard)

- 5 x USB 3.2 Gen 1 ports (3 on the back panel; 2 require connection via an internal USB header on the motherboard)

- 1 x USB 2.0/1.1 port on the back panel

Based on Chipset + 2 x USB 2.0 Hubs:

- 8 x USB 2.0/1.1 ports (4 on the back panel; 4 require connection via internal USB headers on the motherboard)

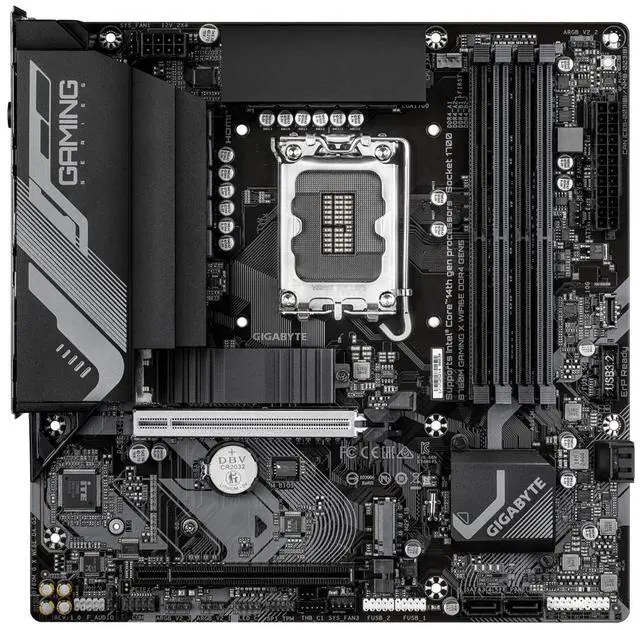

Internal Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x System fan headers

3 x Addressable LED strip headers

1 x RGB LED strip header

2 x M.2 SSD slots

4 x SATA 3.0 connectors

1 x Clear CMOS jumper

1 x Front panel audio header

1 x S/PDIF Out header

1 x USB Type-C® header, supporting USB 3.2 Gen 2

1 x USB 3.2 Gen 1 Headers

2 x USB 2.0/1.1 Headers | 2 x Thunderbolt Add-in Card Headers

1 x Trusted Platform Module (TPM) Header (GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 modules only)

1 x COM Port Header

1 x Q-Flash Plus Button

1 x System Reset Header

1 x Clear CMOS Header

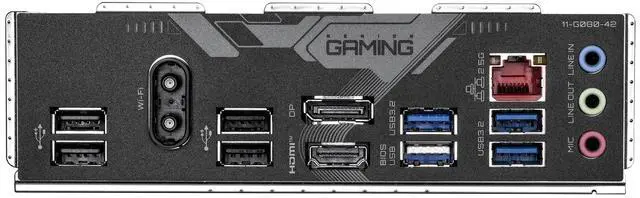

Rear Panel Connectors

3 x USB 3.2 Gen 1 Ports

5 x USB 2.0/1.1 Ports

2 x Antenna Connectors (2T2R)

1 x HDMI Port (Note)

1 x DisplayPort (DP) (Note)

1 x RJ-45 LAN Port

3 x Audio Jacks

(Note) Support for this specification depends on the CPU.
