Phone Network LAN Ethernet RJ45 RJ11 Telephone Wire Tracker Finder Cable Tester

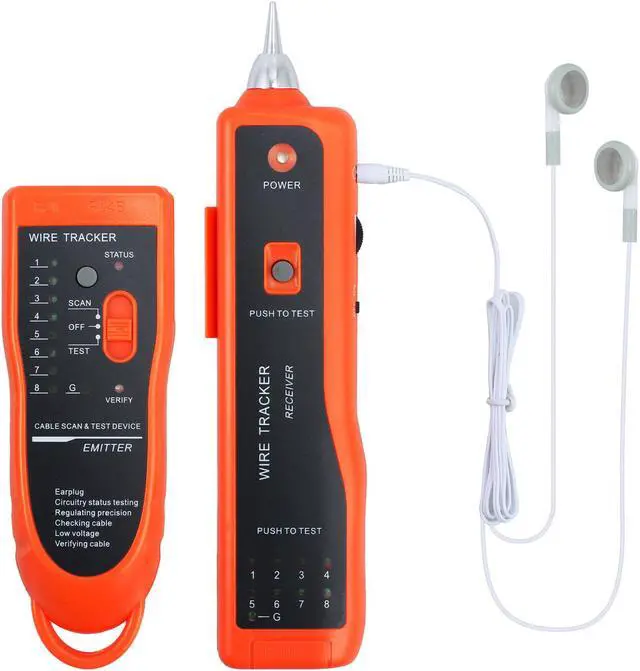

Overview: This professional wire tracking set is the latest instrument specialized in tracking of various commonly used cable and wire. The set composed of an emitter and a receiver and the pair allows us to find target wire among plenty rapidly and accurately. The receiver have both sound and LED signal indicators. By comparing the volume of the "tout" sound and the brightness of LED, you can find the target wire with the highest volume and brightness. This tracker can be use to trace a wide range of cable including telephone wire, computer network cable, TV cable and other weak current electric wires. Moreover, it has other useful functions including continuity testing, network cable sequence collation, open/short circuit testing and DC level testing. This instrument set is an ideal tool for technicians in installation and maintenance of weak current systems such as communication line and comprehensive wiring circuit. It is widely applicable to telephone systems, computer networks and other metal wire circuit and fields.
Features: Rapidly identify the target wire among plenty of wires Rapidly identify the target wire among plenty of wires Locating target wire in wall without drilling
Network wire collation function: Rapidly identify the target wire among plenty of wires Rapidly identify the target wire among plenty of wires Locating target wire in wall without drilling

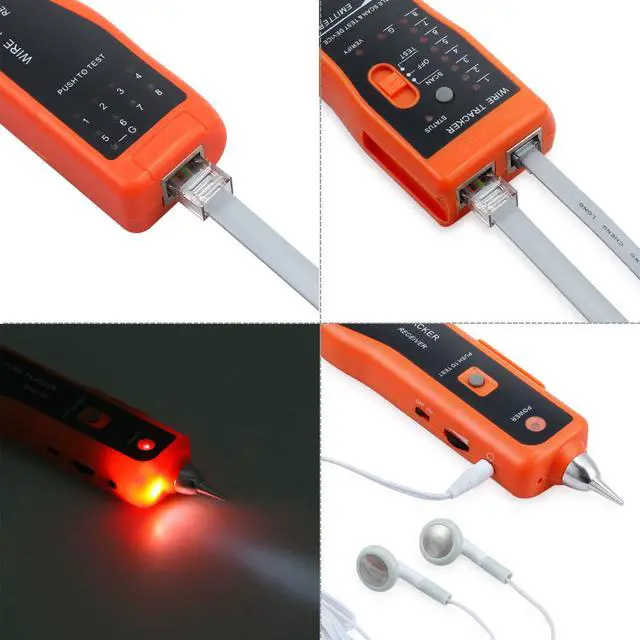

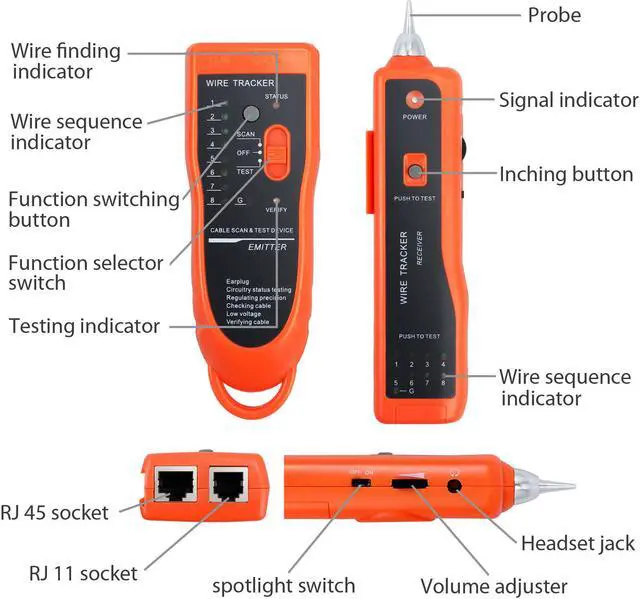

Cable status testing (2-wire): High sensitivity & strong anti-jamming ability - Bright white LED spotlight for dark environments - Earphone for noisy environments - Adjustable volume of signal - Auto time-delay power off - Low battery indication - Comes with RJ45 to BNC Converter - Trace telephone wire/ LAN cable - Trace wire in electrical system - Verify LAN cable condition - Continuity test - Low battery Indication - Bright white LED flash light
Cable Assignment Test: Open, short and cross of LAN cables, 2-wire (RJ11) / 4-wire (RJ45) Telephone cable
Cable State Testing (2-wire):
1. Line DC detecting and anode, cathode determination
2. Ringing signal detecting
3. Open, short and cross testing
Specification:
Color: Orange (as shown in the picture).
The max working current:
emitter: <=10mA; Receiver: <=30mA.
Signal output electric status: 8Vp-p.
Signal transmission format: multi-frequency impulse.
Distance of signal transmission: > =3km.
Power: DC 9V battery (NOT included)
Material: ABS plastic

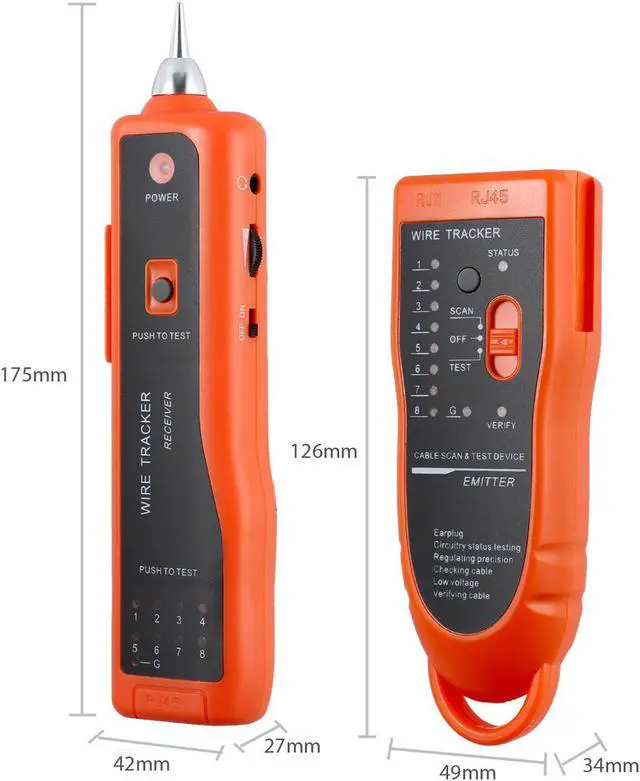

Appearance dimension: 175*42*27mm (receiver); 126*49*34 (emitter).
How to use:
1. Find wire on all types of connected operating Ethernet switch /Router/PC terminal.
2. Rapidly find the target wire from among plenty of telephone wires.
3. Rapidly find the target wire from among plenty of network wires.
4. It can take place of cable tester.
5. Compare the volume of the"tout"sound and the brightness of the signal indicator, Then you can find the target wire which has the highest volume and brightest indicator.

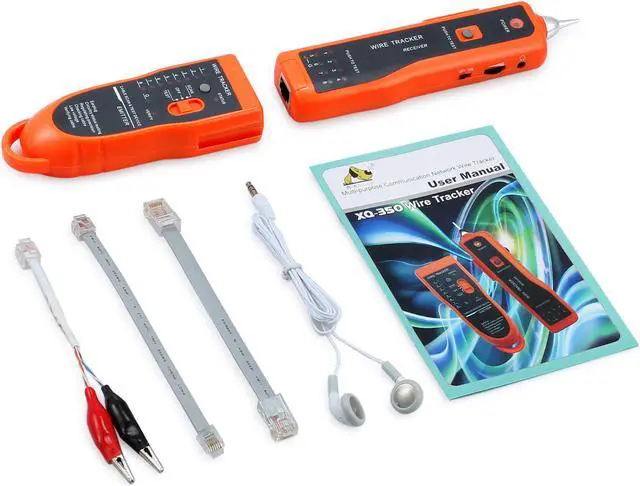

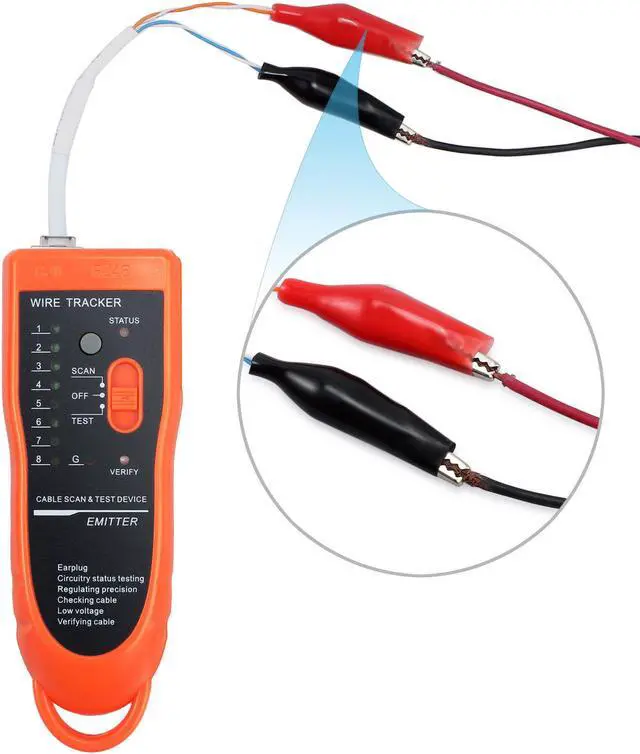

) Package Include: 1 x Cable Transmitter 1 x Cable Receiver/Tracker 1 x RJ45 Cable 1 x RJ11 Cable 1 x Cable with crocodile clamp 1 x Instruction manual 1 x Earphone (Headphone white and black colors are sent at random)
