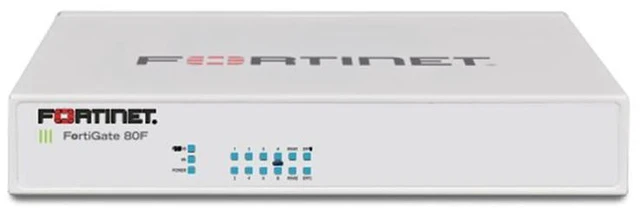

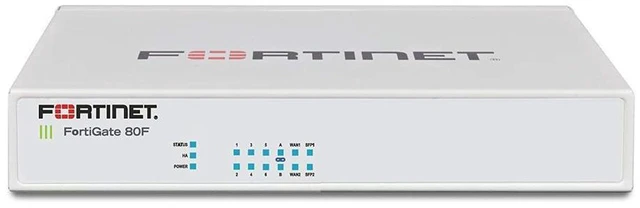

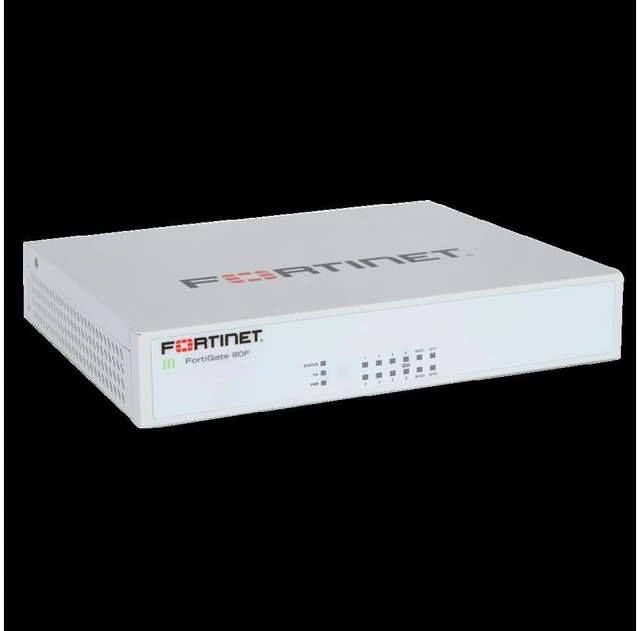

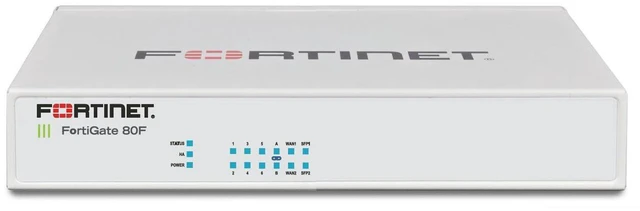

FG-80F-BDL-950-12 - Fortinet FortiGate/FortiWiFi Series Hardware plus 1 Year 24*7 FortiCare and FortiGuard

Product Specifications General Device Type Security appliance Width 8.5 in Depth 6.3 in Height 1.5 in Weight 5.29 lbs Processor / Memory / Storage Processors Installed 1 x Fortinet FortiASIC SOC4 Networking Form Factor Desktop Connectivity Technology Wired Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet Network / Transport Protocol IPSec
Performance IPS throughput: 1.4 Gbps |
NGFW throughput: 1 Gbps |
Threat protection throughput: 900 Mbps | Firewall throughput (1518-byte
UDP): 10 Gbps | Firewall throughput (512-byte
UDP): 10 Gbps | Firewall throughput (64-byte
UDP): 7 Gbps | Firewall latency (64-byte
UDP): 4 µs |
Firewall throughput: 10.5 Mpps | VPN throughput (512-bit
IPSec): 6.5 Gbps |
VPN throughput (SSL): 950 Mbps |
VPN throughput (SSL): 950 Mbps |
SSL inspection throughput: 715 Mbps |
Application control throughput: 1.8 Gbps |
CAPWAP throughput: 9
Gbps Capacity Concurrent TCP sessions: 1500000 |
New TCP sessions per second: 45000 |
Firewall policies: 5000 | Gateway to gateway IPSec
VPN Tunnels: 200 | Client to gateway IPSec
VPN tunnels: 2500 | Concurrent SSL
VPN users: 200 | SSL inspection
CPS: 700 |
SSL inspection concurrent sessions: 100000 |
Virtual domains: 10 | Number of
FortiAP devices: 32 | Number of
FortiAP devices (tunnel mode): 16 | Number of
FortiToken devices: 500 Features VPN support, fanless, 3G/4G USB Dongle Support Encryption Algorithm SSL, TLS 1.3 Expansion / Connectivity Interfaces 8 x 1000Base-T - RJ-45 | 2 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC) (WAN) | 1 x USB 3.0 - Type A | 1 x console - RJ-45 Miscellaneous Compliant Standards UL, VCCI, BSMI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC, ICES, RCM, ICSA SSL-VPN, ICSA IPS Power Power Device External power adapter Installed Qty 2 Voltage Required AC 120/230 V (50/60 Hz) Power Consumption Operational 15.4 Watt Software / System Requirements OS Provided FortiOS Environmental Parameters Min Operating Temperature 32 °F Max Operating Temperature 104 °F Humidity Range Operating 10 - 90% (non-condensing)
