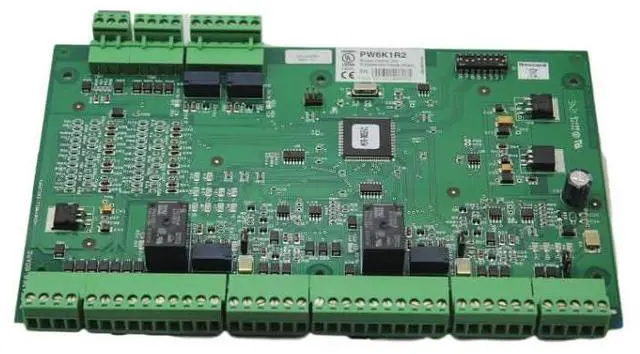

Honeywell PW6K1R2 PW-6000 Pro-Watch Access Control Two Reader Module Board (NOB)

Honeywell PW6K1R2 PW-6000 Pro-Watch Access Control Two Reader Module Board (NOB)

Brand: Honeywell

Model: PW6K1R2

Product Type: Module Board

Condition: New Open Box

Modular design fits a wide variety of applications

User programmable relay outputs allow for specific control needs

User programmable alarm inputs offer flexible system configuration and control

RS485 communication to all modules

Dedicated cabinet tamper and power monitor inputs

Analog to digital converter technology provides digital filtering and input conditioning

Supports the choice of Normally Open/Normally Closed, supervised, and non-supervised circuits

Supports a wide range of reader technologies including Wiegand, magnetic stripe, proximity, and keypad

Up to nine modules, power supply and battery can be accommodated by the PW5K2ENC1, PW5K2ENC2, and PW5K2ENC5 enclosure

System off-line modes customizable per reader include facility code access, locked (no access), and unlocked (full access)

Supports multiple reader and card formats for maximum flexibility and security options

Operating modes include locked, unlocked, facility code, card only, card and PIN, card or PIN and PIN only

Any combination of 32 I/O or reader modules may be connected to the PW6K1IC RS485 ports. 4,000 feet / 1,250 meters total bus length per port (a max. 16 I/O or reader board may connect to the PW3K1IC)

Alarm circuit type Normally Open/Normally Closed, nonsupervised, supervised (with correct EOL)
