SIIG USB C MST Triple Monitor Docking Station for Windows Thunderbolt 3 Compatible [Single 4k, Dual 1080p, Triple 720p] 100W PD - HDMI/VGA/DP, Gigabit Ethernet, SD/TF, USB 3.0 and Audio JU-DK0E11-S1

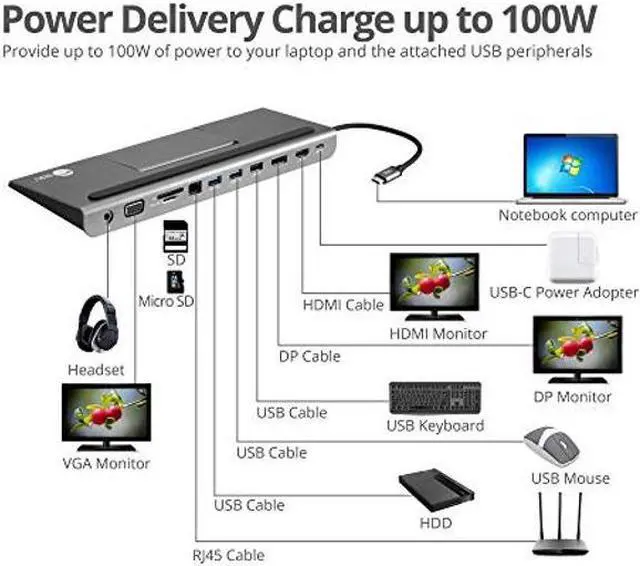

12-In-1 DOCK: Transforms a single USB-C port of your computer (DP Alt mode and Thunderbolt 3 compatible) to connect multiple devices including two or three simultaneous external monitors, various additional devices and the Internet. Features one USB-C port (PD Power), two USB 3.0 (with BC 1.2 charging) and one USB 2.0 ports, one HDMI, one DisplayPort, one VGA port, one Gigabit Ethernet port, one headphone audio jack, SD/TF (Micro SD) Reader and one USB-C PD 3.0 port
MULTI STREAM TRANSPORT TECHNOLOGY - Supports one Ultra HD 4K display or two Full HD 1080p displays (HDMI/DP, DP/VGA, HDMI/VGA) or three 720p video output by MST technology. Note: Video Wall mode requires either an AMD Eyefinity, Intel , or NVIDIA Surround technology graphics adapter. Requires GPU / graphics card to support at least 3 external displays to use all 3 video ports at the same time with extended mode.
WIDE COMPATIBILITY & SUPER SPEED: Windows 10 / 8 / 7. Supports PD 3.0 specification providi

Overview

Specs

Reviews

Important Notes:

Chipset: VL817+RTL8153+GL850+HS100-B
Compatible with USB-C Alt-mode and Thunderbolt 3 technology
Compatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity, NVIDIA Surround and Intel Multiple Displays technology
Supports Power Delivery 3.0 specification up to 100W through USB-C

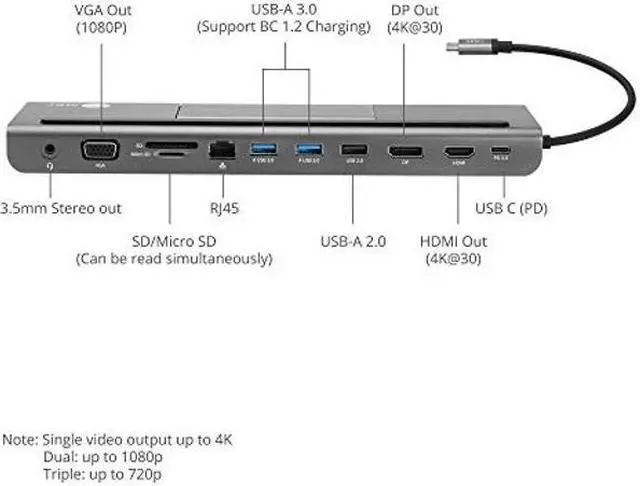

Connectors:
- 1x 24-pin, USB-C, Female, for PC connection
- 1x 24-pin, USB-C, Female, input (PD 3.0)
- 1x 19-pin, HDMI Type-A video, Female, Output
- 1x 20-pin, DisplayPort video, Female, Output
- 1x 15-pin, D-sub, VGA video, Output
- 2x 9-pin, USB 3.0, Type-A, Female, BC 1.2 (5V/1.5A) output
- 1x 4-pin, USB 2.0, Type-A, Female, output
- 1x 8-pin, RJ-45, Gigabit Ethernet, Female, output
- 1x 3.5mm, Audio jack (Speaker/Headphones/Microphone)
- 1x SD/Micro SD Memory Card slot
System Requirements:
- Desktop or laptop computer with an available USB-C port (DP Alt Mode or Thunderbolt 3)
- Note: The docking station's video output will work properly only when the USB-C port transmits DisplayPort signal
- Windows 10 / 8 / 7
Certifications/Standards: FCC, CE, RoHS
Warranty: 2 years limited
Country of origin: China
