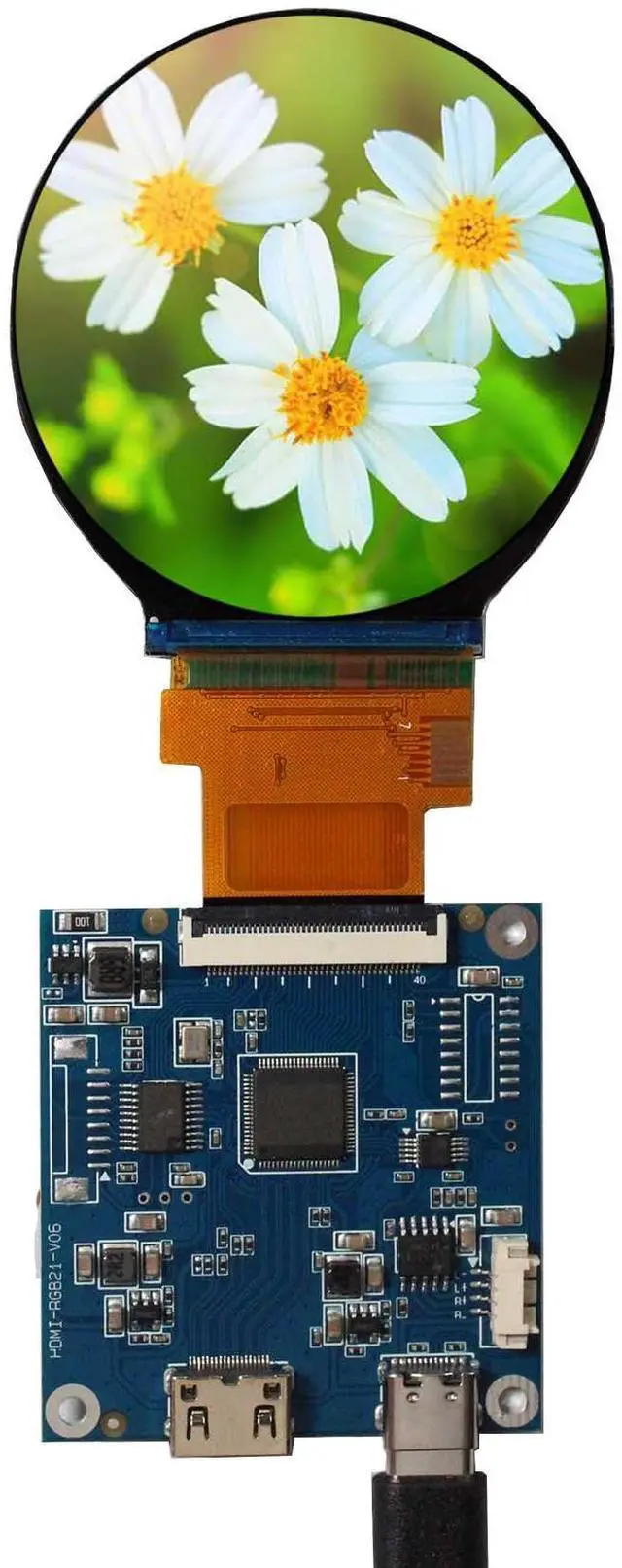

FanyiTek 2.1 inch 480X480 IPS MIPI 300nit Circle LCD Screen and mini HDMI 40 pins Controller Board,Micro USB Power Port
- [(Round MIPI screen)] 2.1" 480x480 VS21001C40 circle display,IPS full viewing angle,outline size:56.18x59.71x2.3(WxHxD)mm,display area:53.28x 53.28(WxH)mm,300nit high brightness ,WLED backlight ,input voltage: 2.8V .
- [(Controller board)] Video input :mini HDMI port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
- [(Input Power)] 5Vdc More than 1A,Pls prepare it seperately .

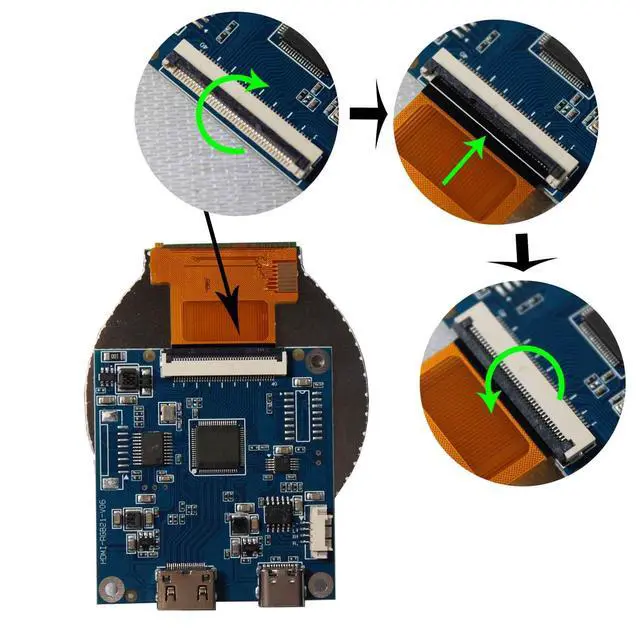

- [(Plug and play)] Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
- [(Packing lists)] 1x Mini HD LCD Board for 40Pin VS-TURBOR-04 ,1x 2.1inch VS21001C40 480x480 LCD Screen
+
+
Overview
Specs
Reviews

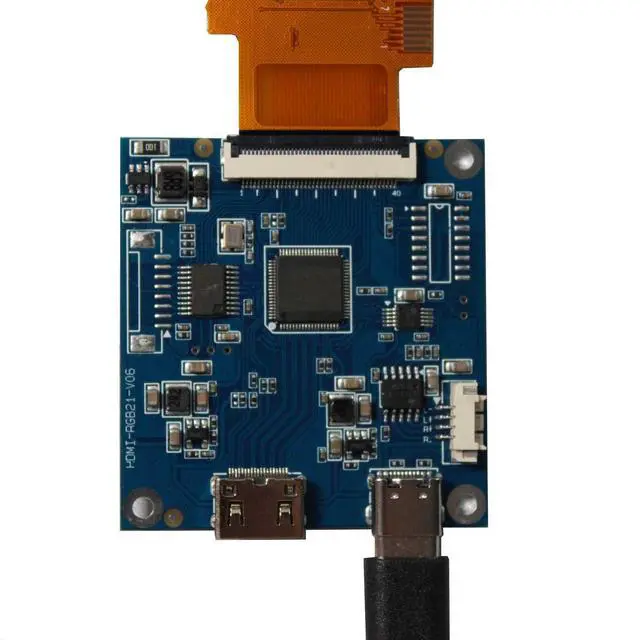

LCD Controller Board:
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Video Input: Micro HD-MI
HD-MI: Support HD-MI 1.4
Board Size: 50mm x 35mm x 5mm
2.1 inch VS21001C40 480X480 LCD Screen:
Display Mode IPS MVA, Normally Black, Transmissive
Resolution 480 (RGB) x480
Outline Size 56.18 x 59.71 x 2.3 (WxHxD)
Display Area 53.28 x 53.28 (WxH)
Brightness 300 cd/m2 (Typ. )
Contrast Ratio 300:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Mipi, 40 pins,
Backlight WLED
Input Voltage 2.8V (Typ. )

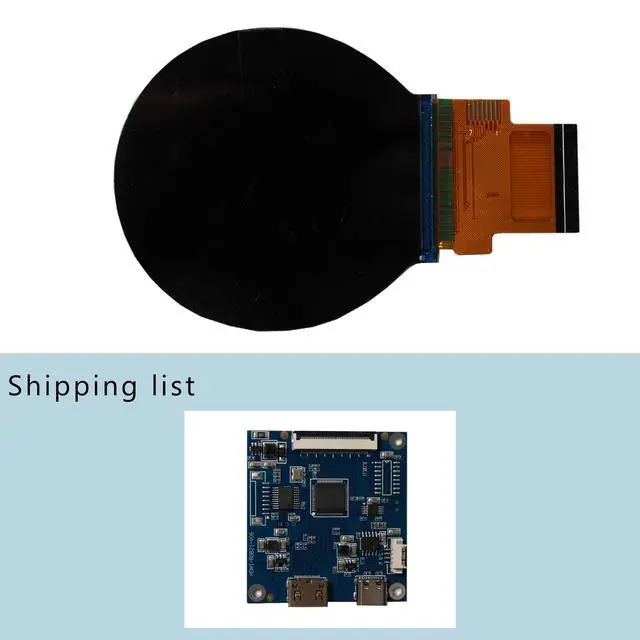

Packing list:
1x Micro HD LCD Board for 40Pin VS-TURBOR-04
1x 2.1 inch VS21001C40 480x480 LCD Screen
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Video Input: Micro HD-MI
HD-MI: Support HD-MI 1.4
Board Size: 50mm x 35mm x 5mm
2.1 inch VS21001C40 480X480 LCD Screen:
Display Mode IPS MVA, Normally Black, Transmissive
Resolution 480 (RGB) x480
Outline Size 56.18 x 59.71 x 2.3 (WxHxD)
Display Area 53.28 x 53.28 (WxH)
Brightness 300 cd/m2 (Typ. )
Contrast Ratio 300:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Mipi, 40 pins,
Backlight WLED
Input Voltage 2.8V (Typ. )
Packing list:
1x Micro HD LCD Board for 40Pin VS-TURBOR-04
1x 2.1 inch VS21001C40 480x480 LCD Screen
