Mini Base Board for Raspberry Pi CM5 Lite/eMMC, Compute Module 5 Mini IO Board with Gigabit Eth/40PIN GPIO/M.2 M Key/USB 3.2/USB 2.0/HDMI Interface etc. Onboard EEPROM and Encryption Chip

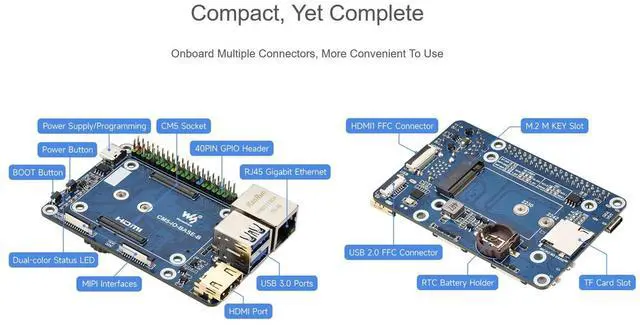

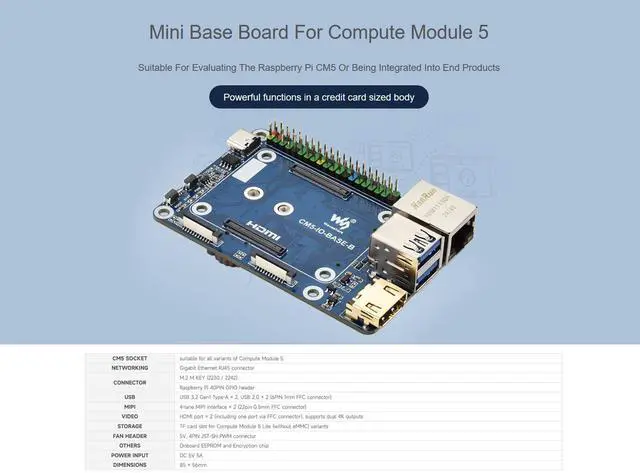

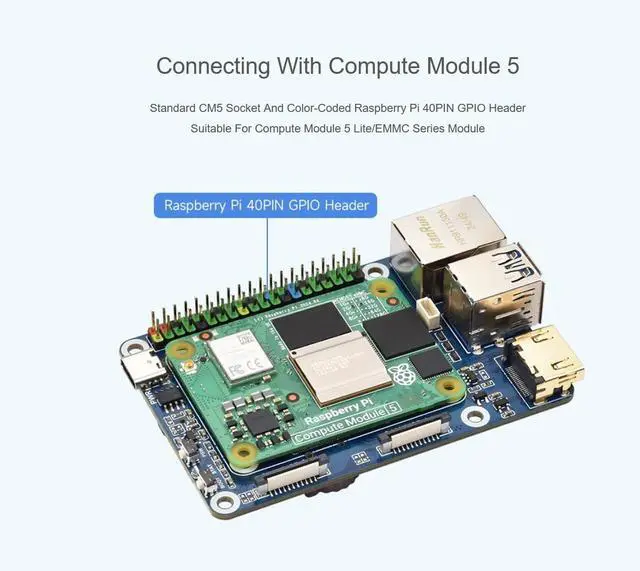

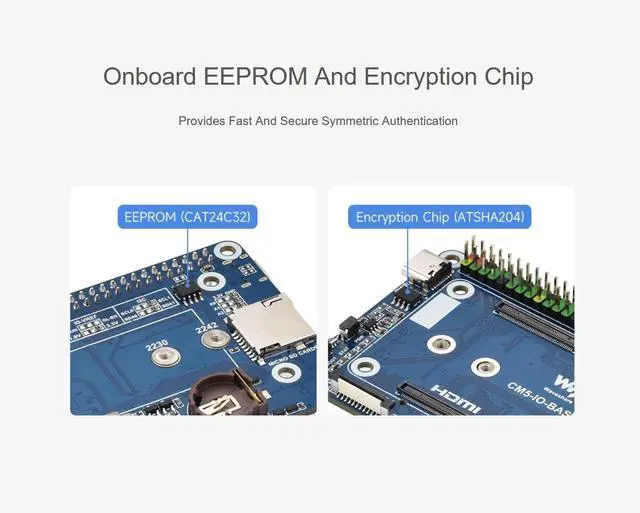

OverviewMini Base Board (B) designed for Raspberry Pi Compute Module 5, onboard multiple connectors, EEPROM and encryption chip, suitable for evaluating the CM5 or being integrated into end products. SpecificationsCM5 socket---suitable for all variants of Compute Module 5Networking---Gigabit Ethernet RJ45 connectorConnector---M. 2 M KEY (2230 / 2242)---40PIN GPIO headerUSB---USB 3.2 Gen1 Type-A 2, USB 2.0 2 (6PIN 1mm FFC connector) MIPI---4-lane MIPI interface 2 (22pin 0.5 mm FFC connector)Video---HDMI port 2 (including one port via FFC connector), supports dual 4K outputsStorage---TF card slot for Compute Module 5 Lite (without eMMC) variantsFan header---5V, 4PIN JST-SH PWM connectorOthers---Onboard EEPROM and Encryption chipPower input---DC 5V 5ADimensions---85 56mmFeatures and Precautions1.

Do not plug or unplug any device other than USB and HDMI when the device is powered on2. Type C can be used as a USB SLAVE interface to flash images. 3. Onboard default 2 USB 3.2 Gen1 ports4. Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to connect, the screen will display in split-screen mode (related to the system version) 5. The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode6.

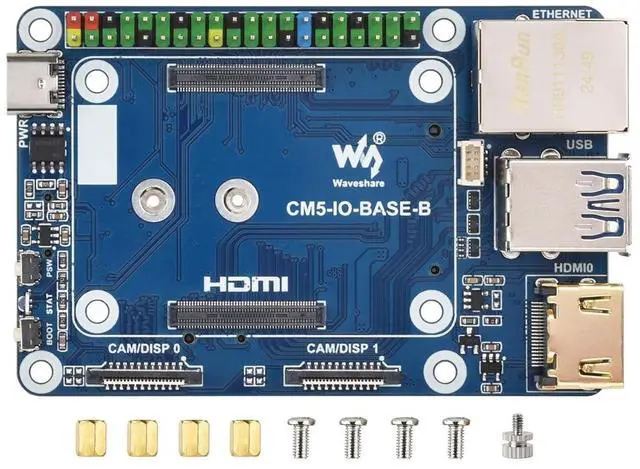

Do not connect other devices when using Type C to flash. Insufficient power supply for burning will cause the device to be unrecognized7. The USB ports have a total maximum power output of 2APackage ContentCM5-IO-BASE-B x1Screws pack x1SSD mounting screw x1NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
