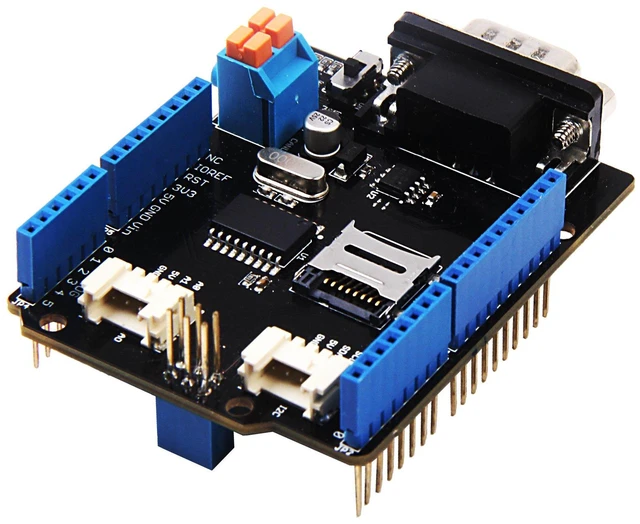

Seeed Studio CAN-Bus Shield V2 Compatible with Arduino for Controller and Transceiver, Arduino Shield Adopts MCP2515 and MCP2551.
- Item #: 9SIVGCKKD35282
- Mfr. Part #: 975991985264
- Notice: When we produced the new batch of CAN-BUS Shield V2, the wire of the back pads was embedded inside the PCB, although the wire between the pads is now not visible on the outside, the inside is still connected, if you want to change the wiring of the pads, you still need to cut the wiring in the PCB first.
- CAN-BUS is a common industrial bus because of its long travel distance, medium communication speed and high reliability. It is commonly found on modern machine tools and as an automotive diagnostic bus. Thanks for CAN-BUS, makers are able to hack their cars more conveniently.
- The CAN-BUS Shield V2 still uses MCP2515 as CAN-BUS controller and MCP2551 as CAN transceiver. OBD-II or CAN standard pinout can be selected by switching jumpers on DB9 interface, the default pinout is OBD-II.

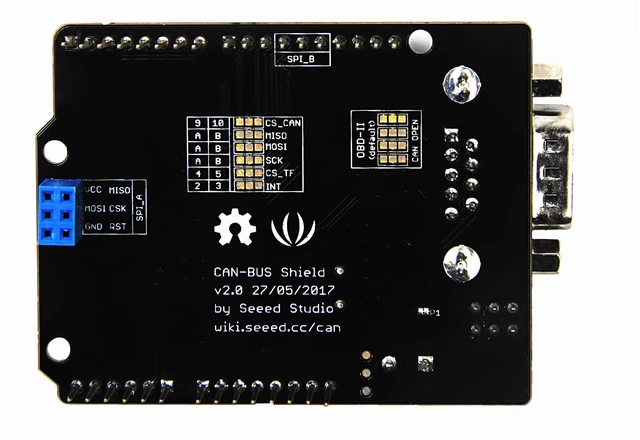

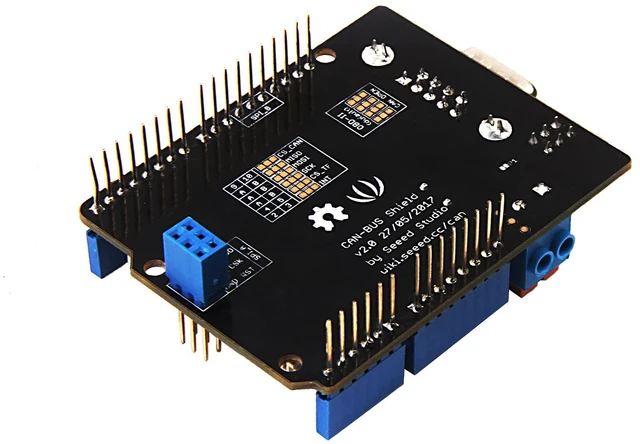

- We add a TF card slot for data storage and the CS pin can be either set to D4 or D5. The INT pin can also be set to D2 or D3 by switching jumpers on the back of the shield.
+
+
Overview
Specs
Reviews
Previously we have made two versions of CAN-BUS Shield, the V 1.0 and V 1.2. They are all awesome shields that widely liked by our users. In order to make it better, several months ago we conducted a survey about CAN-BUS Shield V 1.2 and received many valuable advices (Thanks to all the users who replied to us), so we decided to make an update and here it is - CAN-BUS Shield V2.
The CAN-BUS Shield V2 still uses MCP2515 as CAN-BUS controller and MCP2551 as CAN transceiver. Despite of that, there are really many updates. First and most importantly, OBD-II or CAN standard pinout can be selected by switching jumpers on DB9 interface, the default pinout is OBD-II. Secondly we add a TF card slot for data storage and the CS pin can be either set to D4 or D5. The INT pin can also be set to D2 or D3 by switching jumpers on the back of the shield.
Features:
Implements CAN V 2.0B at up to 1 Mb/s
Industrial standard 9 pin sub-D connector
OBD-II and CAN standard pinout selectable.
Changeable chip select pin
Changeable CS pin for TF card slot
Changeable INT pin
Screw terminal that easily to connect CAN_H and CAN_L
Arduino Uno pin headers
2 Grove connectors (I2C and UART)
SPI Interface up to 10 MHz
Standard (11 bit) and extended (29 bit) data and remote frames
Two receive buffers with prioritized message storage
Technical details

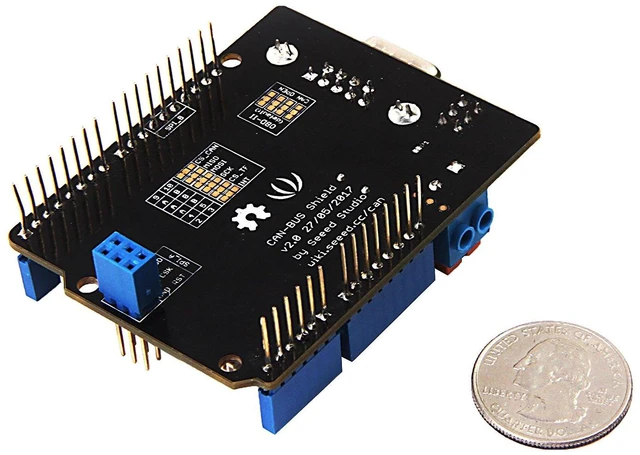

Dimensions: 74.8 mm x 53.4 mm x 27.1 mm
Weight: G. W 48g
Battery: Exclude
Part List

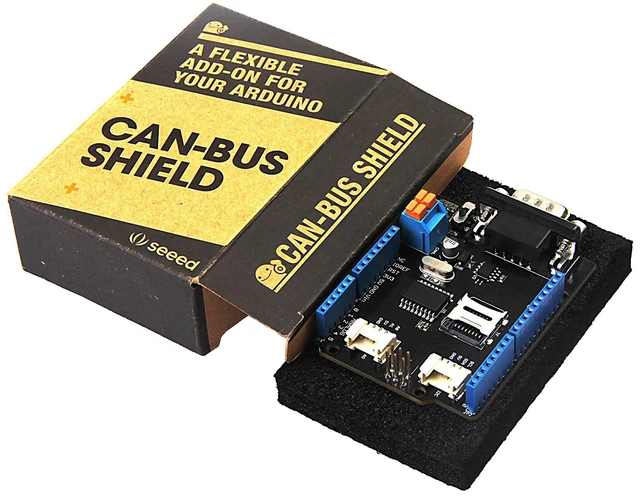

CAN-BUS Shield V2*1
The CAN-BUS Shield V2 still uses MCP2515 as CAN-BUS controller and MCP2551 as CAN transceiver. Despite of that, there are really many updates. First and most importantly, OBD-II or CAN standard pinout can be selected by switching jumpers on DB9 interface, the default pinout is OBD-II. Secondly we add a TF card slot for data storage and the CS pin can be either set to D4 or D5. The INT pin can also be set to D2 or D3 by switching jumpers on the back of the shield.
Features:
Implements CAN V 2.0B at up to 1 Mb/s
Industrial standard 9 pin sub-D connector
OBD-II and CAN standard pinout selectable.
Changeable chip select pin
Changeable CS pin for TF card slot
Changeable INT pin
Screw terminal that easily to connect CAN_H and CAN_L
Arduino Uno pin headers
2 Grove connectors (I2C and UART)
SPI Interface up to 10 MHz
Standard (11 bit) and extended (29 bit) data and remote frames
Two receive buffers with prioritized message storage
Technical details
Dimensions: 74.8 mm x 53.4 mm x 27.1 mm
Weight: G. W 48g
Battery: Exclude
Part List
CAN-BUS Shield V2*1
