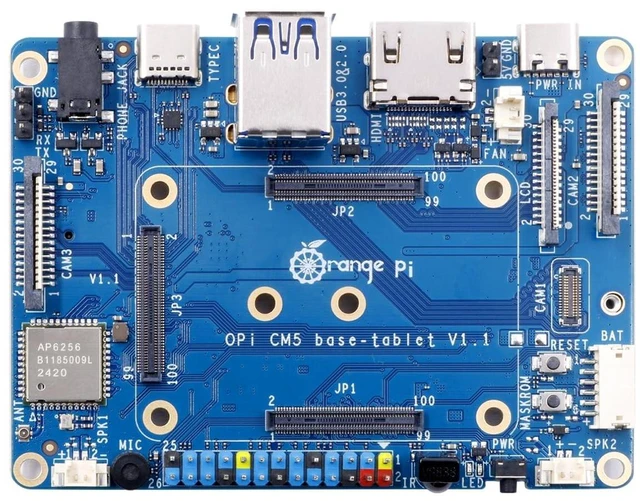

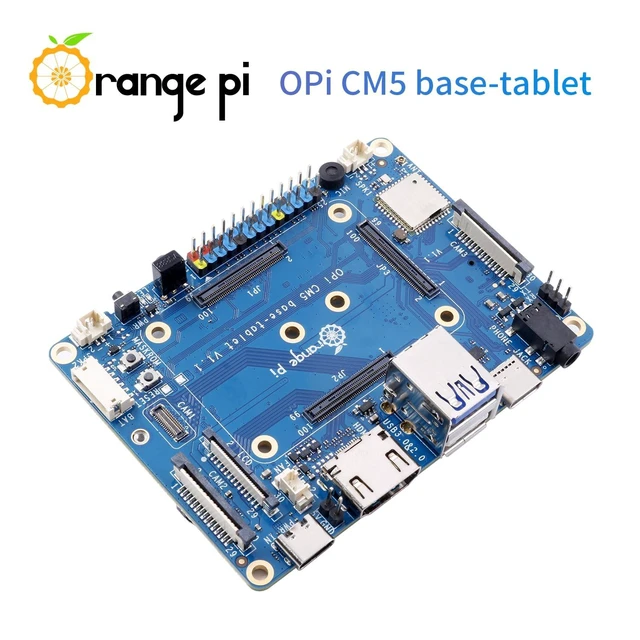

Orange Pi CM5 Tablet Base Board Rich Interface, Up to 8K @60Hz, with Wi-Fi5+BT 5.0, BLE Support for Orange Pi CM5

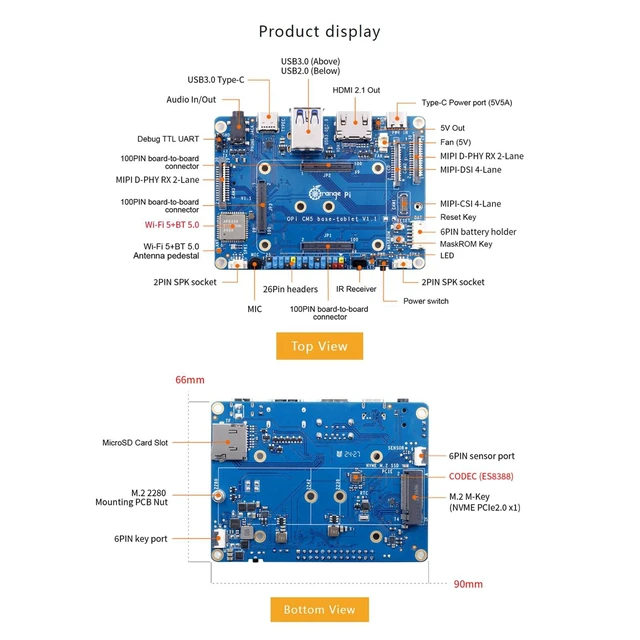

Hardware ParametersBoard-to-board connector: 3*100pin, 0.4 mm pin pitch, connector
model: df40c-100ds-

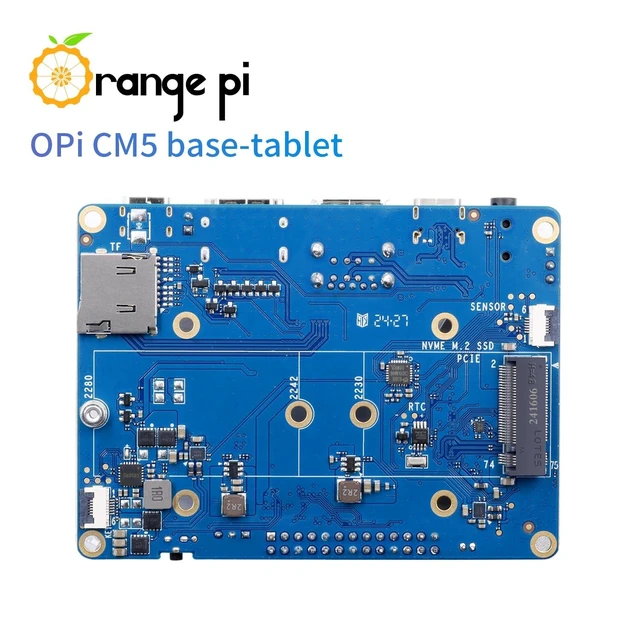

0.4 vMemory: MicroSD (TF) slotM.
2 MKEY slot: NVMe SSD (PCIe 2.0 1 Lane) or
SATA 3.0 SSDUSB: Type-C USB 3.0USB 3.0 +
USB 2.0V ideo output: HDMI 2.1, supports up to 8K @60HzDP 1.4 ALT 4Lane (shared TYPE C connector) MIPI DPHY TX 4
LaneCamera: MIPI CSI 4
Lane2*MIPI DPHY RX 2LaneAudio: 3.5 mm headphone jack audio in/outHDMI 2.1 eARC
Input: onboard MIC
Output: 2*SPK sockets, 2pin 1.25 mmWi-Fi, BT
module: Onboard
Wi-Fi5+BT 5.0 /BLE module: AP6256Wi-Fi
interface: SDIO
3.0BT interface: UART/PCM

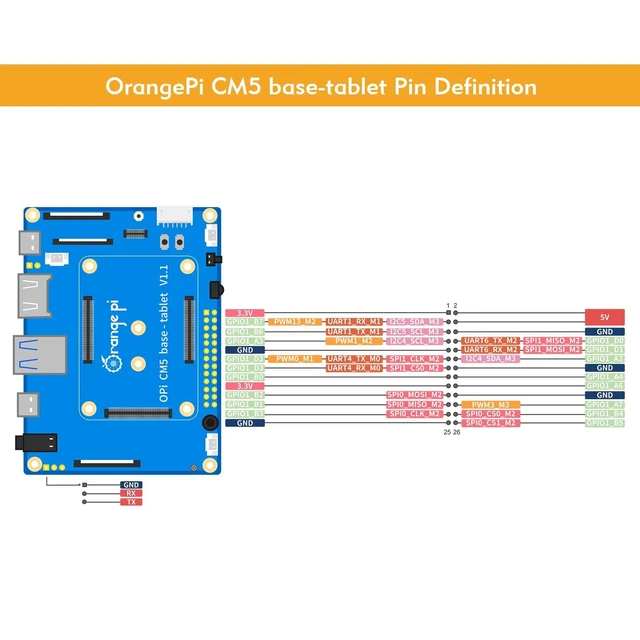

Expansion port - 26pin double-row pins: Dual
row pin: 2.54 mm 26PinSupport DC 5V and 3.3V power output. Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
Button: 1* MaskROM1*RESET1 *
PWR INPower supply: Support Type-C power supply, 5V @ 5ABattery
Holder: Battery
holder: board-to-wire connection, 6pin, 1.5 mm pitch, supports single Li-ion battery charging function, charging current up to 3.78AB utton interface: 6pin FPC socket, pin
distance 0.5 mmSensor interface: 6pin FPC socket, pin
distance 0.5 mmLED: Power
indicator: red
; status indicator:
greenFan: 5V
2pin 1.25 mm socketSPK: 2PIN
1.25 mm socketRTC: Test pad spare, can be connected to 3V spare
RTC batteryDebugging: Debugging serial port
UARTPCB:
Length: 90mm, width: 66mm, thickness: 1.6
mmWeight: 43g
