101AV 23.6" 5MP Super HD-TVI, AHD, CVI & CVBS 16:9 Professional LED Security Monitor, 1 HDMI & 2 BNC Inputs for CCTV DVR Home Office Surveillance System
- 23.6" 5MP Super HD over Coax LED Security Monitor. With a Super HD image quality of 2592 x 1944 pixels, the newest super high definition, HD/TVI and AHD, cameras will look crisp and lifelike. Ultra fine pixel pitch for close viewing in surveillance applications.

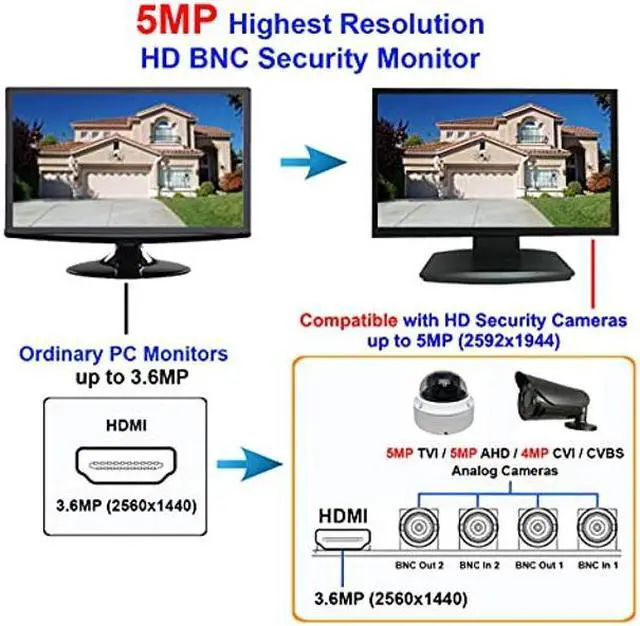

- 1 HDMI input. 2 Super HD Video Input (BNC). 2 Super HD Video Output (BNC) for Second Monitor. Existing standard definition/SD and new super HD surveillance system compatibility with multiple video formats including new 5MP super high definition HD-TVI/AHD/CVI and traditional standard definition CVBS/960H/composite video cameras ( connect with super HD and CVBS Camera directly). Support up to 5MP HD-TVI, 5MP HD-AHD, and 4MP HD-CVI.
- Multiple inputs allow multi-device setups without the need to juggle cords. Fast 5 ms response time to avoid blurred motion monitoring and feed delays on critical moment. Auto display recovery after power interruptions.
- Construction-black plastic bezel and removable base. Wide view
+
+
Overview
Specs
Reviews
101 Audio Video Inc.
101 AV Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products.
This is a 23.6 inch Professional Grade LED Security Monitor. Great reliability rating for 24/7 security application requirements. Ergonomic tilt and swivel design for a more efficient, productive, and safer workplace. User friendly front push button operation. US local support and service.
Specification
Model No.: MT-G236HD
Size: 23.6" Wide Screen
Aspect Ratio (Pixel Count): 16:9 (FHD) (1920 x 1080p)
Viewing Lines (BNC Connector): 1000 TVL
Brightness: 250cd/m2
Contrast Ratio: 1000:1
Response Time: 5 ms
Colors: 16.7M
Viewing Angle: H: 178deg/V: 178deg
Video Inputs: 2 x HD Analog (BNC Connector) (TVI/AHD/CVI/CVBS), 1x HDMI
Video Outputs: 2 x HD Analog (BNC Connector) (TVI/AHD/CVI/CVBS)
HDMI Format: 2560x1440@30/60, 19201080@25/30/50/60HZ, 1600x1200@60HZ, 1440x900@60HZ, 1366x768@60HZ, 1280x1024@60HZ, 1280x720@60HZ, 1024x768@60HZ, 800x600@60HZ
Analog HD:
TVI: 5MP@20fps, 4MP@25fps, 3MP@ 18.75 fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30fps
AHD: 5MP@20fps, 4MP@25fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30fps
CVI: 4MP@25fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30/50/60fps
Power Consumption: 12VDC, 3A, <25W
VESA Size: 100x100mm
Auto Adjustment: Yes
OSD Menu: Yes
OSD Language: English, Spanish, German, Russian, Italian and French
Working Temperature: 0 ~ 40
Work Humidity: 5% - 90%
Packing Dimensions (LxDxW): 22.8" x 4.7" x 17"
Net Weight: 13.9 lbs
Certification: FCC-DOC, CE, and RoHS
What is in the box?
23.6" LED Security Monitor x 1; Power Cord, Adapter, Stand, User's Guide, HDMI Cable
101 AV Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products.
This is a 23.6 inch Professional Grade LED Security Monitor. Great reliability rating for 24/7 security application requirements. Ergonomic tilt and swivel design for a more efficient, productive, and safer workplace. User friendly front push button operation. US local support and service.
Specification
Model No.: MT-G236HD
Size: 23.6" Wide Screen
Aspect Ratio (Pixel Count): 16:9 (FHD) (1920 x 1080p)
Viewing Lines (BNC Connector): 1000 TVL
Brightness: 250cd/m2
Contrast Ratio: 1000:1
Response Time: 5 ms
Colors: 16.7M
Viewing Angle: H: 178deg/V: 178deg
Video Inputs: 2 x HD Analog (BNC Connector) (TVI/AHD/CVI/CVBS), 1x HDMI
Video Outputs: 2 x HD Analog (BNC Connector) (TVI/AHD/CVI/CVBS)
HDMI Format: 2560x1440@30/60, 19201080@25/30/50/60HZ, 1600x1200@60HZ, 1440x900@60HZ, 1366x768@60HZ, 1280x1024@60HZ, 1280x720@60HZ, 1024x768@60HZ, 800x600@60HZ
Analog HD:
TVI: 5MP@20fps, 4MP@25fps, 3MP@ 18.75 fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30fps
AHD: 5MP@20fps, 4MP@25fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30fps
CVI: 4MP@25fps, 2560x1440@25/30fps, 1080P@25/30fps, 720P@25/30/50/60fps
Power Consumption: 12VDC, 3A, <25W
VESA Size: 100x100mm
Auto Adjustment: Yes
OSD Menu: Yes
OSD Language: English, Spanish, German, Russian, Italian and French
Working Temperature: 0 ~ 40
Work Humidity: 5% - 90%
Packing Dimensions (LxDxW): 22.8" x 4.7" x 17"
Net Weight: 13.9 lbs
Certification: FCC-DOC, CE, and RoHS
What is in the box?
23.6" LED Security Monitor x 1; Power Cord, Adapter, Stand, User's Guide, HDMI Cable
