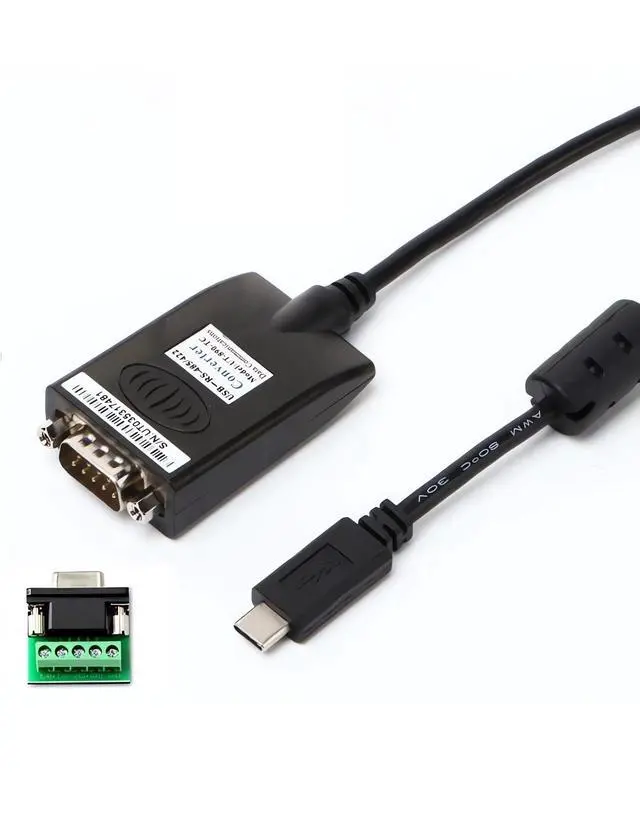

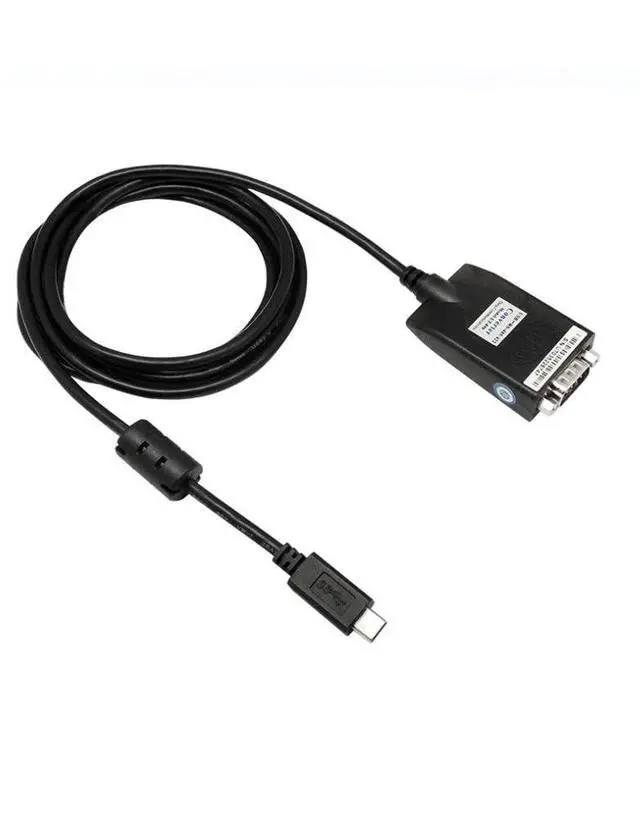

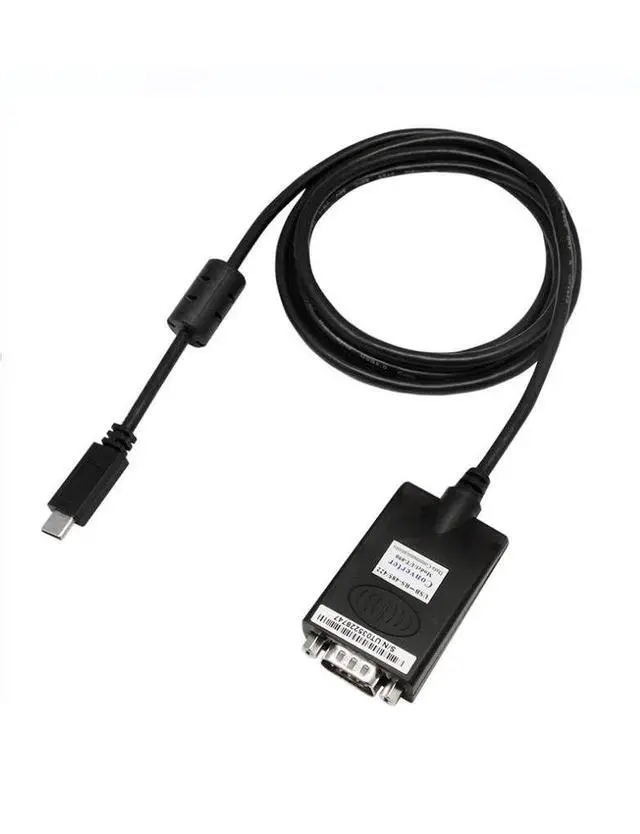

UOTEK UTEK UT-890-TC USB Type-C to RS-485/422 Serial Converter with ESD Protection
- Standards: USB V1.1, 1.0, 2.0, 3.1, RS-485/RS-422 EIA USB signal: VCC, DATA+, DATA-, GND, FG RS-485 signal: T/R+, T/R-, GND RS-422 signal: T/R+, T/R-, RXD+, RXD-, GND Industrial environment
- Working mode: Asynchronous, point to point or point to multi-point, 2-wire half duplex, 4-wire full duplex Direction control: Adopts flow direction auto-control technology, auto identify and control the flow transmission direction Baud rate: 300-921,600bps
- Load capcity: Supports point to multi-point, allows to connect up to 32 sets RS-422 or RS-485 device Transmission distance: RS-485/422 1,200m(9600bps), USB no more than 5m Port protection: 600W surge, 15KV ESD protection Connector: USB-C male, DB9 male Signal: TXD, RXD
- Transmission media: Twisted-pair or shielded wire Baud rate: 921,600bps 300M 38,400bps 600M 9,600bps 1.2KM Dimension: 55mmX36mmX18mm
- Working temperature: -40 to 85 Relative humidity: 5% to 95% Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux ^
+
+
Overview
Specs
Reviews
1.
Standards: conforming to USBV 1.1 2.0 and 3.1, EIA RS-485 and RS-422, backwards compatible. 2.
USB signals: VCC DATA+ DATA- GND FG3.
RS-485 signals: T/R+, T/R-, GND. 4.
RS-422 signals: T/R+, T/R-, R+, R-, GND. 5.
Working modes: asynchronous, point-to-point or point-to-multipoint, 2-line half duplex and 4-line full duplex. 6.
Direction control: adoption of automatic data stream control for automatic recognition and control of data transmission direction. 7.
Baud rate: 300- 921.6K bps, automatic detection of the transmission rate of the serial interface signal. 8.
Workload ability: point-to-multipoint supported, a maximum of 32 RS-422 or RS-485 interface equipments are supported. 9.
Transmission distance: 1200 meters for RS-485/422 end (when 9, 600bps) and a maximum of 5 meters for USB. 10.
Interface protection: 600W lightning strike and surge protection and 5KV electrostatic protection. 11.
Interface forms: USB terminal class C interface male head, DB9 male connector12.

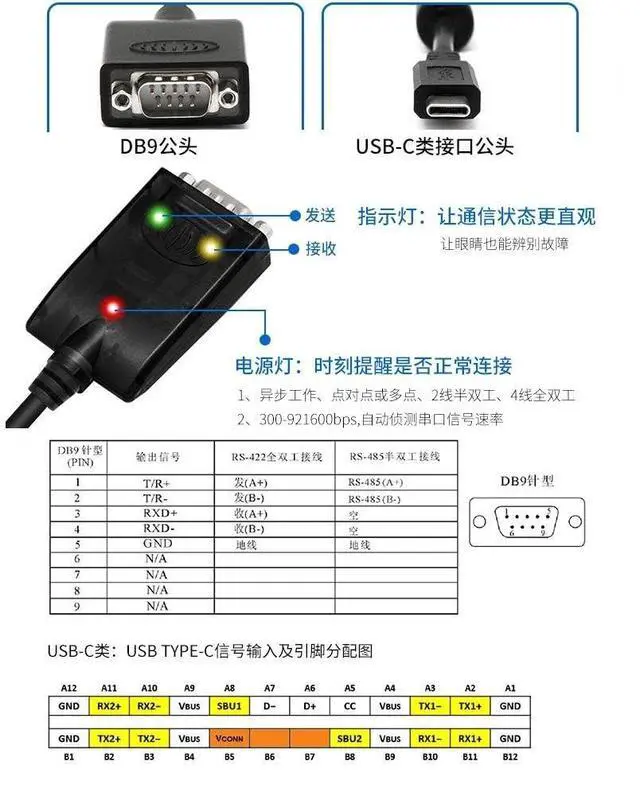

Signal indication: 3 indicator lights for Power (PWR), Send (TXD) and Receive (RXD). 13.
Transmission media: twisted-pair cable or shielded cable. 14.
Transmission rate: 128, 000bps to 300M. 38, 400bps to 600M. 9, 600bps to 1200M.
communication modes: 1. Point-to-point 4-line full duplex2. Point-to-multipoint 4-line full duplex3. Point-to-point 2-line half duplex4. Point-to-multipoint 2-line half duplex
Standards: conforming to USBV 1.1 2.0 and 3.1, EIA RS-485 and RS-422, backwards compatible. 2.
USB signals: VCC DATA+ DATA- GND FG3.
RS-485 signals: T/R+, T/R-, GND. 4.
RS-422 signals: T/R+, T/R-, R+, R-, GND. 5.
Working modes: asynchronous, point-to-point or point-to-multipoint, 2-line half duplex and 4-line full duplex. 6.
Direction control: adoption of automatic data stream control for automatic recognition and control of data transmission direction. 7.
Baud rate: 300- 921.6K bps, automatic detection of the transmission rate of the serial interface signal. 8.
Workload ability: point-to-multipoint supported, a maximum of 32 RS-422 or RS-485 interface equipments are supported. 9.
Transmission distance: 1200 meters for RS-485/422 end (when 9, 600bps) and a maximum of 5 meters for USB. 10.
Interface protection: 600W lightning strike and surge protection and 5KV electrostatic protection. 11.
Interface forms: USB terminal class C interface male head, DB9 male connector12.
Signal indication: 3 indicator lights for Power (PWR), Send (TXD) and Receive (RXD). 13.
Transmission media: twisted-pair cable or shielded cable. 14.
Transmission rate: 128, 000bps to 300M. 38, 400bps to 600M. 9, 600bps to 1200M.
communication modes: 1. Point-to-point 4-line full duplex2. Point-to-multipoint 4-line full duplex3. Point-to-point 2-line half duplex4. Point-to-multipoint 2-line half duplex
