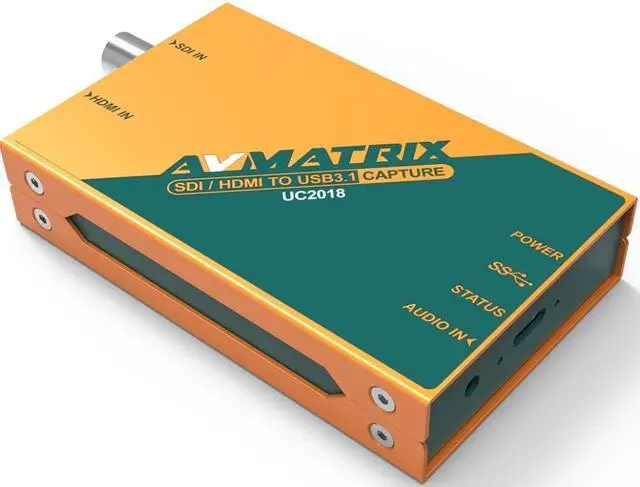

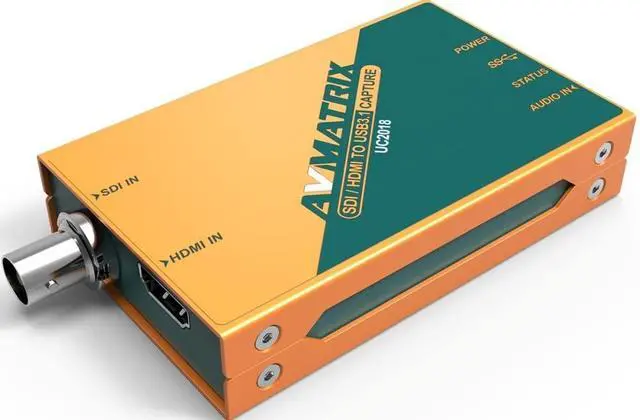

AVMATRIX UC2018 HDMI/SDI to USB3.1 Type-C Uncompressed Video Capture; HDMI or SDI in, and USB 3.1 Gen1(USB3.0) Out; Automatic Input Signal Detection, Up to 1080p60

AVMATRIX UC2018 HDMI/SDI to USB 3.1 Type-C Uncompressed Video Capture; HDMI or SDI in, and USB 3.1 Gen1(USB 3.0 ) Out; Automatic Input Signal Detection, Up to 1080p60Key Features- Plug-and-Play, driver free & power free- HDMI or SDI in, and USB 3.1 Gen1(USB 3.0 ) out- Automatic input signal detection, up to 1080p60- Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1- Comply with UVC video capture and YUY2 video output- Comply with UAC audio out from SDI/HDMI embedded audio or line in- Compatible with Windows, Linux, macOS- Compatible with OBS, ZOOM, Teams & Twitch, etc.

Specifications-
Input Interface: 1x HDMI 1.4 a, 1x SD/HD/3G-SDI, 1x 3.5 mm stereo audio (line in) -
Output Interface: 1x USB Type-C USB 3.1 Gen1 (up to 200MB/s)-
SDI Input Format: 1080p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; 1080PsF 30/ 29.97 /25/24/ 23.98; 1080i 50/ 59.94 /60; 720p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; 625i 50/525i 59.94 -
HDMI Input Format: 1080p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; 1080i 50/ 59.94 /60; 720p 60/ 59.94 /50/30/ 29.97 /25/24/ 23.98; 576p 50/ 576i50; 480i 59.94 /60; 480p 59.94 /60-
USB Output Format: 1920x1080, 1680x1050, 1440x900, 1368x768, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768, 1024x576, 960x540, 856x480, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360- Video &
Audio Capture: UVC (USB video class) & UAC (USB audio class) standard-
Audio Codec: 2-channel, 16 bit PCM, 48kHz, 1536kbps-
Video Color Space: YUY2-
Supports OS: Windows 7/8/10, Linux (Kernel version 2.6. 38 and above), macOS ( 10.8 and above)-
Compatible SDK: DirectShow (Windows), DirectSound (Windows) -
Power Consumption: 3.5W (Max) -
Operating Temperature: -20~60C-
Storage Temperature: -30~70C-
Relative Humidity: 20~90% RH (no condensation) -
Accessory: USB 3.0 A-C cable-
Dimensions: 92x58x19mm-
Net weight: 205g-
Gross Weight: 300g
