PCI-E X16 To M.2 M-key NVME X4 SSD RAID Array Expansion Adapter Split Card Four Slots Support 2242/2260/2280/22110 With Turbofan
- Name: double-sided 4-disk NVME raid PCI-E X16 split card
- Hard disk: SSD/M.2 PCI-E device with M.2 NVME protocol
- Transmission speed: 4*32Gbps
- Packing: cowhide box packing
- Product weight: product fan baffle 92.3G
+
+
Overview
Specs
Reviews
Description:

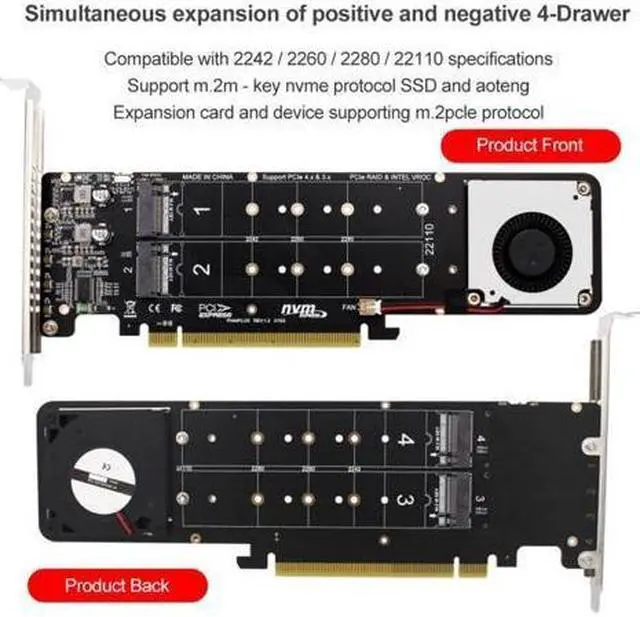

The front and back sides can be expanded with four slots at the same time, which is compatible with 2242/2260/2280/22110 specifications, supports M. 2 M-KEY NVME SSD and Aoteng, and supports M. 2 PCle expansion cards and devices.

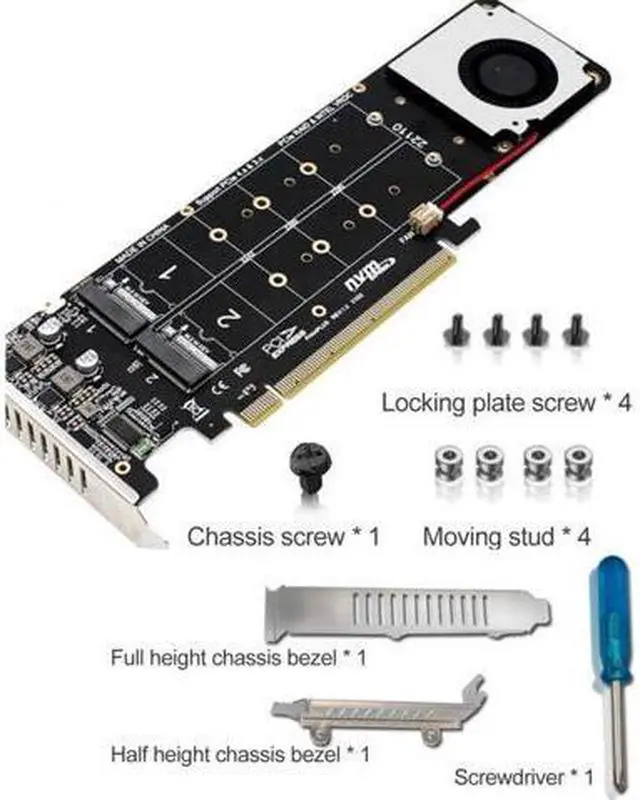

Equipped with full-height chassis bezel and half-height chassis bezel, it can support 2U server small chassis installation.

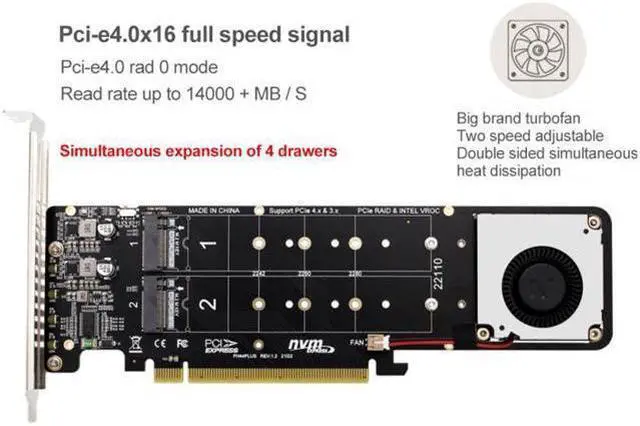

The innovation lies in the addition of double-sided turbofans, which can dissipate heat on both sides, the adjustment of two-speed wind speed, and the first design.

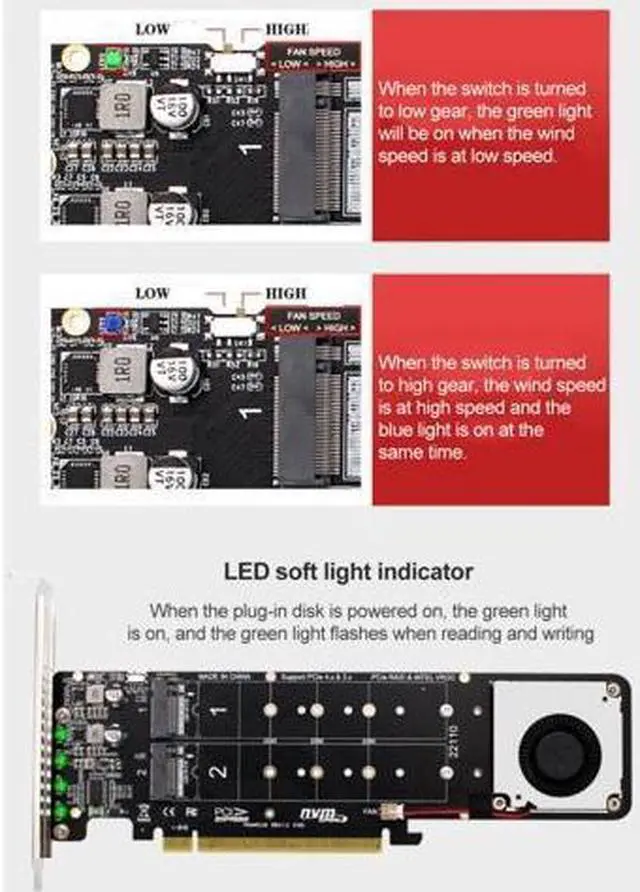

LED soft light indicator, when the plug-in disk is powered on, the green light lights up and flashes when reading and writing.

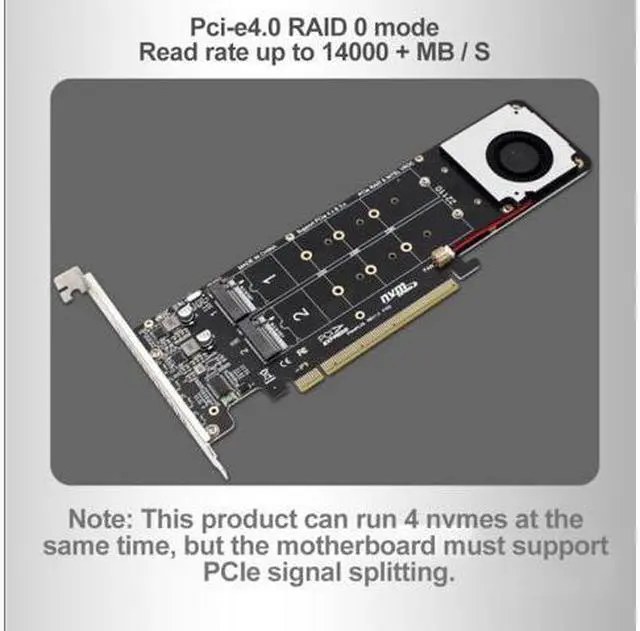

PCI-E 4.0 RAID 0 mode can give you a stable full-speed experience with a reading rate of 14, 000 MB/s.

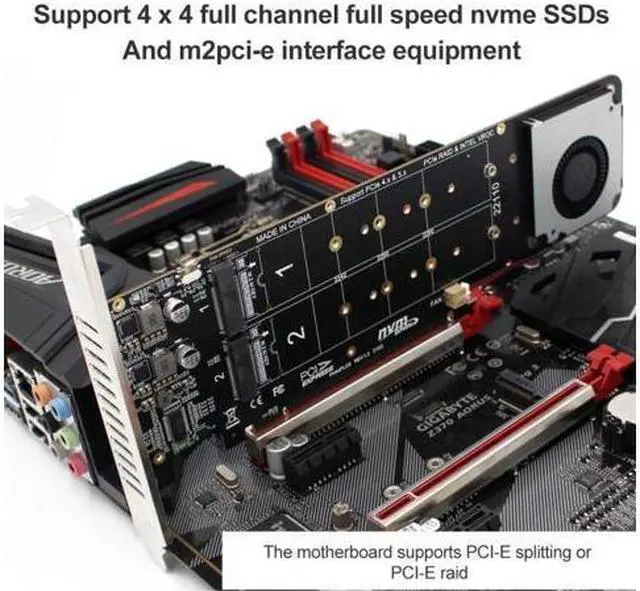

It supports four X4 full-channel full-speed NVME SSD and M. 2 PCI- E interface devices, and the motherboard supports PCI-E split or PCI -E RAID functions.

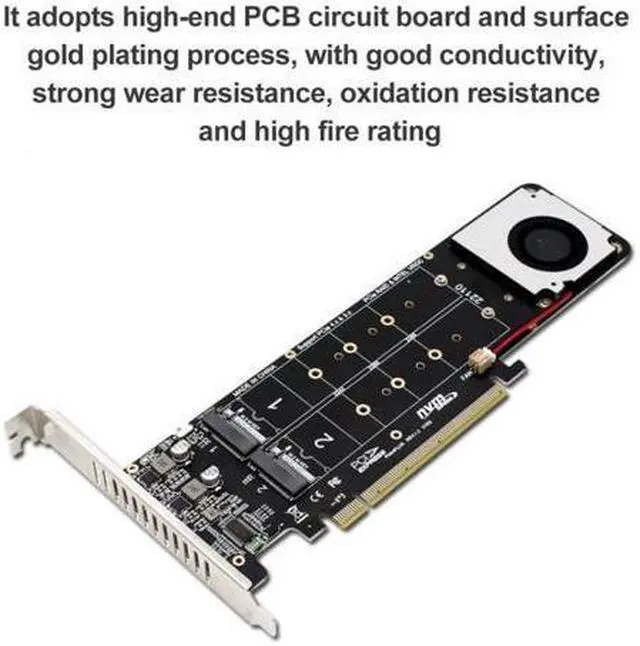

We use the best materials, using high-end PCB, surface gold plating technology, good conductivity, strong wear resistance, oxidation resistance and high fire rating.
Name: double-sided 4-disk NVME raid PCI-E X16 split card
Hard disk: SSD/M. 2 PCI-E device with M. 2 NVME protocol
Transmission speed: 4*32Gbps
Packing: cowhide box packing
Product weight: product fan baffle 92.3G
The front and back sides can be expanded with four slots at the same time, which is compatible with 2242/2260/2280/22110 specifications, supports M. 2 M-KEY NVME SSD and Aoteng, and supports M. 2 PCle expansion cards and devices.
Equipped with full-height chassis bezel and half-height chassis bezel, it can support 2U server small chassis installation.
The innovation lies in the addition of double-sided turbofans, which can dissipate heat on both sides, the adjustment of two-speed wind speed, and the first design.
LED soft light indicator, when the plug-in disk is powered on, the green light lights up and flashes when reading and writing.
PCI-E 4.0 RAID 0 mode can give you a stable full-speed experience with a reading rate of 14, 000 MB/s.
It supports four X4 full-channel full-speed NVME SSD and M. 2 PCI- E interface devices, and the motherboard supports PCI-E split or PCI -E RAID functions.
We use the best materials, using high-end PCB, surface gold plating technology, good conductivity, strong wear resistance, oxidation resistance and high fire rating.
Specifications
:Name: double-sided 4-disk NVME raid PCI-E X16 split card
Hard disk: SSD/M. 2 PCI-E device with M. 2 NVME protocol
Transmission speed: 4*32Gbps
Packing: cowhide box packing
Product weight: product fan baffle 92.3G
