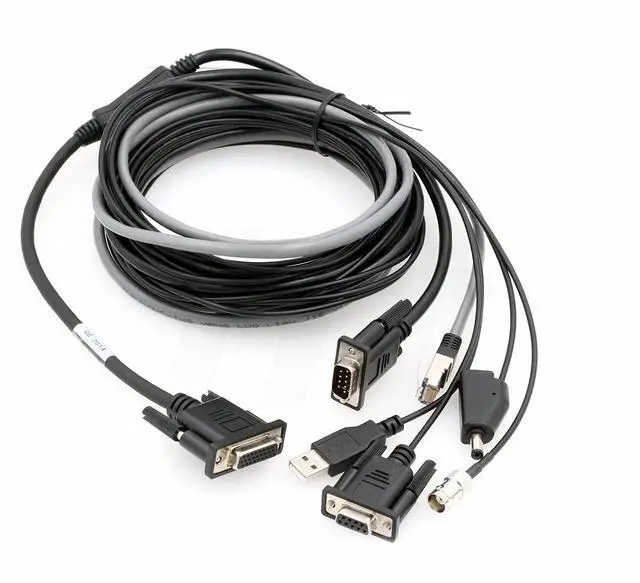

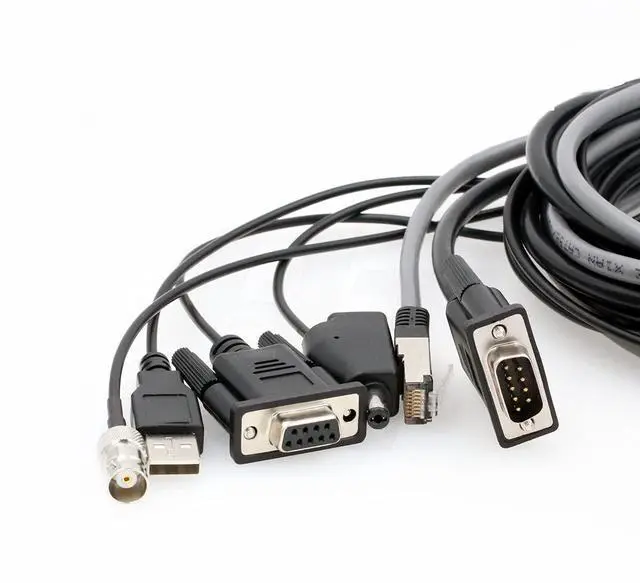

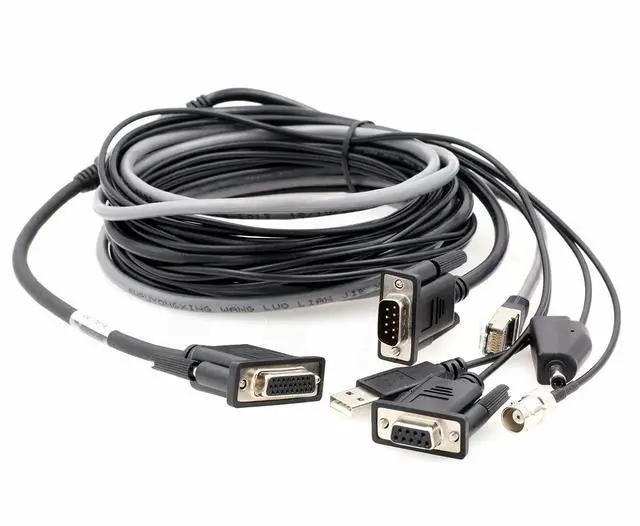

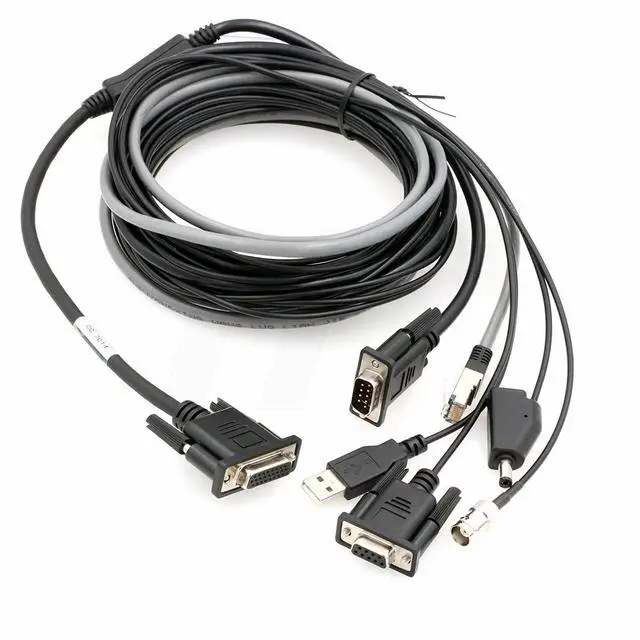

HangTon Trimble SPS855 SNM910 DB26 26-pin Multi-Function Data PPS Ethernet RJ45 USB Slave Host RS232 Serial External Power Cable 77070-00
- Item #: 9SIVGCKKA81644
- Mfr. Part #: 945768561984
- Trimble SPS 26-pin Multiport Ethernet Data Power Cord
- Cable for Trimble SPS Modular series SPS700, SPS-780,SPS-880, SPS851 SPS855 SPS751 SPS985, SPSx61, SNM910
- High Density DB26 26-pin to 1PPS (BNC), 2 x Serial RS-232 DB9, DC plug, USB(A) plug, Ethernet plug, power from AC adapter
- One multi-function cable to support external power, RS232 serial data, USB communications, Ethernet, PPS
- Part number: 60789-00, 77070-00 replacement cable. Length: about 2.5 meters
+
+
Overview
Specs
Reviews
Ethernet connectivity to a 10/100 Base-T network through an RJ45 jack on a multiport adaptor (P/N 57167 or P/N 57168)
'Slave' USB communications through the USB type B connector on the multiport adaptor (P/N 57167)
'Host' USB communications through the connector on the 26-pin cable (P/N 58339)
Primary power from an external power supply
External power input from an SPS700 total station battery cradle system
Full 9-wire RS-232 serial communications using the 26-9-pin multiport adaptor (P/N 57168) or a 26-pin serial communications cable
1x PPS, 2 x RS-232 input DC, USB, Ethernet plug (P/N 60789-00 or P/N 77070-00)
'Slave' USB communications through the USB type B connector on the multiport adaptor (P/N 57167)
'Host' USB communications through the connector on the 26-pin cable (P/N 58339)
Primary power from an external power supply
External power input from an SPS700 total station battery cradle system
Full 9-wire RS-232 serial communications using the 26-9-pin multiport adaptor (P/N 57168) or a 26-pin serial communications cable
1x PPS, 2 x RS-232 input DC, USB, Ethernet plug (P/N 60789-00 or P/N 77070-00)
