Gigabit Hi-PoE Injector - Industrial Gigabit PoE+ Injector IEEE802.3af/at 60W Hardened POE Adapter with 12-48V DC Input DIN- Rail, Wall Mount, Aluminum Alloy Metal Housing

Overview: The Elenzk EK-001-60W is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 30m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000M Base-T and are compliant with IEEE 802.3 ab. The PoE Out port is also compliant with IEEE 802.3 at. EK-001-60W provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
Features: -- 12~48VDC Power Input; -- 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port(Data + Power); -- Support IEEE 802.3 af/at Power over Ethernet (PoE+) Power Sourcing Equipment; -- Support 10/100/1000 Base-TX; --
Cabling: Cat6 or above--
Maximum Distance: Cat7 UTP up to 30m--

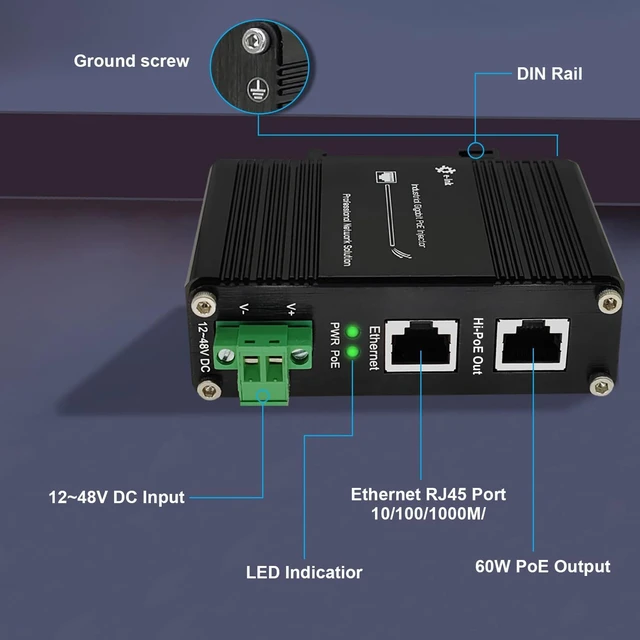

Power Pin Assignment: 4/5(+), 7/8(-); -- Support DIN-Rail & Wall-Mount installation; -- Extensive LED indicators for PoE diagnostics; -- Environmentally Hardened -40C to 80C (-40F to 176F) operating temperature; --

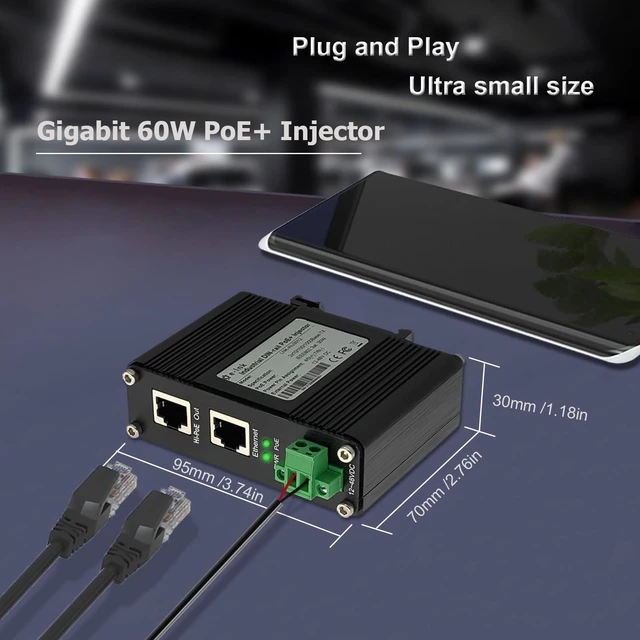

Dimensions (WxDxH): 95*70*30 mm ( 3.74 * 2.76 * 1.18 inches); --
Weight: 0.25K g ( 0.55I b); --
Casing: Aluminum Case; --
Warranty: 5-Year Warranty.
Package: 1 * EK-001 60W PoE Injector1 * POE injector User Manual1 * L-Shaped Wall Mount bracket
