PX204 4 Port Gigabit PoE Extender with IEEE802.3af/at/bt Standard 1 Port 90W in 4 Port 30W Out PoE Repeater for Camera,VOIP

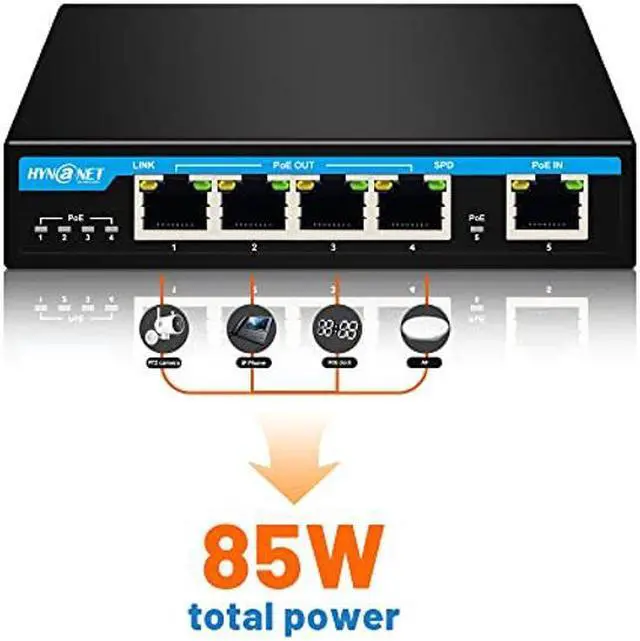

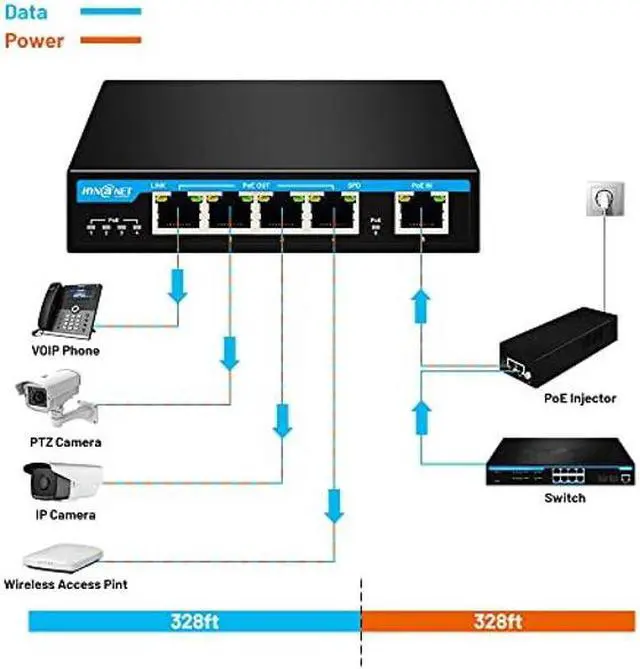

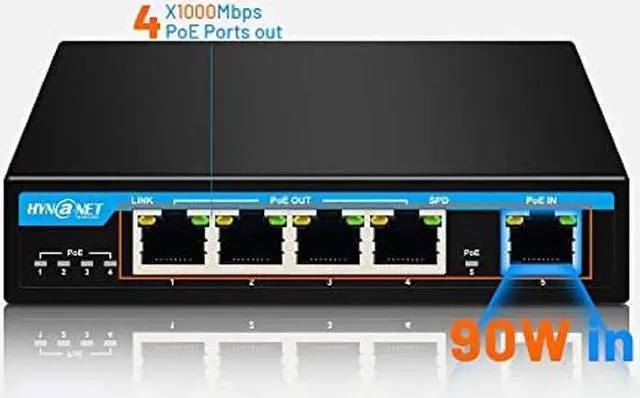

PX204 is a 1-port 802.3 bt PoE+ to 4-port 802.3 af/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The Px204 can obtain a maximum of 85-watt PoE power from PoE+ input port and supplies a maximum of 30-watt PoE power budget for four PoE output ports, extending both the Gigabit Ethernet Data and IEEE 802.3 at/ 802.3 af Power over Ethernet over the standard 100m (328 ft. ) Cat. 5/5e/6 UTP cable to up to two 200m powered devices at the same time. The Px204 is quite easy to be installed by simple plug and play.

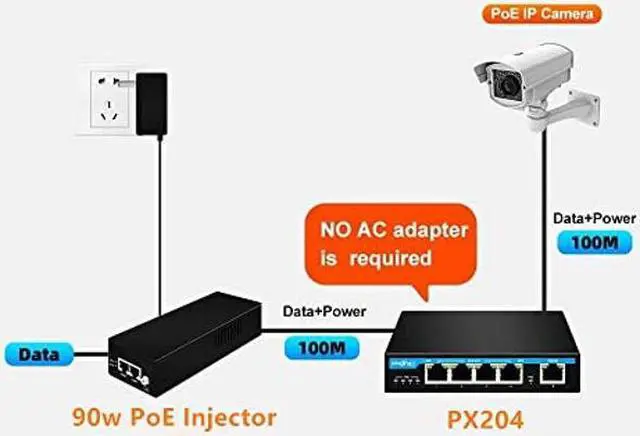

It is used between a power source equipment (PSE) and a powered device (PD). The Px204 injects power to the PD without affecting the data transmission performance. The Px204 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The Px204 is designed in a compact box containing three RJ45 ports, of which one "PoE IN" port functions as PoE (Data and Power) input and the other two "PoE OUT" ports function as PoE output. The "PoE OUT" port is also the power injector that transmits DC voltage over the Cat5/5e/6 cable and transfers data and power simultaneously between the PSE and PD.

Features: Compatible with IEEE 802.3 af, IEEE 802.3 at, IEEE 802.3 bt One port supply IEEE 802.3 bt Ultra PoE input Four ports supply IEEE 802.3 at PoE output Extends the range of PoE and Ethernet an additional 100 meters Forwards both Ethernet data and PoE power to remote device No additional power supply is required Automatically detects and protects PoE equipments from being damaged by incorrect installation Full-rate network throughout the whole extended distance Operating
Ambient Temperature: 0 to 40 Easy plug-and-play installation
