VSDISPLAY LCD Controller Board Work for 14" 15.6" 1366x768 b140xw03 v.0 N156B6 LP156WH4 TL B156XW02 LP140WH1 LP140WH3 TL LTN140AT02 LTN140AT07 B156XW04 B156XTN02.1 40Pin LVDS LCD Screen
- Item #: 9SIVNKFKS30144
- Mfr. Part #: 472744199690
- Compatible Work With 15.6" 40Pin LVDS connector 1366x768 LCD Screen :LTN156AT17 LTN156AT02 LTN156AT24 BT156GW02 B156XTN03 B156XW02 B156XW04
- Compatible Work With 14" 40Pin LVDS connector 1366x768 LCD Screen:b140xw03 v.0 B140XW01 B140XW02 B140XW03 LP140WH1 LP156WH2-TL(xx) LP156WH4-TL (xx) LP140WH3-TL(xx) LP140WH4-TL(xx) (Please Note This Controller Board Can Only Work for LP156WH4 TL XX LP156WH2 TL XX LP140WH3 TL XX LP140WH4 TL XX LCD Screen, Which Can Not Work for LP156WH4 TP XX LP156WH2 TP XX LP140WH3 TP XX LP140WH4 TP XX LCD Screen Due to The Signal Interface is Different.)
- LCD Board Work for LVDS Interface LCD Screen Not List All Compatible Screen Model Type, if you can not find your screen type , please feel free to leave a question, we will reply for you in 24hours.
- Recommed use Power Adapter Power Adapter 12Vdc more than 2A 5.5mmx2.1mm Connector(Help to notice , there is no power adpter in the packing list )

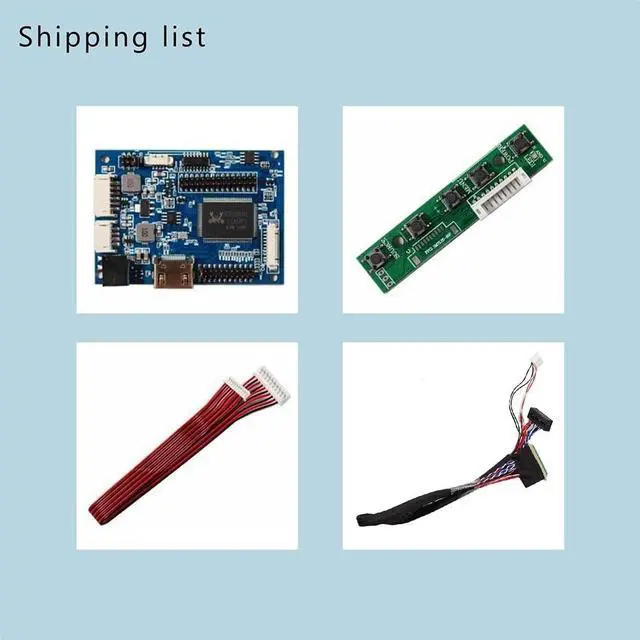

- Packing list : 1 LCD Controller Board VS-TY2660H-V1 1 40Pin S
+
+
Overview
Specs
Reviews
Compatible Work With: 14inch
1366*768: b140xw03 v0 LTN140AT02 LTN140AT07 LP140WH1 BT140XW02 HT140WXB HSD140PHW1N140B6 B140XW01 B140XW02 B140XW03 LP140WH 115.6 inch 1366*768: LTN156AT17 LTN156AT02 LTN156AT24 BT156GW02B156XTN03 B156XW02 B156XW04 B156XTN 02.1LP 156WH4 TL XX LP156WH2 TL XX LP140WH3 TL XX LP140WH4 TL XX(Please Note This Controller Board Can Only Work for LP156WH4 TL XX LP156WH2 TL XX LP140WH3 TL XX LP140WH4 TL XX LCD Screen, Which Can Not Work for LP156WH4 TP XX LP156WH2 TP XX LP140WH3 TP XX LP140WH4 TP XX LCD Screen Due to The Signal Interface is Different.
)LCD Controller Board: LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input:

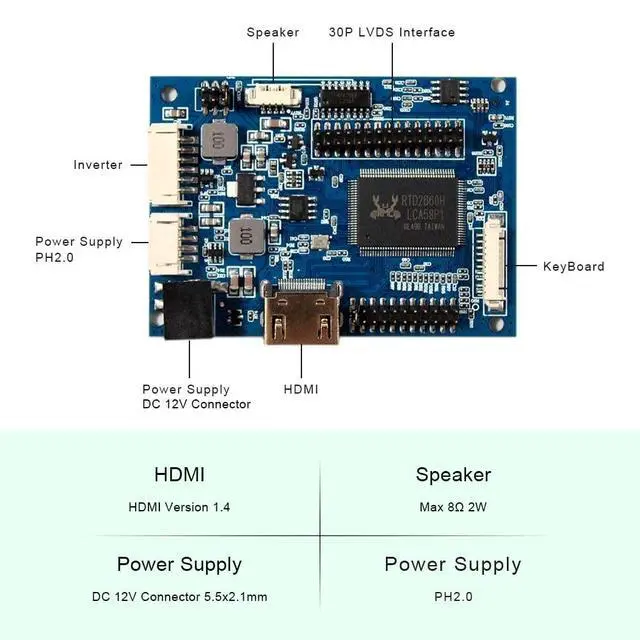

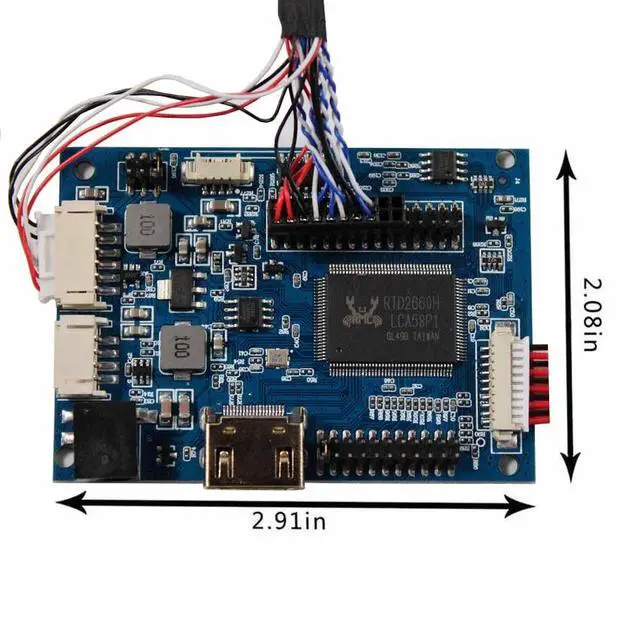

OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mmPacking list: 1 LCD Controller Board VS-TY2660H-V11 40Pin Signal Cable1 Keyboard With Cable
1366*768: b140xw03 v0 LTN140AT02 LTN140AT07 LP140WH1 BT140XW02 HT140WXB HSD140PHW1N140B6 B140XW01 B140XW02 B140XW03 LP140WH 115.6 inch 1366*768: LTN156AT17 LTN156AT02 LTN156AT24 BT156GW02B156XTN03 B156XW02 B156XW04 B156XTN 02.1LP 156WH4 TL XX LP156WH2 TL XX LP140WH3 TL XX LP140WH4 TL XX(Please Note This Controller Board Can Only Work for LP156WH4 TL XX LP156WH2 TL XX LP140WH3 TL XX LP140WH4 TL XX LCD Screen, Which Can Not Work for LP156WH4 TP XX LP156WH2 TP XX LP140WH3 TP XX LP140WH4 TP XX LCD Screen Due to The Signal Interface is Different.
)LCD Controller Board: LCD Board Work for LVDS Interface
LCD ScreenInput Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input SignalStandby
Model <1WVideo Input:
OSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 74mm x 53mm x 12mmPacking list: 1 LCD Controller Board VS-TY2660H-V11 40Pin Signal Cable1 Keyboard With Cable
