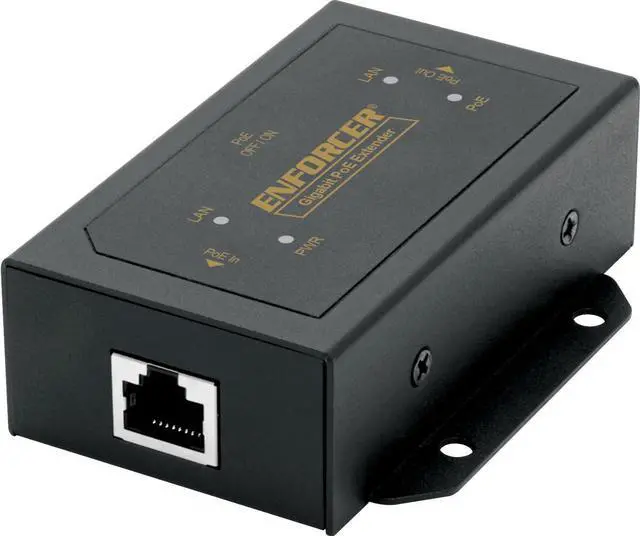

Seco-Larm NR-P102E-TQ Enforcer 1-Port PoE+ Extender; Extends the Range of PoE Devices an Additional 328ft Cat5e Cables or Higher; Compatible with PoE Devices; Surge Protection

Seco-Larm NR-P102E-TQ Enforcer 1-Port PoE+ Extender; Extends the Range of PoE Devices an Additional 328ft Cat5e Cables or Higher; Compatible with PoE Devices; Surge ProtectionThe ENFORCER PoE+ Extender connects PoE cameras, IP access control, IP speakers/intercoms, IP telephony, or other PoE devices using a single Cat5e or Cat6 cable to extend data and power.
Key Features: - Extends the range of PoE devices an additional 328ft (100m) with Cat5e cables or higher- Maximum extended range of up to 984ft (300m) using 2 extenders- Connects 10/100/1000B-T PoE devices including IP cameras, IP access control, VOIP, IP speakers/intercoms, etc- Compatible with gigabit transmission rates- Passive operation, no external power required- Automatically detects PoE equipment and protects from damage due to faulty installation- Surge protection for both data and power portsSpecifications: -
Connections: PoE
In: 1x Shielded RJ45;
PoE Out: 1x Shielded RJ45- Transmission range - 656ft (200m): Power
Input: 15W,
Power Output: 11.1W;
Power Input: 30W,
Power Output: 19W;
Power Input: 60W,
Power Output: 40W;
Power Input: 90W,
Power Output: 48W-
Transmission range - 948ft (300m): Power
Input: 15W,
Power Output: 6.8W;
Power Input: 30W,
Power Output: 15W;
Power Input: 60W,
Power Output: 30W;
Power Input: 90W,
Power Output: 30W-
Data link: Both pin 1/2, 3/6 and 4/5, 7/8-
Power link: Pin 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-), up to 85W-
Network cables: Shielded Cat-5e or higher-
Ethernet speed: 10/100/1000 Mbps half/full duplex-
LED Indicators: Green, power in; Green, PoE switch on; Data link /
Data transmit: LAN
x2 green (steady: link
; flashing: transmit)-
Overall Dimensions: 3.56 x 2.06 x 1.12 inches-
Weight: 0.45 pounds
