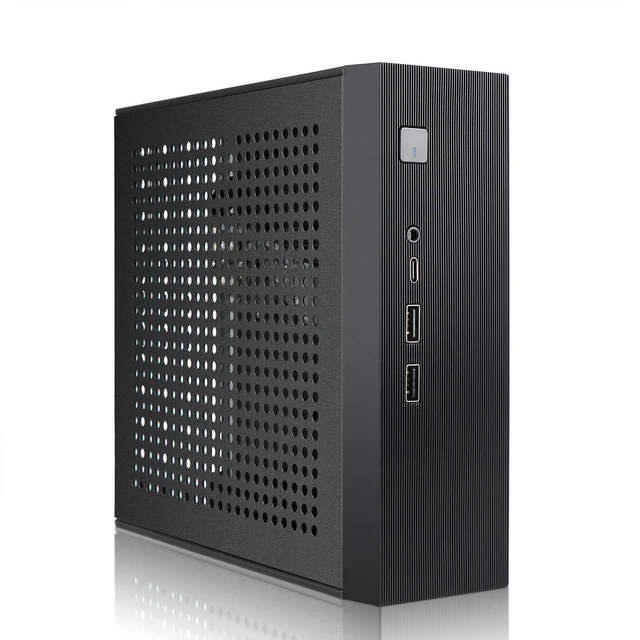

Mini ITX HTPC Case,SFF Small Form Factor Mini-Tower PC Case 0.6mm SPCC Computer Chassis Vented Panels Support Mini-ITX Motherboard(170x170mm) with USB-C Audio for Desktop PC Wall-Mounted

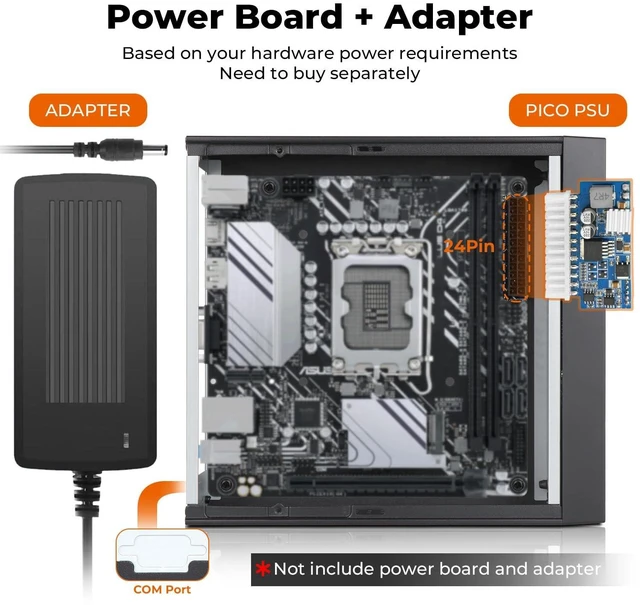

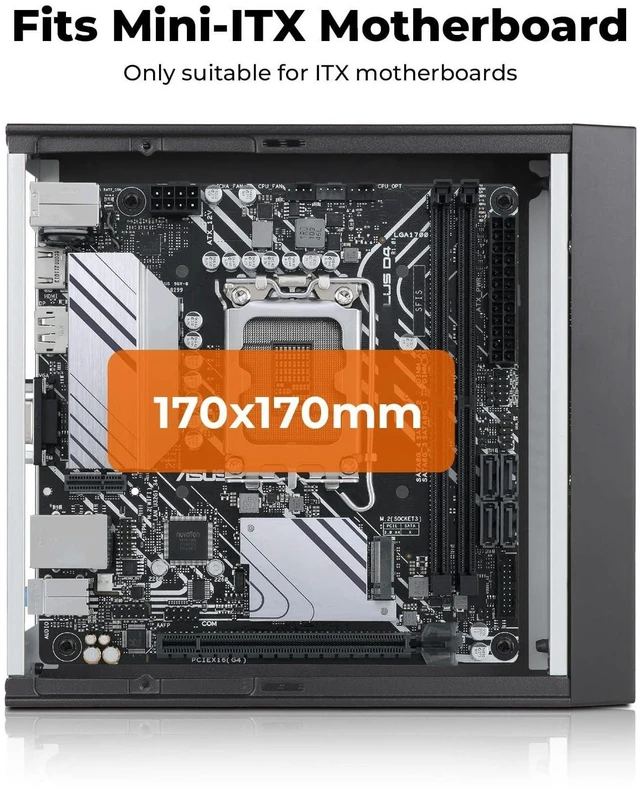

Mini-ITX Case Size: 212x60x190mm, surports Mini-ITX motherboards (170x170mm). It builds two 6cm WiFi ports and can be mounted behind a monitor for use. ^^ "Power Board + Adapter"

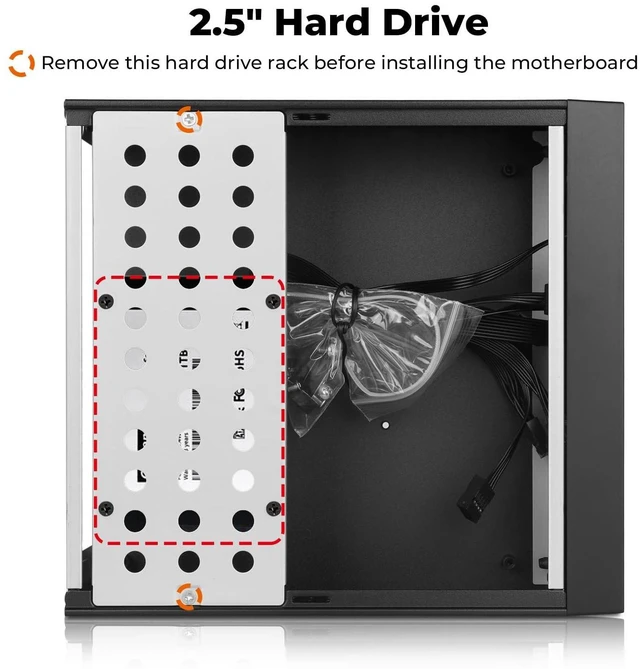

Configuration Design: Power board (typically a DC-ATX power module rated at 300W or less) and an external adapterthis setup eliminates the "power supply cooling fan noise" and "heat generated by internal power components affecting the chassis interior" compared to traditional internal power supplies. ^^ Only supports one 2.5" hard drive, aligning with the mini chassis' lightweight design.
CPU cooler height limits: 36mm max height without a hard drive; 29mm max height with a 7mm hard drive; 27mm max height with a 9mm hard drive.
^^ Application Scenarios: Ideal for users with limited desktop space (e. g., HTPC, student dorms, office workstations); Requiring portable setup (e. g., temporary offices, backup units for outdoor livestreaming); Pursuing minimalist desktop aesthetics (where the chassis can be easily concealed behind monitors or on bookshelves). ^^ Compared to plastic computer cases, 0.6 mm SPCC steel sheet offers superior structural rigidity, preventing case deformation after prolonged use. It also provides a degree of scratch and impact resistance. ^^
Overclocking is not recommended: Even if the CPU supports overclocking (e. g., i5-12400T), avoid increasing the frequency manually to prevent inadequate cooling. Consider adding an ultra-thin fan. ^^ Mini PC case lacks PCIe expansion slots, making it suitable only for integrated graphics or external graphics docking via thunderbolt. Installation requires precise planning of component order (typically: motherboard (ITX) CPU cooler (height limit) storage (one 2.5" SSD) power cables) to prevent excessive cable compression. ^^ Before use, hardware must be rigorously selected for low power consumption and compact size to avoid compatibility and thermal issues.
