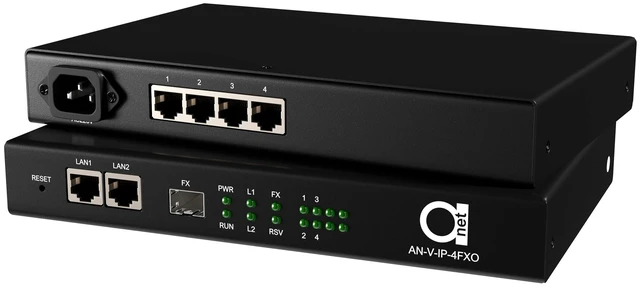

4-Port POTS Telephone Over Ethernet Extender, LAN IP Converter with FXO and FXS, 4-in-1 Device for Phone to Ethernet, Phone to Fiber, RJ-45 Twisted Pair, Active Fiber Optic Voice Connection
- Item #: 9SIVMZAKS24335
- Mfr. Part #: 648735352652
- 4 different applications with the same device: Use it as: Phone (or fax) over Ethernet / IP / LAN converter, or with an optional 100FX SFP installed into the FX port over dark fiber or active fiber network, or simply connect LAN1 or LAN2 ports by RJ-45 cable. (Do Not Use Internet connection as an Uplink!)
- Web Management Feature: Units will come with pre-configured IP addresses, but you can set a new subnet or fine-tune other settings using the web manager.

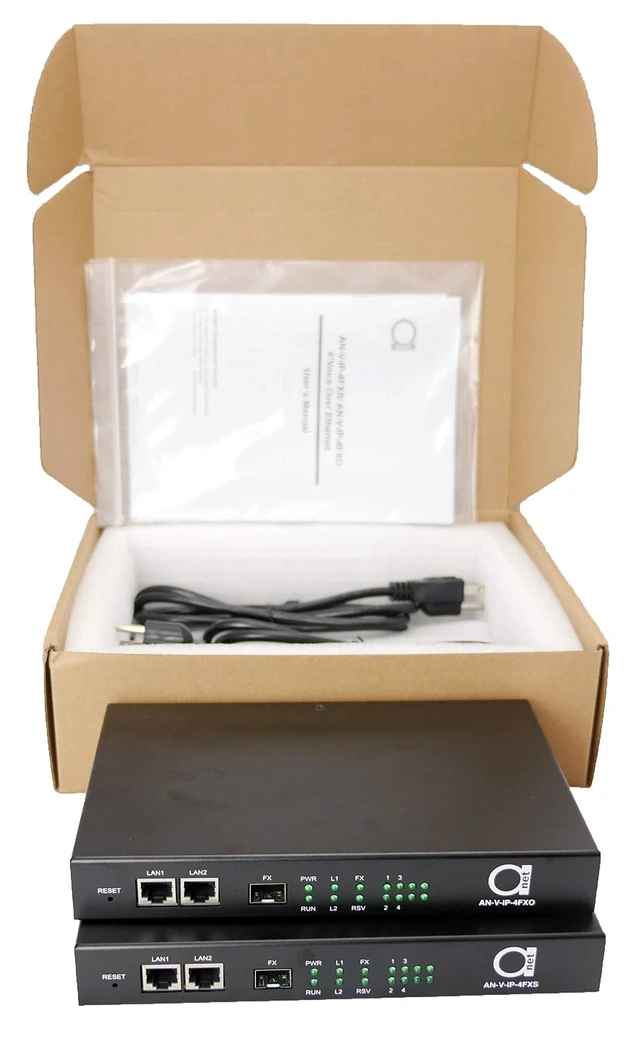

- Comes as Pair: FXO side connects to CO side i.e. PABX, FXS side connect to CPE side, i.e. phone sets, or fax.
- High transmit efficiency, low transmit delay, supports Ethernet packet out-of-order recovery, and cache to anti-network delay.
- Adjustable frame length to balance bandwidth and transmission delay. Support power failure or automatic network recovery.
+
+
Overview
Specs
Reviews

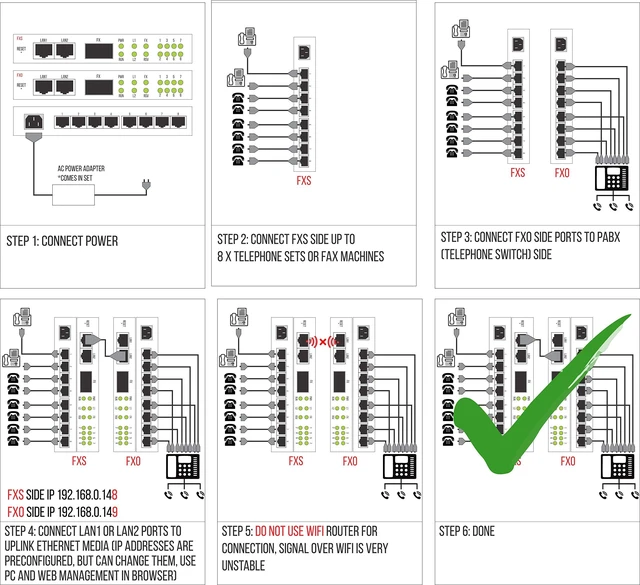

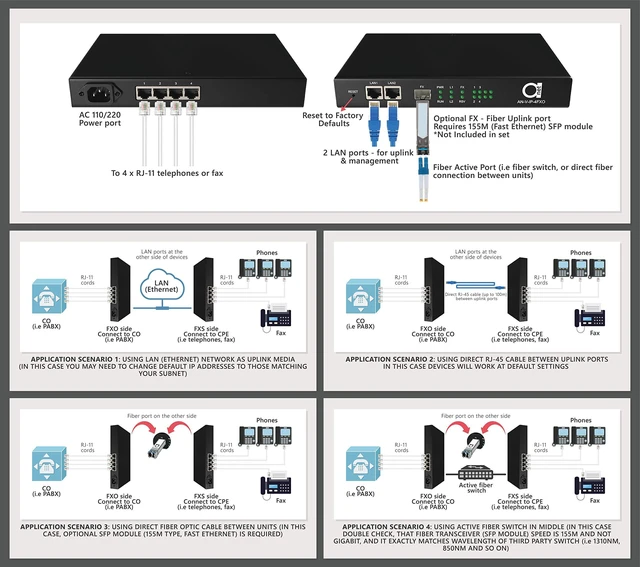

4 different applications with the same device! 4 port (FXS & FXO) POTS Telephone line over LAN (Ethernet & IP) converter can work in 4 different network applications. First, you can use it as 4 FXS/FXO over Ethernet device it will work over a simple network hub or router within the same network subnet. Units will come with pre-configured IP addresses so that you can just simply plug in your phones (and even fax) on one side, and connect to the CO side PABX, on another side, and it will work right out of the box.
Need to change IP addresses? You can do so via the web manager. Or another application is simply connecting uplink ports LAN1 or LAN2 via Ethernet cable directly - in this case, the device will work as voice ports over the same RJ-45 cable, just keep in mind a maximum distance of 100m. Then another application you can think of is to use FX uplink port. In this case, just use a 155M (Fast Ethernet) SFP module transceiver (does not come in this set) and you can connect the uplink port now to any fiber optic Ethernet switch.
In this case, check that fiber transceiver parameters match exactly. Even if you have a simple fiber optic cable run, and want to send the FXS/FXO POTS voice traffic over it then as well just install 2 matching SFP 155M (100FX) transceivers into the FX ports, and simply connect to fiber at both sides. SpecificationsFXS & FXO Phone
Interface Ring voltage: 75VRing
frequency: 25HZTwo-line
Impedance: 600 Ohm (pick up)
Return loss: 40
dBRing detect voltage: 35VRing
detection frequency: 17HZ-60HZEthernet
Interface (10/100M) Datarate: 10/100Mbps, half/full dpxCompatible with IEEE 802.3
Connector: RJ45 (SFP)
Interface datarate: 155MbpsPower
supply: AC90V
~ 265VPower consumption: 7WWorking
temperature: -10C
~ 60CHumidity: 5%~95
%Dimensions: (216 L) X 140 (W) X 31 (H) mm
Need to change IP addresses? You can do so via the web manager. Or another application is simply connecting uplink ports LAN1 or LAN2 via Ethernet cable directly - in this case, the device will work as voice ports over the same RJ-45 cable, just keep in mind a maximum distance of 100m. Then another application you can think of is to use FX uplink port. In this case, just use a 155M (Fast Ethernet) SFP module transceiver (does not come in this set) and you can connect the uplink port now to any fiber optic Ethernet switch.
In this case, check that fiber transceiver parameters match exactly. Even if you have a simple fiber optic cable run, and want to send the FXS/FXO POTS voice traffic over it then as well just install 2 matching SFP 155M (100FX) transceivers into the FX ports, and simply connect to fiber at both sides. SpecificationsFXS & FXO Phone
Interface Ring voltage: 75VRing
frequency: 25HZTwo-line
Impedance: 600 Ohm (pick up)
Return loss: 40
dBRing detect voltage: 35VRing
detection frequency: 17HZ-60HZEthernet
Interface (10/100M) Datarate: 10/100Mbps, half/full dpxCompatible with IEEE 802.3
Connector: RJ45 (SFP)
Interface datarate: 155MbpsPower
supply: AC90V
~ 265VPower consumption: 7WWorking
temperature: -10C
~ 60CHumidity: 5%~95
%Dimensions: (216 L) X 140 (W) X 31 (H) mm
