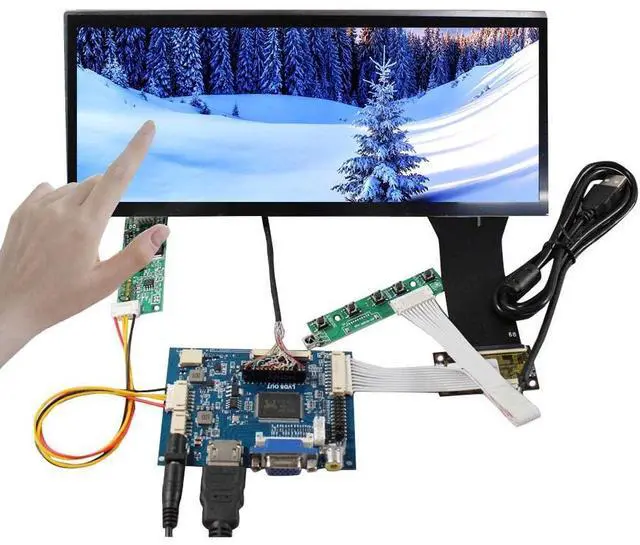

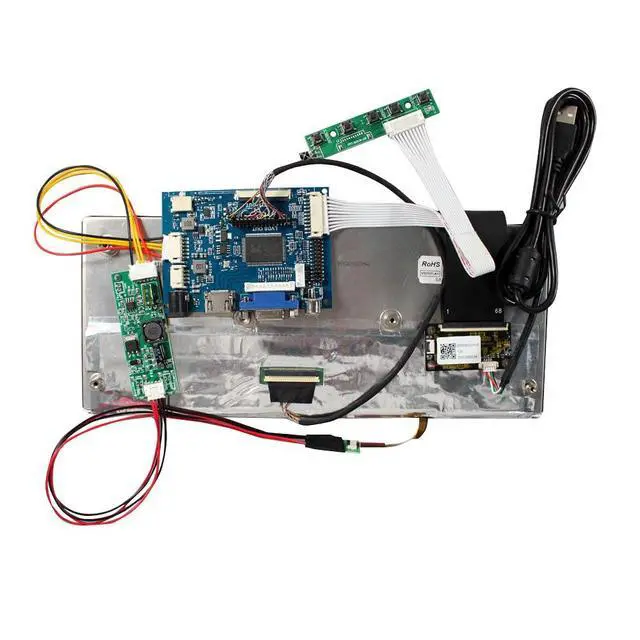

VSDISPLAY 10.3 Inch Touch Screen FHD 1920x720 IPS High Brightness 800 Nits Monitor for DIY Outdoor/Automotive/Computer Display,with HD-MI VGA AV Board VS-TY2662-V1
- Item #: 9SIVGCKKAH7359
- Mfr. Part #: 9388301876519
- [(10.3'' Stretched Bar LCD)] 10.3 inch touch screen FHD 1920x720 resolution,aspect ratio 8:3;800 nits high brightness;Contrast Ratio 1000:1 (Typ.) (TM)
- [(IPS Panel)] Widely viewing Angle 85/85/85/85 (Typ.)(CR>=10) [Left / Right / Up / Down],better visual and clear image display
- [(Touch Function)] 10.3 in LCD comes with capacitive touch panel,more convenient to use and operated on screen
- [(Multiple Interfaces)] Supports HD-MI/VGA/AV video input
- [(Widely Application)] Fit for laptop/computer/game cabinet automotive secondary display
+
+
Overview
Specs
Reviews

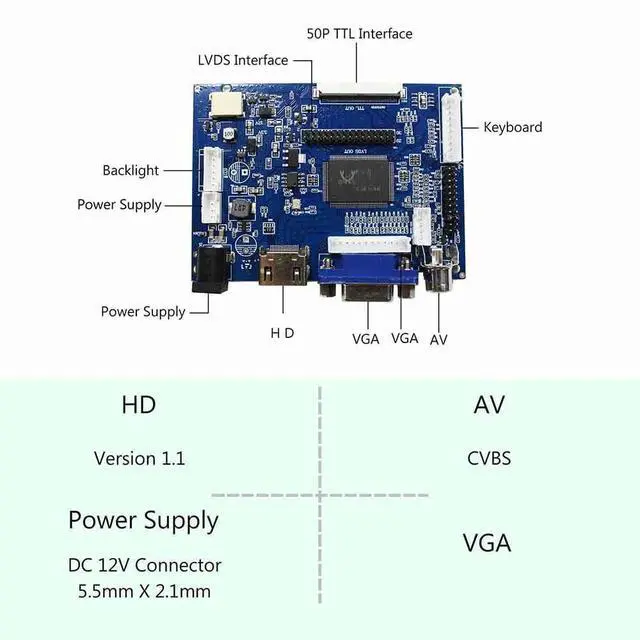

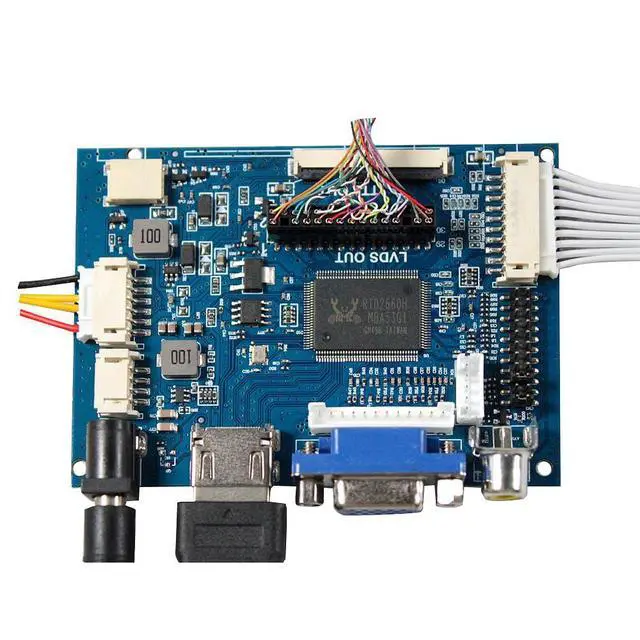

LCD Controller Board:
HD VGA AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~ 10.1 inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD VGA AV
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm
10.3" VS103IA 1920X720 Touch LCD Screen
Display New Mode IPS Pro, Normally Black, Transmissive
Resolution 1920 (RGB) x720
Outline Size 259.84 x 109.3 x16mm (HxVxD) mm
Display Area 243.6 x 91.4 (HxV) mm
Brightness 800 cd/m2 (Typ. )
Contrast Ratio 1000:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit), Connector, 50pins
Backlight 9S4P WLED
Input Voltage 3.3V (Typ. )

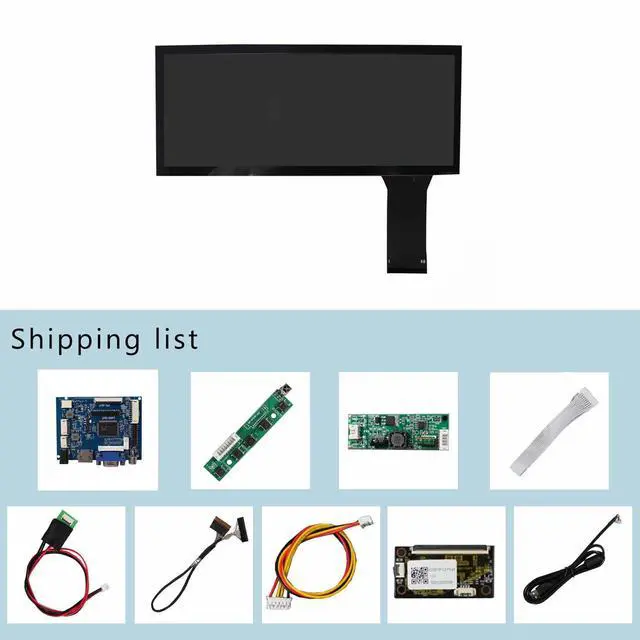

Packing list:
1x HD+VGA+AV LCD Controller Board VS-TY2662-V1
1x 10.3" VS103IA/DJ103IA/JJ103IA-A7B 1920X720 Capacitive Touch LCD Screen
1x LVDS Cable
1x Keyboard With Cable
HD VGA AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~ 10.1 inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD VGA AV
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm
10.3" VS103IA 1920X720 Touch LCD Screen
Display New Mode IPS Pro, Normally Black, Transmissive
Resolution 1920 (RGB) x720
Outline Size 259.84 x 109.3 x16mm (HxVxD) mm
Display Area 243.6 x 91.4 (HxV) mm
Brightness 800 cd/m2 (Typ. )
Contrast Ratio 1000:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit), Connector, 50pins
Backlight 9S4P WLED
Input Voltage 3.3V (Typ. )
Packing list:
1x HD+VGA+AV LCD Controller Board VS-TY2662-V1
1x 10.3" VS103IA/DJ103IA/JJ103IA-A7B 1920X720 Capacitive Touch LCD Screen
1x LVDS Cable
1x Keyboard With Cable
