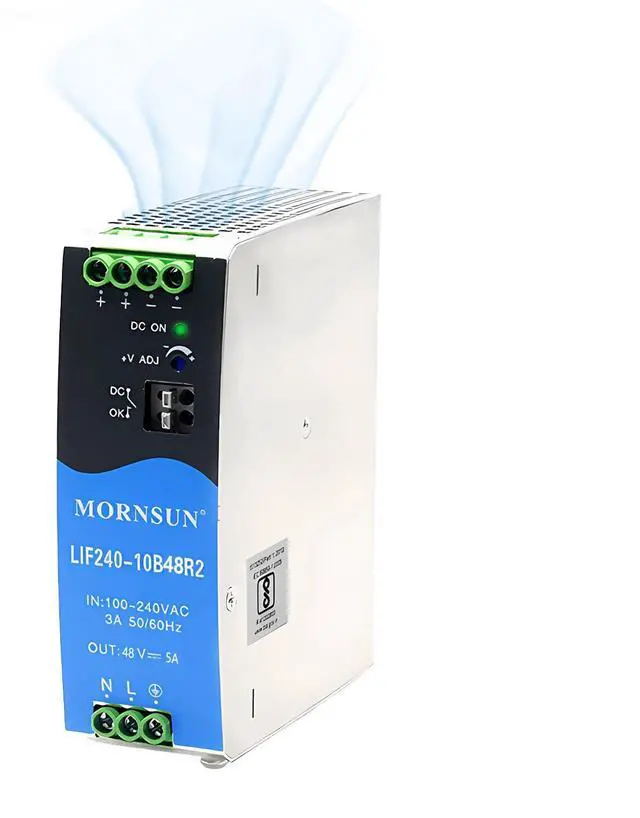

Xnyahitog 240W DIN Rail Power Supply with DC OK Function and Active PFC, 5A, 48VDC Output
- Item #: 9SIVGCKKAH7436
- Mfr. Part #: 9388301877073

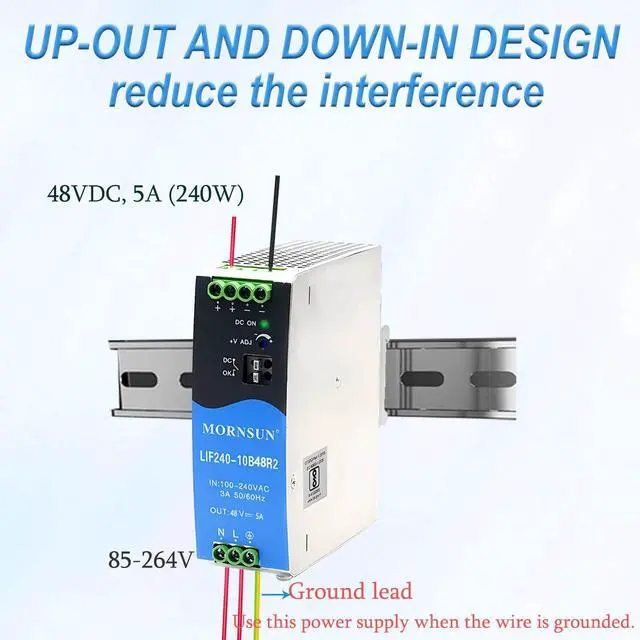

- Anti-interference capability: This 240W DIN rail power supply features a universal terminal for both AC and DC input, with bottom AC input and top DC output to enhance stability.

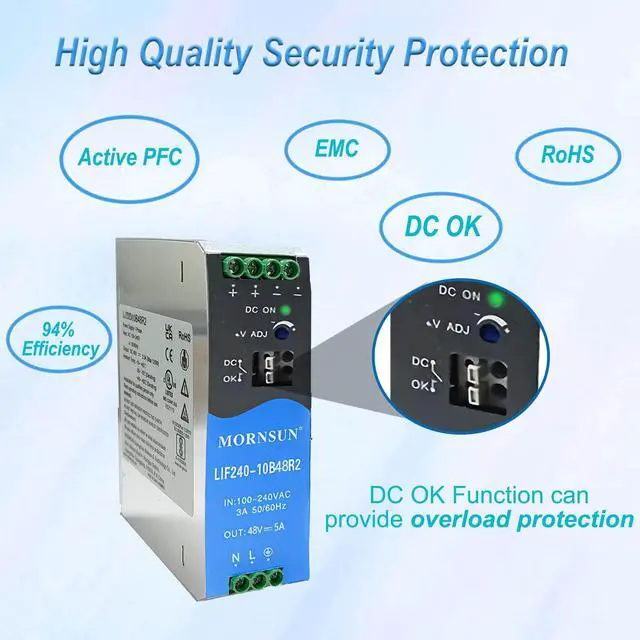

- DC OK Function: When the output DC is too low or too high, the circuit will be disconnected for overload protection, ensuring that the output DC is stable at 48VDC.
- Active PFC: This 240W power supply equips with active PFC and safety EMC, Making its efficiency up to 94%, efficient and safe.
- Anti-slip dual-layer gaskets: It has anti-slip dual-layer gaskets to resist shaking, ensuring the stability of DIN rail installation.

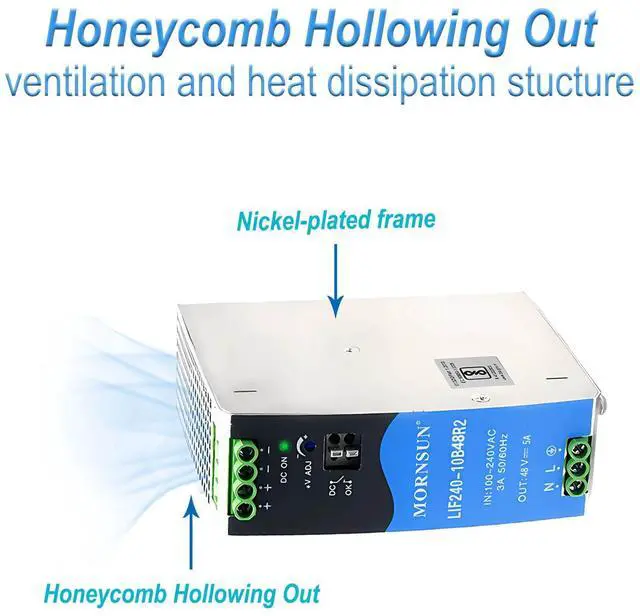

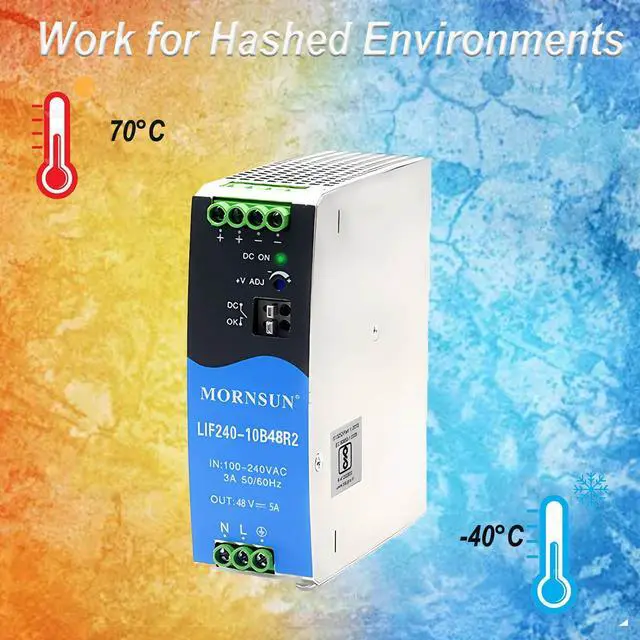

- -40degC--70degC: With the nickel-plated frame and top-bottom heat dissipation design, it can work for hashed environments ranging from -40 to 70degC.
+
+
Overview
Specs
Reviews
Overview:
The 240W DIN Rail Power Supply equips with DC OK Function and Active PFC, Providing overload protection and improved efficiency. It has a steady output of 5a, 48v DC. Besides, with the Din Rail and top-bottom heat dissipation design, it can save working space and adapt to hashed working temperatures.
Features: Input
voltage range: 85-264VAC/120-370VDC AC/DC (same terminal input)
Operating temperature range: -40to+70 94% efficiency and high reliability DC OK function Active PFC 150% peak power sustainable 3 seconds output Power start LED indicator Output short circuit, over current, over voltage, over temperature protection Suitable for 5000m altitude applications Overvoltage class II For indoor use IEC/UL/BSEN62368 and other certification standards
Input voltage range: 85-264VAC/120-370VDC
Rated output voltage and current: 48V/5A
Efficiency: 94%
DIN Rail type: Universal 35-DIN Rail, the rail need be grounded
Shell material: Metal
Size: 110 x 32 x 124 mm( 4.3 * 1.26 * 4.9 inch)
Weight: 450g ( 0.99 pounds)
Package:
240W DIN Rail Power*1
The 240W DIN Rail Power Supply equips with DC OK Function and Active PFC, Providing overload protection and improved efficiency. It has a steady output of 5a, 48v DC. Besides, with the Din Rail and top-bottom heat dissipation design, it can save working space and adapt to hashed working temperatures.
Features: Input
voltage range: 85-264VAC/120-370VDC AC/DC (same terminal input)
Operating temperature range: -40to+70 94% efficiency and high reliability DC OK function Active PFC 150% peak power sustainable 3 seconds output Power start LED indicator Output short circuit, over current, over voltage, over temperature protection Suitable for 5000m altitude applications Overvoltage class II For indoor use IEC/UL/BSEN62368 and other certification standards
Specifications
:Input voltage range: 85-264VAC/120-370VDC
Rated output voltage and current: 48V/5A
Efficiency: 94%
DIN Rail type: Universal 35-DIN Rail, the rail need be grounded
Shell material: Metal
Size: 110 x 32 x 124 mm( 4.3 * 1.26 * 4.9 inch)
Weight: 450g ( 0.99 pounds)
Package:
240W DIN Rail Power*1
