    FanyiTek USB C Type C HDMI Controller Board 40 pin for 15.6" 1920x1080 NV156FHM-T10 B156HAK03.0 B156HAK02.0 EDP IPS LCD Screen

    • Item #: 9SIVGCKKA59464
    • Mfr. Part #: 934832630893
    Be the first to review this product...
    • [(Type C board)] Work for 1920x1080 40pin EDP LCD screen .video input: Type-C Mini HD-MI,Output: eDP USB (max 500mA),Audio Output: Speaker
    • [(Compatible screen model no.)] 15.6 inch 1920x1080 40pin edp NV156FHM-T10 NV156FHM-T00 NV156FHM-T01 B156HAK03.0 touch screen
    • [(Input Power Adapter)] Type-C connector (PD 18W,Pls prepare by yourself)
    • [(Important)] The touch function can only be worked when the video resource (phone /laptop) which has the touch function .

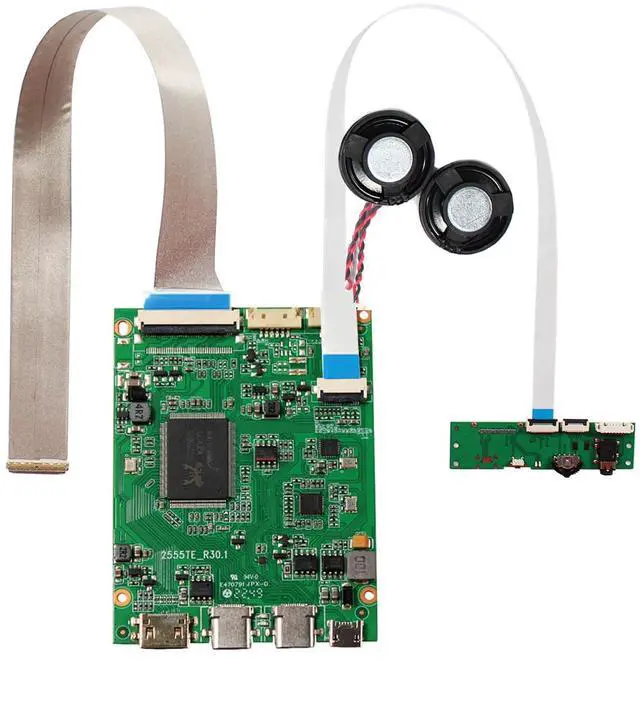

    • [(Packing lists)] 1x mini HD-MI TYPE C LCD Driver Board VS-RTD2556HC-V2 ,1x Signal Cable,1x Speaker,1x Keyboard With Cable
    +
    +
    Overview
    Specs
    Reviews

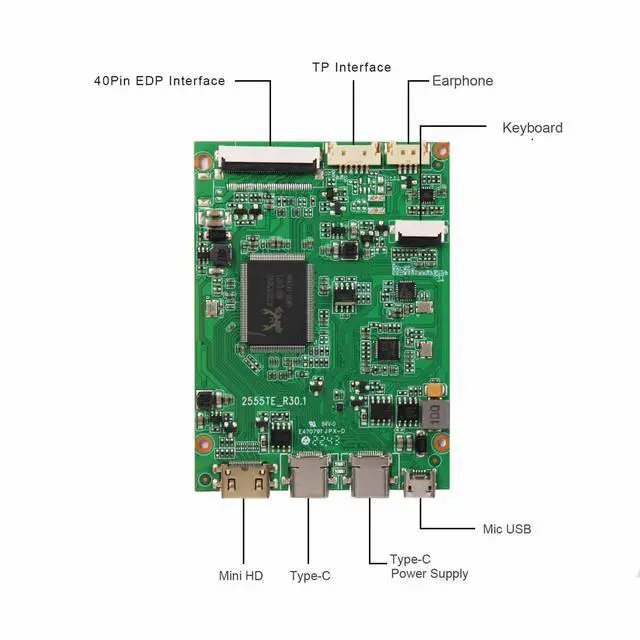

    LCD Controller Board:
    HD-MI Type C Control Board Work for 40Pin EDP LCD Screen
    Input Power Adapter: Type-C connector
    HDR: Support
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Input: Type-C Mini HD-MI
    Output: eDP USB (max 500mA)
    Audio Output: Speaker
    OSD: Brightness Contrast VOL+ VOL- Language And So On
    Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
    Nederlands Korean Japanese

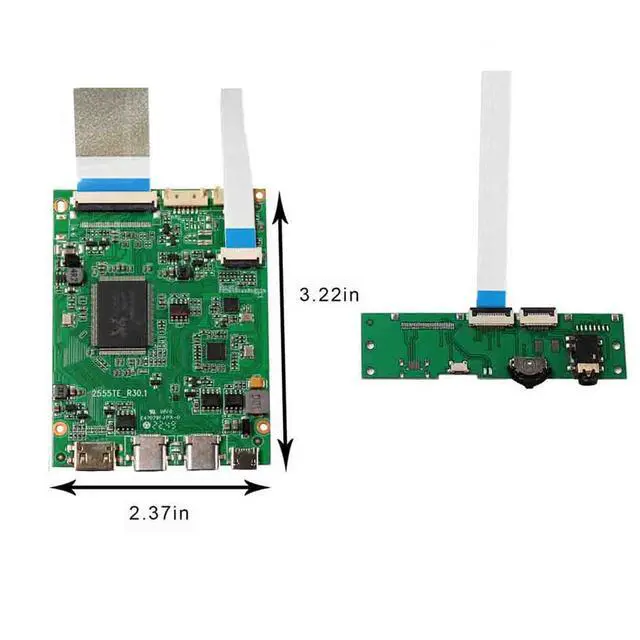

    Board Size: 126mm x 60mm x 4mm

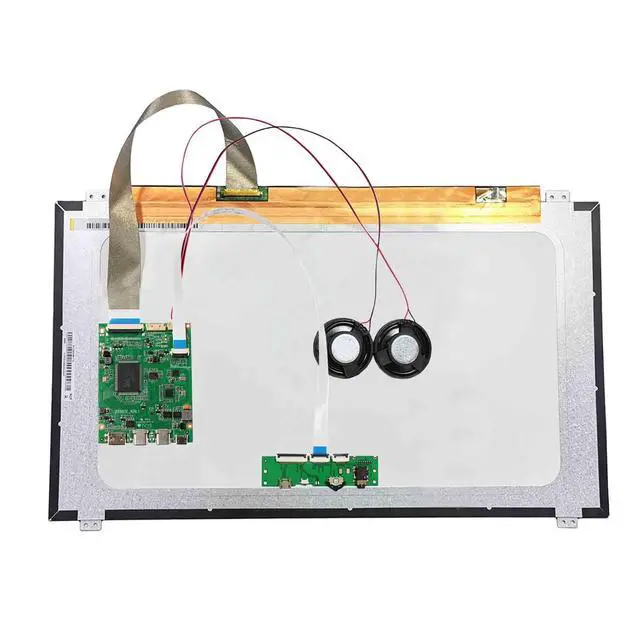

    Compatible Work With:
    15.6 inch1920x1080
    NV156FHM-T10 T00 T01 B156HAK 03.0

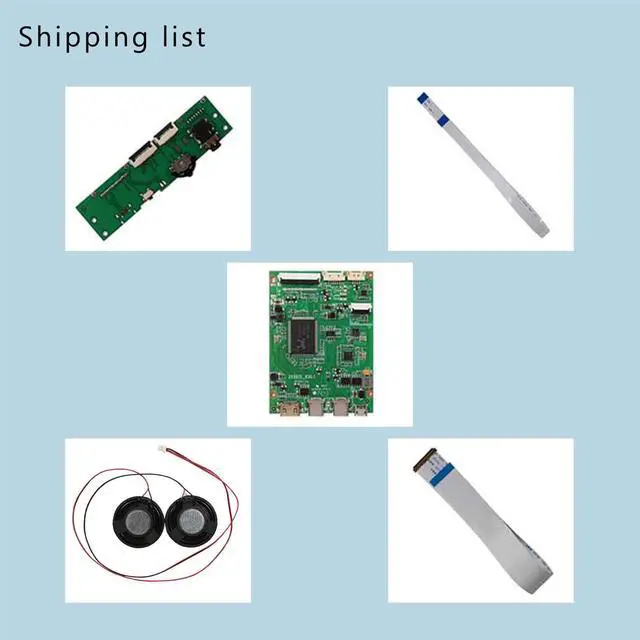

    Packing list:
    1x HD-MI TYPE-C LCD Controller Board VS-RTD2556HC-V2
    1x Signal Cable
    1x Speaker
    1x Keyboard With Cable
