    VSDISPLAY 15.6 Inch 1920x1080 FHD LCD Touchscreen Monitor 1000 Nits High Brightness with Wall Mounting Metal Case,Supports HD-MI USB Video Input for DIY Extra Outdoor/Gaming/Industrial Display

    • Item #: 9SIVGCKKBC5966
    • Mfr. Part #: 9482011093249
    Be the first to review this product...
    • [(15.6'' LCD)] Resolution 1920(RGB)x1080, FHD, 141PPI;16:9 aspect ratio 15.6 in LCD touch screen monitor;Contrast Ratio 700:1 (Typ.) (TM);Viewing Angle 70/70/60/60 (Typ.)(CR>=10)

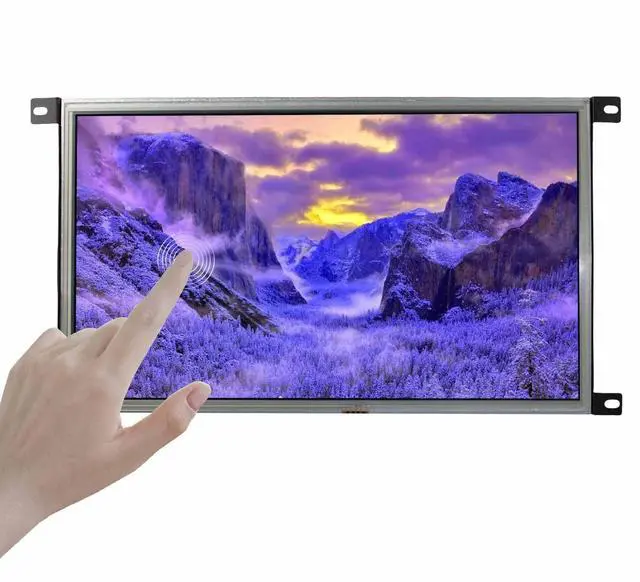

    • [(Touch Panel)] Resistive touch panel makes you easy to operate on LCD screen,without driver,just connect to USB touch cable then use directly

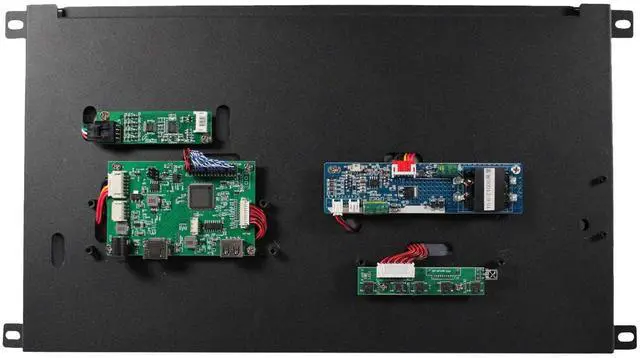

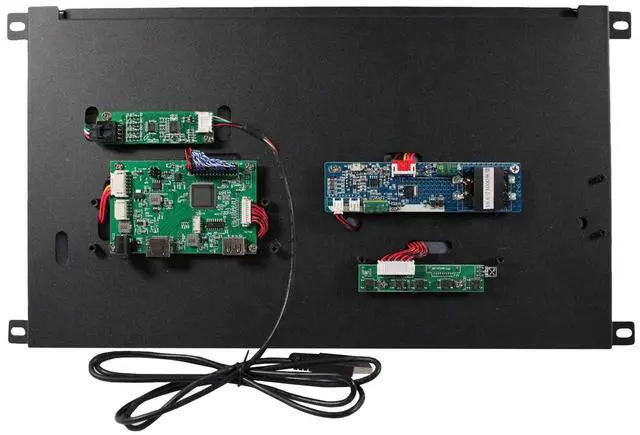

    • [(Feature)] 1000 nits high brightness,sunlight readable;Comes with mouting metal case,it's convenient to install
    • [(Application)] For DIY project,used as secondary display for pc/laptop/outdoor/industrial monitor
    • [(Packing List)] 1x 15.6" 1920x1080 1000nit Brightness Resistive Touch LCD Screen with HD-MI USB LCD Controller Board
    +
    +
    Overview
    Specs
    Reviews

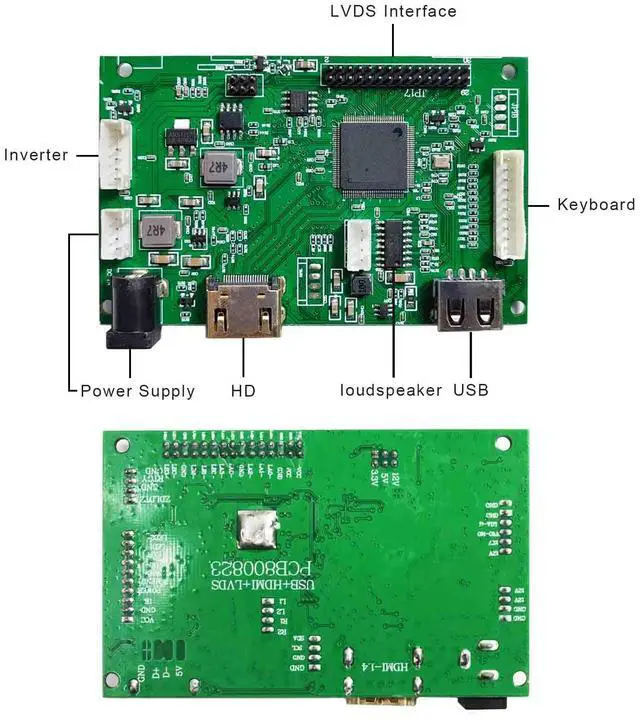

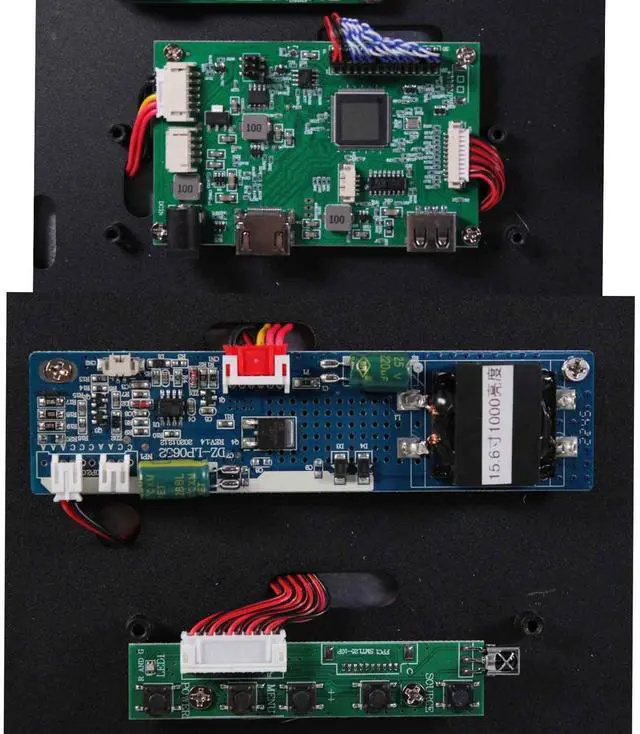

    LCD Controller Board:
    HD-MI. USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
    Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Voltage To LCD Panel: 3.3V 5V 12V ( Jumper optional)
    Video Input: HD-MI USB
    HD-MI: Support HD-MI 1.4
    USB: Support Video Playback, Picture Playback, Text Playback
    Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
    plugged into the USB of the driver board, the power can be upgraded, and it will automatically
    restart after completed)
    Audio: Speaker Support 8ohm 2W/ 4ohm 2W
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 90mm x 56mm x 14mm

    15.6" 1920X1080 Resistive Touch LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1920 (RGB) x1080, FHD, 141PPI
    Outline Size 363.8 (W) x 215.9 (H) x 12.5 (D) mm
    Display Area 344.16 (W) x 193.59 (H) mm
    Brightness 1000 cd/m2 (Typ. )
    Contrast Ratio 700:1 (Typ. ) (TM)
    Viewing Angle 70/70/60/60 (Typ. )(CR>=10)
    Signal Interface LVDS (2 ch, 8-bit), 30 pins Connector
    Input Voltage 3.3V (Typ. )
    Weight: 2500g/ 5.5LB

    Packing list:
    1x 15.6" 1920x1080 1000nit Brightness Resistive Touch LCD Screen with HD-MI USB LCD Controller Board
